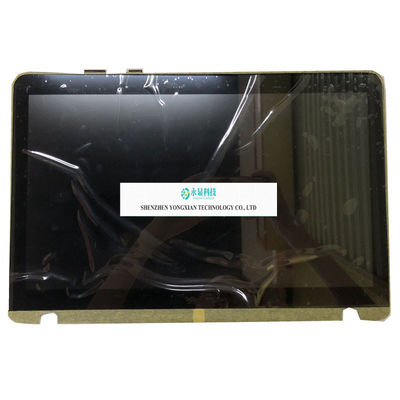

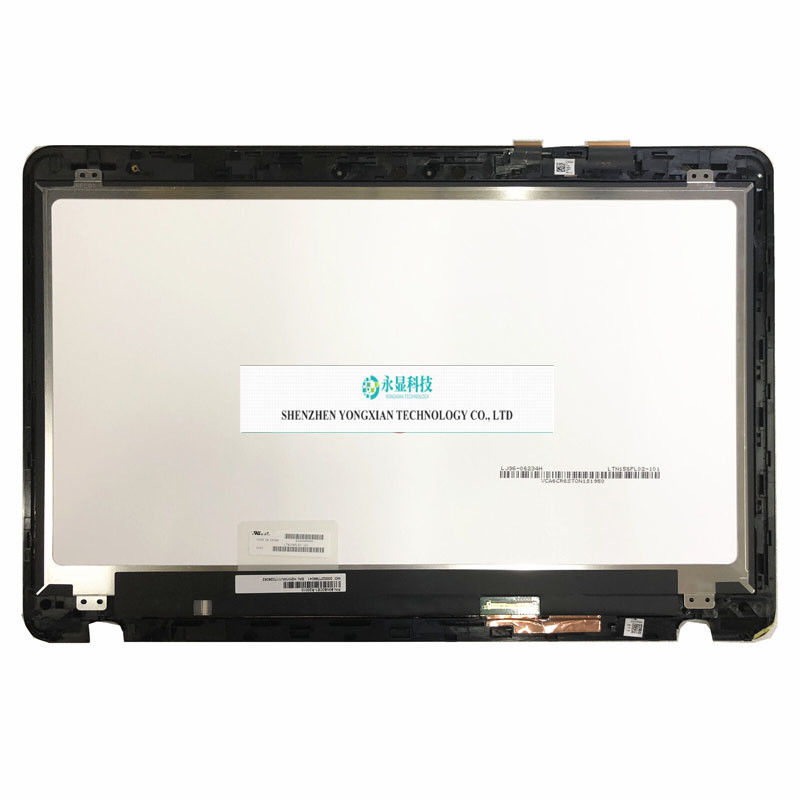

LTN156FL02-101 15.6 LCD Touch Screen Digitizer Assembly For ASUS UX560UX UX560
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Samsung |
| Model Number: | LTN156FL02-101 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 5 |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Brand: | Samsung | Model: | LTN156FL02-101 |
|---|---|---|---|
| Size: | 15.6 | Panel Type: | A-Si TFT-LCD,module |
| Resolution: | 3840(RG/BW)×2160, UHD, 231PPI | Pixel Layout: | RGB Vertical Stripe |
| Display Area: | 344.448(W)×193.752(H) Mm | Appearance Dimensions: | 359.5(W)×223.8(H)×3.08(D) Mm |
| Support Colors: | 16.7M , 72% NTSC | Surface Treatment Mirror: | Matte(Haze 25%)，Hard Coating (3H) |
| Brightness: | 330 Cd/m² (Typ.) | Contrast Ratio: | 700:1 (Typ.) (TM) |
| Viewing Angle: | 85/85/85/85 (Typ.)(CR＞10) | Working Mode: | PLS，Constant Black Display, Transmissive |
| Refresh Rate: | 60Hz | Touch Function: | No Touch |
| Appearance Style: | Thin Screen (PCBA Flat, Thickness ≤ 3.2mm) | Panel Application: | Notebook Computer |
| Voltage: | 3.3V (Typ.) | Maximum Rating: | 0 ~ 50 °C ; Storage Temperature:- 20 ~ 60 °C |
| Interface Type: | EDP (4 Lanes) , EDP1.3 , 40 Pins , Terminal, | ||
| Highlight: | 15.6 lcd touch screen,15.6 lcd touch panel,edp lcd touch panel |
||
Product Description
LTN156FL02-101 (Product Code: SDC434B is a 15.6-inch LCD module product launched by Samsung Display Co., Ltd. (Samsung) using a-Si TFT-LCD technology. It is equipped with WLED backlight, LED driver backlight driver, and touch free. According to the version number Rev. released by Samsung on April 14, 2016 The product specification for A02, LTN156FL02-101, has a display resolution of 3840 (RG/BW) × 2160 (UHD), an aspect ratio of 16:9 (width: height), and uses RG/BW LCD PenTile arrangement for pixels. The calculated pixel density is 231 PPI. Its display area size is 344.448 × 193.752 (width × height) mm, and its appearance size is 359.5 × 223.8 (width × height) × 3.08 (thickness) mm. The surface treatment is matte (Haze 25%), Hard coating (3H), and the net weight of the product is 290g (Max.). The appearance style is thin screen (PCBA flat, thickness ≤ 3.2mm). In terms of backlight, this product uses a 4S10P WLED side entry light source with a lifespan of 15K hours, including an LED driver. LTN156FL02-101 adopts eDP (4 Lanes) signal interface, with a total of 40 pins, connected by terminals, and a screen driving voltage of 3.3V (Typ.). Its typical vertical refresh rate Fv is 60Hz. And the parameters were finally updated on March 2, 2023. Its working temperature is 0~50 ° C, and its storage temperature is -20~60 ° C. Based on its white LED backlight, including LED driver, inverted terminals, and matte surface, Green UHD, eDP1.3 and other features, this model is recommended for use in laptops.
