LED LCD Display Computer Flat Screen Monitor 40 PIN LP140WFB-SPK2 LP140WFB-SPK1
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | LG |
| Model Number: | LP140WFB-SPK2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 5 |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Brand: | LG | Model: | LP140WFB-SPK2 |
|---|---|---|---|
| Size: | 14.0 | Panel Type: | A-Si TFT-LCD,module |
| Resolution: | 1920(RGB)×1080, FHD, 157PPI | Pixel Layout: | RGB Vertical Stripe |
| Display Area: | 309.31(W)×173.99(H) Mm | Appearance Dimensions: | 315.81(W)×186.07(H)×3.1(D) Mm |
| Support Colors: | 262K , 45% NTSC | Surface Treatment Mirror: | Matte，Hard Coating (3H) |
| Brightness: | 300 Cd/m² (Typ.) | Contrast Ratio: | 700 : 1 (Typ.) [Transmission] |
| Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) | Working Mode: | IPS， Constant Black Display, Transmissive |
| Refresh Rate: | 60Hz | Touch Function: | In-Cell Touch, USB |
| Appearance Style: | Thin Screen (PCBA Flat, Thickness ≤ 3.2mm) | Panel Application: | Notebook Computer |
| Voltage: | 3.3V (Typ.) | Maximum Rating: | Storage Temperature:- 20~60 ° C Operating Temperature: 0 ~ 50 °C |
| Interface Type: | 40 Pins EDP (2 Lanes) , EDP1.2 , HBR1 (2.7G/lane) , Terminal, | ||
| Highlight: | 300cd/m2 computer flat screen monitor,computer flat screen monitor 40 PIN,LP140WFB-SPK2 |
||
Product Description

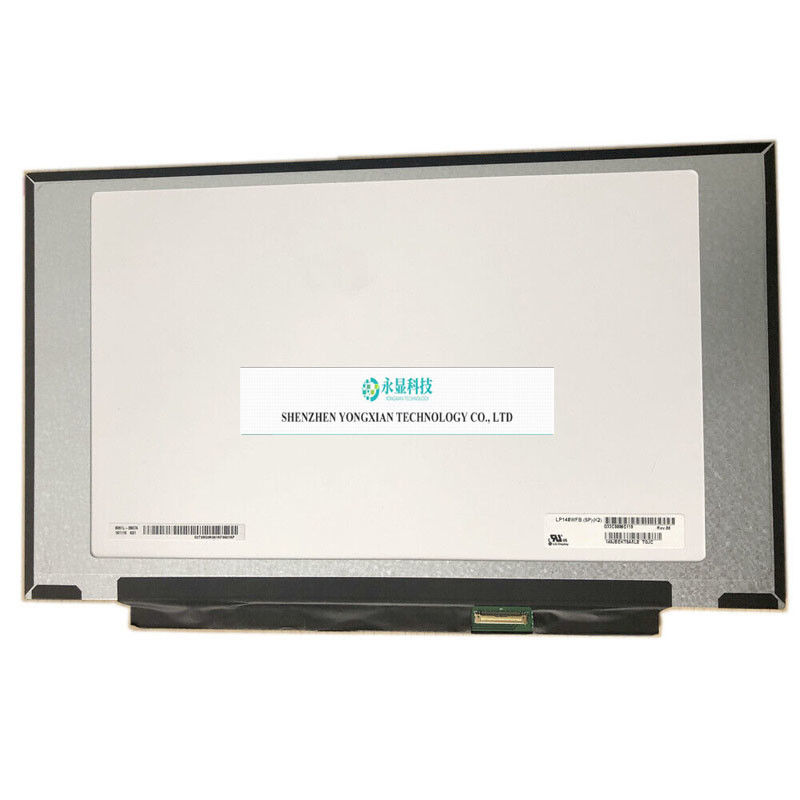

LP140WFB-SPK2 LP140WFB-SPK1 LED LCD Display Screen Matrix 40 PIN
LP140WFB-SPK2 (alias: LP140WFB (SP) (K2)) (Product Code: LGD0628 is a 14.0-inch LCD module product launched by LG Display Corporation (LG Display) using a-Si TFT-LCD technology. It is equipped with WLED backlight and includes LED driver backlight driver, In-Cell Touch. According to the product specification sheet with version number Ver0.0 released by LG Display on February 26, 2019, the LP140WFB-SPK2 has a display resolution of 1920 (RGB) × 1080 (FHD), an aspect ratio of 16:9 (width: height), and pixels arranged in RGB vertical stripes. Its display area size is 309.31 × 173.99 (width × height) mm, and its appearance size is 315.81 × 186.07 (width × height) × 3.1 (thickness) mm. The surface treatment is matte, Hard coating (3H), The net weight of the product is 280g (Max.), and the appearance style is thin screen (PCBA flat, thickness ≤ 3.2mm). In terms of backlight, this product adopts a WLED side entry light source with a lifespan of 15K hours and includes an LED driver. LP140WFB-SPK2 adopts eDP (2 Lanes) signal interface, with a total of 40 pins, connected by terminals, and a screen driving voltage of 3.3V (Typ.). Its typical vertical refresh rate Fv is 60Hz. And the parameters were finally updated on August 8, 2023. Its working temperature is 0~50 ° C, and its storage temperature is -20~60 ° C. Based on its touch screen, white LED backlight, LED driver, inverted terminals, and matte surface, EDP1.2, DPCD Ver1.1, sDRRS, SSC and other features are recommended for use in laptops.
Packing & Shipping
Trading Process
FAQ
1.Can I purchase the products in 1 piece?
Yes,you can,but we do not recommend,because the shipping cost is very high.
2.What payment method can I use?
T/T is the best,we aslo accpet Paypal
3.When is the shipment?
Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment,
and will use third parties delivery services or delivered as clients request.
4.How long is the warranty period?
12 Months
5.How to do if there is a product quality problem?
Please contact the relevant sales as soon as possible.
