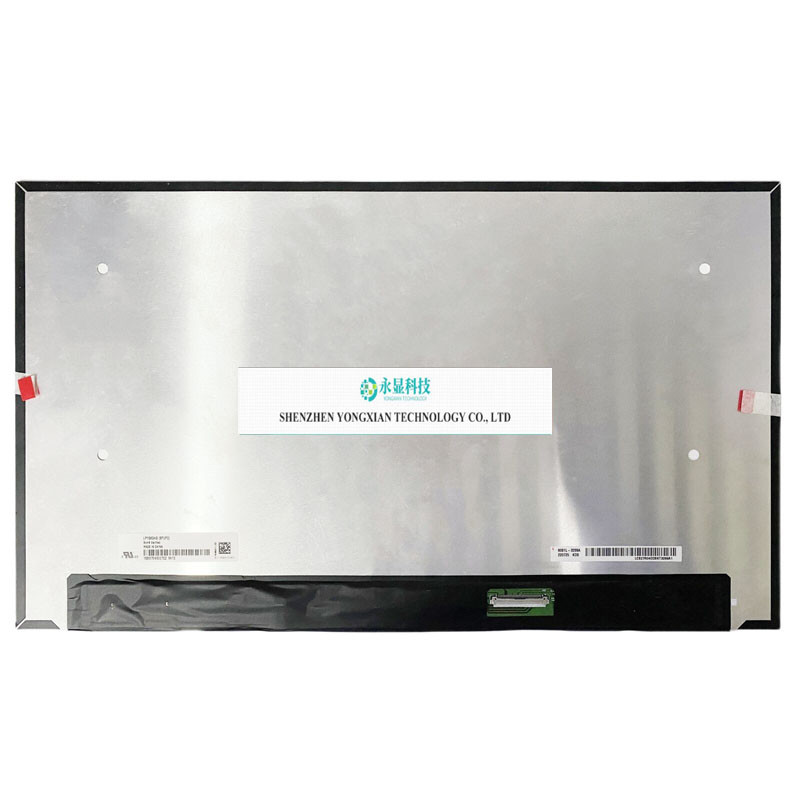

RGB 188PPI Laptop LCD Touch Screen Module LP156QHG-SPP2 Matrix 15.6 Inch
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | LG |
| Model Number: | LP156QHG-SPP2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 5 |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Brand: | LG | Model: | LP156QHG-SPP2 |
|---|---|---|---|
| Size: | 15.6 | Panel Type: | A-Si TFT-LCD,module |
| Resolution: | 2560(RGB)×1440, Quad-HD, 188PPI | Pixel Layout: | RGB Vertical Stripe |
| Display Area: | 344.22(W)×193.62(H) Mm | Appearance Dimensions: | 350.66(W)×206.1(H)×4.6(D) Mm |
| Support Colors: | 16.7M , 100% SRGB | Surface Treatment Mirror: | Matte，Hard Coating (3H) |
| Brightness: | 300 Cd/m² (Typ.) | Contrast Ratio: | 1000 : 1 (Typ.) [Transmission] |
| Viewing Angle: | 80/80/80/80 (Min.)(CR≥10) | Working Mode: | IPS， Constant Black Display, Transmissive |
| Refresh Rate: | 120Hz | Touch Function: | No Touch |
| Appearance Style: | Thin Screen (PCBA Bent, Thickness ≤ 3.0mm) | Panel Application: | Notebook Computer |
| Voltage: | 3.3V (Typ.) | Maximum Rating: | Storage Temperature:- 20~60 ° C Operating Temperature: 0 ~ 50 °C |
| Interface Type: | 40 Pins EDP (4 Lanes) , EDP1.4b , HBR3 (8.1G/lane) , Terminal, | ||
| Highlight: | RGB touch screen module,188PPI touch screen module,LP156QHG SPP2 |
||
Product Description
LP156QHG-SPP2 LP156QHG (SP)(P2) Laptop LCD screen Panel Matrix 15.6 inch
LP156QHG-SSPP2 (alias: LP156QHG (SP) (P2)) (Product Code: LGD076B is a 15.6-inch a-Si TFT-LCD LCD module product launched by LG Display. It is equipped with WLED backlight, LED driver backlight driver, and touch free. The working temperature of this product is 0-50 ° C, the storage temperature is -20~60 ° C, and the vibration resistance is 1.0G (9.8 m/s ²). Its typical feature screen library is summarized as follows: sRGB,120Hz, White LED backlight, including LED driver, inverted terminal, surface matte, AMD FreeSync, LBL, LED Dimming Control mode:DC Dimming, eDP1.4b, SPR2, Free-sync. Based on its features, this model is recommended for use in laptops, games, and other products. The parameters were finally updated on August 7th, 2024. According to the product specification sheet with version number Ver1.0 released by LG Display on January 30, 2023, the LP156QHG-SSPP2 has a display resolution of 2560 (RGB) × 1440 (Quad HD), an aspect ratio of 16:9 (width: height), and pixels arranged in RGB vertical stripes. Its display area size is 344.22 (width) × 193.62 (height) mm, and its appearance size is 350.66 (width) × 206.1 (height) × 4.6 (thickness) mm. The surface treatment is matte, Hard coating (3H), The net weight of the product is 280g (Max.), and the appearance style is thin screen (PCBA bent, thickness ≤ 3.0mm). In terms of backlight, this product adopts a WLED side entry light source with a lifespan of 15K hours and includes an LED driver. LP156QHG-SSPP2 adopts eDP (4 Lanes) signal interface, with a total of 40 pins, terminal connection, and a screen driving voltage of 3.3V (Typ.). Its typical vertical refresh rate Fv is 120Hz.
Packing & Shipping
Trading Process
FAQ
1.Can I purchase the products in 1 piece?
Yes,you can,but we do not recommend,because the shipping cost is very high.
2.What payment method can I use?
T/T is the best,we aslo accpet Paypal
3.When is the shipment?
Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment,
and will use third parties delivery services or delivered as clients request.
4.How long is the warranty period?
12 Months
5.How to do if there is a product quality problem?
Please contact the relevant sales as soon as possible.
