LTN141BT04 002 001 fit LP141WP2 TLB1 For IBM Lenovo Laptop LCD LED Screen
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Samsung |
| Model Number: | LTN141BT04 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 5 |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Brand: | Samsung | Model: | LTN141BT04 |
|---|---|---|---|
| Size: | 14.1 | Panel Type: | A-Si TFT-LCD,module |
| Resolution: | 1440(RGB)×900, WXGA+ | Pixel Layout: | RGB Vertical Stripe |
| Display Area: | - | Appearance Dimensions: | - |
| Support Colors: | 262K | Surface Treatment Mirror: | - |
| Brightness: | - | Contrast Ratio: | - |
| Viewing Angle: | - | Working Mode: | TN,Constant Black Display, Transmissive |
| Refresh Rate: | 60Hz | Touch Function: | No Touch |
| Appearance Style: | - | Panel Application: | Notebook Computer |
| Voltage: | - | Maximum Rating: | - |
| Interface Type: | LVDS (2 Ch, 6-bit) | ||
| Highlight: | LTN141BT04 Lenovo Laptop LCD LED Screen,LTN141BT04 LCD LED Screen,Lenovo Laptop LCD LED Screen |
||
Product Description

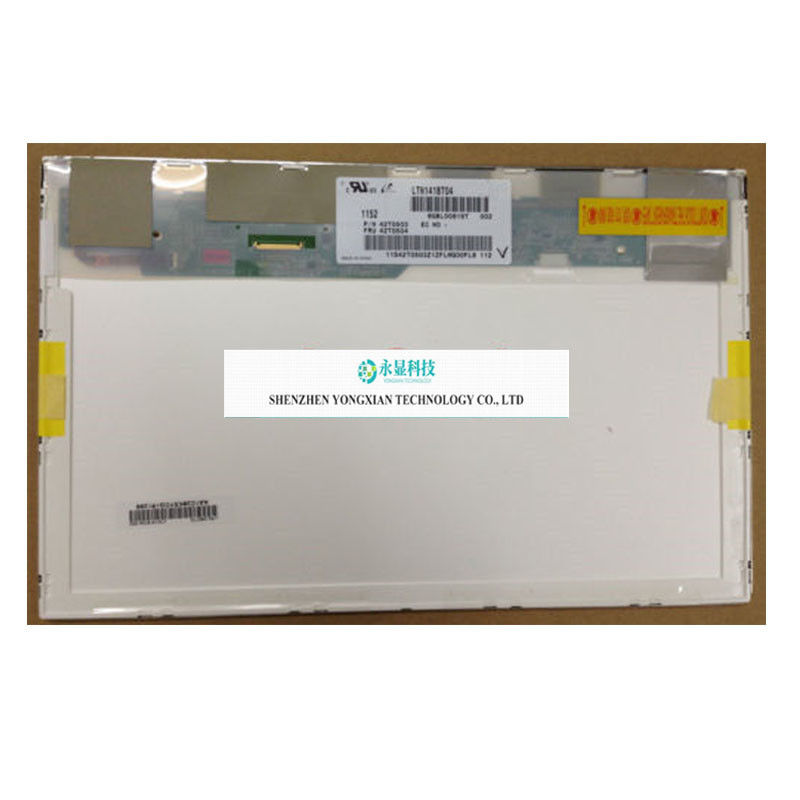

LTN141BT04-001 is a 14.1-inch LCD module product launched by Samsung Display Co., Ltd., which uses a-Si TFT-LCD technology and is equipped with WLED backlight. LTN141BT04-001 has a display resolution of 1440 (RGB) × 900 (WXGA+), an aspect ratio of 16:10 (width: height), and pixels arranged in a vertical RGB stripe pattern.. In terms of backlight, this product adopts a WLED side entry light source. LTN141BT04-001 adopts LVDS (2 ch, 6-bit) signal interface. Its typical vertical refresh rate Fv is 60Hz. On January 5th, 2011, parameters were first established for this model. Based on its features such as white light LED backlight, this model is recommended for use in laptops.
Packing & Shipping
Trading Process
FAQ
1.Can I purchase the products in 1 piece?
Yes,you can,but we do not recommend,because the shipping cost is very high.
2.What payment method can I use?
T/T is the best,we aslo accpet Paypal
3.When is the shipment?
Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment,
and will use third parties delivery services or delivered as clients request.
4.How long is the warranty period?
12 Months
5.How to do if there is a product quality problem?
Please contact the relevant sales as soon as possible.
