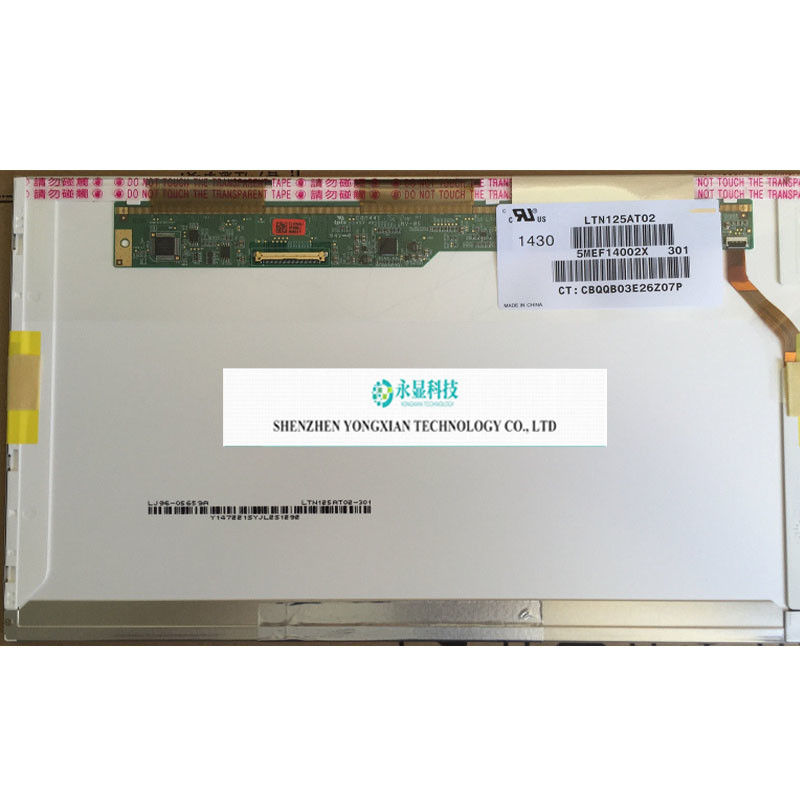

LTN125AT02 fit B125XW02 V.0 LP125WH1 40 PIN LCD Laptop LED Display Screen NEW
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Samsung |
| Model Number: | LTN125AT02 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 5 |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Brand: | Samsung | Model: | LTN125AT02 |
|---|---|---|---|
| Size: | 12.5 | Panel Type: | A-Si TFT-LCD,module |
| Resolution: | 1366(RGB)×768, WXGA, 125PPI | Pixel Layout: | RGB Vertical Stripe |
| Display Area: | 276.615(W)×155.52(H) Mm | Appearance Dimensions: | - |
| Support Colors: | 262K | Surface Treatment Mirror: | - |
| Brightness: | - | Contrast Ratio: | - |
| Viewing Angle: | - | Working Mode: | TN,Constant Black Display, Transmissive |
| Refresh Rate: | 60Hz | Touch Function: | No Touch |
| Appearance Style: | - | Panel Application: | Notebook Computer |
| Voltage: | - | Maximum Rating: | 0 ~ 50 °C ; - |
| Interface Type: | LVDS (1 Ch, 6-bit) ,Terminal, | ||
| Highlight: | lcd laptop led display,40 pin laptop led display,40 pin lcd led screen display |
||
Product Description
LTN125AT02-301 is a 12.5-inch a-Si TFT-LCD LCD module product launched by Samsung, which is equipped with WLED backlight. The working temperature of this product is between 0 and 50 ° C. Its typical features are summarized as: white LED backlight. Based on its features, this model is recommended for use in laptops and other products. On March 1, 2013, parameters were first established for this model. The display resolution of LTN125AT02-301 is 1366 (RGB) × 768 (WXGA), with an aspect ratio of 16:9 (width: height), and pixels arranged in a vertical RGB stripe pattern. Its display area size is 276.615 (width) × 155.52 (height) mm. In terms of backlight, this product adopts a WLED side entry light source. LTN125AT02-301 adopts LVDS (1 ch, 6-bit) signal interface and terminal connection. Its typical vertical refresh rate Fv is 60Hz.
Packing & Shipping
Trading Process
FAQ
1.Can I purchase the products in 1 piece?
Yes,you can,but we do not recommend,because the shipping cost is very high.
2.What payment method can I use?
T/T is the best,we aslo accpet Paypal
3.When is the shipment?
Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment,
and will use third parties delivery services or delivered as clients request.
4.How long is the warranty period?
12 Months
5.How to do if there is a product quality problem?
Please contact the relevant sales as soon as possible.
