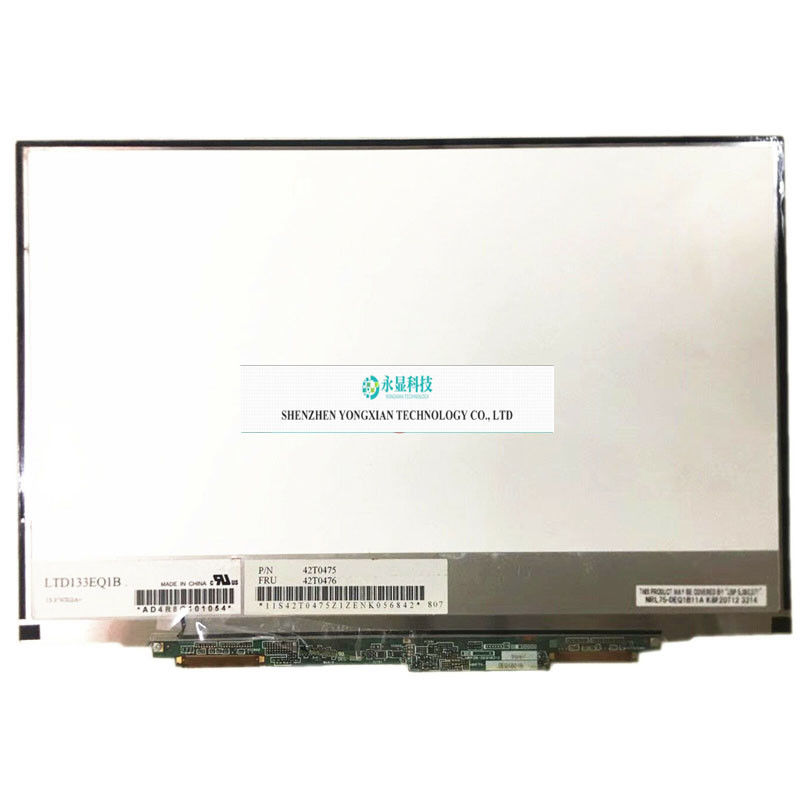

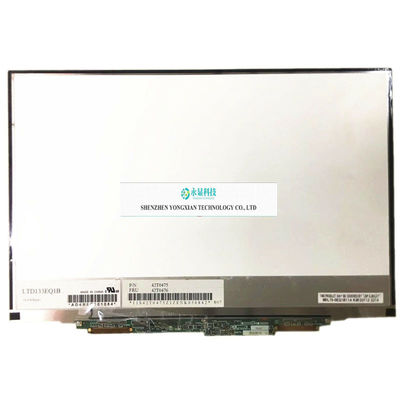

LTD133EQ1B New Original for Lenovo ThinkPad X300 X301 LCD LED Screen Panel
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Toshiba |
| Model Number: | LTD133EQ1B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 5 |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Brand: | Toshiba | Model: | LTD133EQ1B |
|---|---|---|---|
| Size: | 13.3 | Panel Type: | LTPS TFT-LCD, Module |
| Resolution: | 1440(RGB)×900, WXGA+, 127PPI | Pixel Layout: | RGB Vertical Stripe |
| Display Area: | 286.2(W)×178.875(H) Mm | Appearance Dimensions: | 296(W)×205(H)×3.3(D) Mm |
| Support Colors: | 262K , 48% NTSC | Surface Treatment Mirror: | Matte，Hard Coating (2H) |
| Brightness: | 300 Cd/m² (Typ.) | Contrast Ratio: | 250:1 (Typ.) (Transmission) |
| Viewing Angle: | 45/45/20/40 (Typ.)(CR≥10) | Working Mode: | TN， Constant Black Display, Transmissive |
| Refresh Rate: | 60Hz | Touch Function: | No Touch, |
| Appearance Style: | Thin Screen (PCBA Flat, Thickness ≤ 3.2mm) | Panel Application: | Notebook Computer |
| Voltage: | 3.3V (Typ.) | Maximum Rating: | Storage Temperature:- 20~60 ° C Operating Temperature: 0 ~ 50 °C |
| Interface Type: | 40 Pins LVDS (1 Ch, 6-bit) , Terminal, | ||
| Highlight: | lcd laptop screen,led laptop screen,led laptop lcd screen |
||
Product Description
LTD133EQ1B is a 13.3-inch LCD module product launched by Toshiba Matsushita, which adopts LTPS TFT-LCD technology. It is equipped with WLED backlight, LED driver backlight driver, and touch free. According to the product specification sheet with version number Rev.14 released by Toshiba Matsushita on May 23, 2008, the LTD133EQ1B has a display resolution of 1440 (RGB) × 900 (WXGA+), an aspect ratio of 16:10 (width: height), and pixels arranged in RGB vertical stripes. Its display area size is 286.2 × 178.875 (width × height) mm, and its appearance size is 296 × 205 (width × height) × 3.3 (thickness) mm. The surface treatment is matte, and the Hard coating (2H) appearance style is thin screen (PCBA flat, thickness ≤ 3.2mm). In terms of backlight, this product adopts a WLED side entry light source with a lifespan of 10K hours, including an LED driver. LTD133EQ1B adopts LVDS (1 ch, 6-bit) signal interface, with a total of 40 pins, terminal connection, and a screen driving voltage of 3.3V (Typ.). Its typical vertical refresh rate Fv is 60Hz. And the parameters were finally updated on August 17, 2023. Its working temperature is 0~50 ° C, and its storage temperature is -20~60 ° C. Based on its white LED backlight, LED driver, and matte surface, this model is recommended for use in laptops.
Packing & Shipping
Trading Process
FAQ
1.Can I purchase the products in 1 piece?
Yes,you can,but we do not recommend,because the shipping cost is very high.
2.What payment method can I use?
T/T is the best,we aslo accpet Paypal
3.When is the shipment?
Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment,
and will use third parties delivery services or delivered as clients request.
4.How long is the warranty period?
12 Months
5.How to do if there is a product quality problem?
Please contact the relevant sales as soon as possible.
