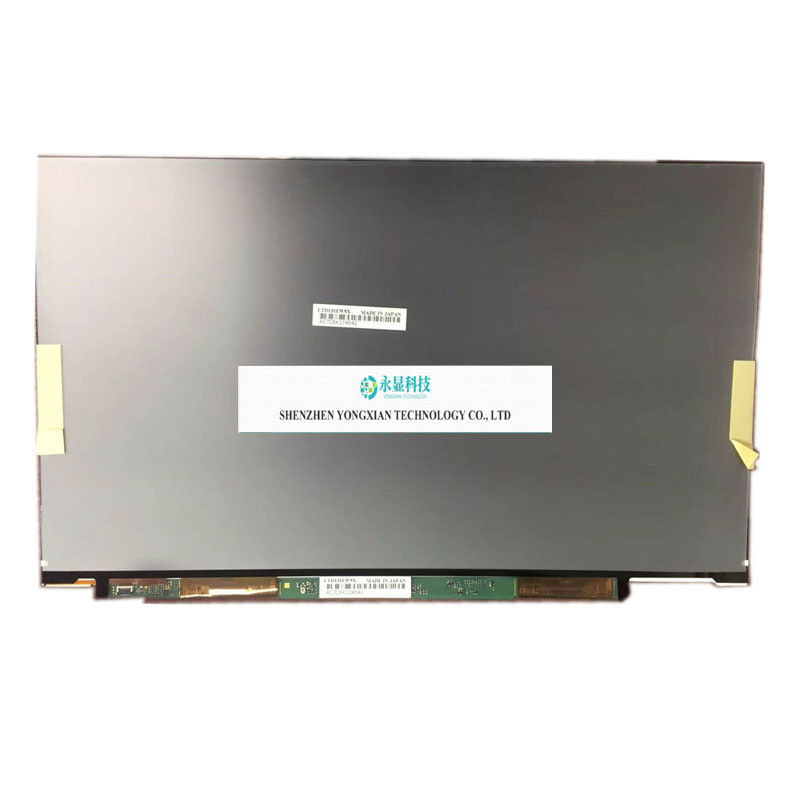

LTD131EWSX 13.1 LED LCD Screen Slim Display Panel Matrix Replacement 1366X768
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Toshiba |
| Model Number: | LTD131EWSX |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 5 |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Brand: | Toshiba | Model: | LTD131EWSX |
|---|---|---|---|
| Size: | 13.1 | Panel Type: | LTPS TFT-LCD,,module |
| Resolution: | 1366(RGB)×768, WXGA, 120PPI | Pixel Layout: | RGB Vertical Stripe |
| Display Area: | 288.9(W)×162.4(H) Mm | Appearance Dimensions: | - |
| Support Colors: | 262K | Surface Treatment Mirror: | - |
| Brightness: | - | Contrast Ratio: | - |
| Viewing Angle: | - | Working Mode: | TN，Constant Black Display, Transmissive |
| Refresh Rate: | 60Hz | Touch Function: | No Touch |
| Appearance Style: | - | Panel Application: | Notebook Computer |
| Voltage: | 3.3V (Typ.) | Maximum Rating: | Storage Temperature:- 20~60 ° C Operating Temperature: 0 ~ 50 °C |
| Interface Type: | LVDS (1 Ch, 6-bit) , Terminal, | ||
| Highlight: | tft led lcd screen,262k led lcd screen,tft lcd led screen display |
||
Product Description
LTD131EWSX is a 13.1-inch LTPS TFT-LCD LCD module product launched by Toshiba Matsushita, which is equipped with WLED backlight and touch free. The working temperature of this product is 0~50 ° C, and the storage temperature is -20~60 ° C. Its typical feature screen library is summarized as: white LED backlight, for SONY VAIO VGN-Z Series. The parameters were finally updated on November 19, 2014. The LTD131EWSX has a display resolution of 1366 (RGB) × 768 (WXGA), an aspect ratio of 16:9 (width: height), and pixels arranged in vertical RGB stripes. Its display area size is 288.9 (width) × 162.4 (height) mm. In terms of backlight, this product adopts a WLED side entry light source. LTD131EWSX adopts LVDS (1 ch, 6-bit) signal interface and terminal connection. Its typical vertical refresh rate Fv is 60Hz.
