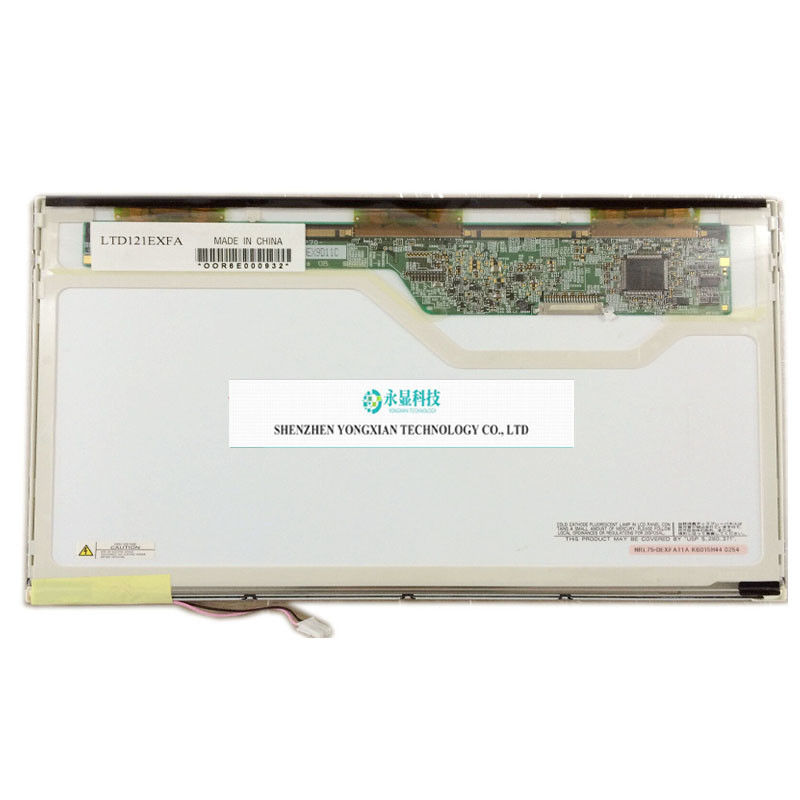

LTD121EXFA fit N121I2-L01 Rev C1 20 PIN XF 12.1 inch Laptop LCD Screen Panel
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Toshiba |
| Model Number: | LTD121EXFA |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 5 |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Brand: | Toshiba | Model: | LTD121EXFA |
|---|---|---|---|
| Size: | 12.1 | Panel Type: | LTPS TFT-LCD,,module |
| Resolution: | 1280(RGB)×768, WXGA, 123PPI | Pixel Layout: | RGB Vertical Stripe |
| Display Area: | 263.04(W)×157.824(H) Mm | Appearance Dimensions: | 275(W)×173.5(H)×5.2(D) Mm |
| Support Colors: | 262K | Surface Treatment Mirror: | Mirror Face(Haze 0%)，Hard Coating (3H) |
| Brightness: | 200 Cd/m² (Typ.) | Contrast Ratio: | 600:1 (Typ.) (TM) |
| Viewing Angle: | - | Working Mode: | TN，Constant Black Display, Transmissive |
| Refresh Rate: | 60Hz | Touch Function: | No Touch |
| Appearance Style: | Thick Screen (PCBA Bent, Thickness ≥ 5.2mm) | Panel Application: | Notebook Computer |
| Voltage: | 3.3V (Typ.) | Maximum Rating: | Storage Temperature:- 20~60 ° C Operating Temperature: 0 ~ 50 °C |
| Interface Type: | LVDS (1 Ch, 6-bit) , 20 Pins , Terminal, | ||
| Highlight: | tft lcd screen panel,262k lcd screen panel,tft lcd laptop screen |
||
Product Description
The LTD121EXFA launched by Toshiba Matsushita is a 12.1-inch LCD module product using LTPS TFT-LCD technology. It is equipped with CCFL backlight, no backlight driver, and no touch. The typical feature of the screen library is its mirror like surface. Its working temperature is 0~50 ° C, and its storage temperature is -20~60 ° C. This model is suitable for use in laptops. And the parameters were finally updated on August 18, 2023. According to the product specification document Ver0.2 released by Toshiba Matsushita on September 15, 2005, the LTD121EXFA has a display resolution of 1280 (RGB) × 768 (WXGA), an aspect ratio of 15:9 (width: height), and RGB vertical stripe arrangement of pixels. Its display area size is 263.04 × 157.824 (width × height) mm, visible size is 267.9 × 162.9 (width × height) mm, appearance size is 275 (width) × 173.5 (height) × 5.2 (thickness) mm, surface treatment is mirror (Haze 0%), Hard coating (3H), product net weight is 265g (Typ.), appearance style is thick screen (PCBA bent, thickness ≥ 5.2mm). In terms of backlight, this product uses 1 piece of CCFL emitting side entry light source (bottom), without backlight driver. LTD121EXFA adopts LVDS (1 ch, 6-bit) signal interface, with a total of 20 pins, connected by terminals, and a screen driving voltage of 3.3V (Typ.). Its typical vertical refresh rate Fv is 60Hz.
