60Hz IPS Laptop Screen 1920x1080 LCD Screen Panel Matrix Display LQ133M1JW47
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Sharp |
| Model Number: | LQ133M1JW47 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 5 |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Brand: | Sharp | Model: | LQ133M1JW47 |
|---|---|---|---|
| Size: | 13.3 | Panel Type: | Oxide TFT-LCD, Module |
| Resolution: | 1920(RGB)×1080, FHD, 166PPI | Pixel Layout: | RGB Vertical Stripe |
| Display Area: | 293.76(W)×165.24(H) Mm | Appearance Dimensions: | - |
| Support Colors: | 16.7M | Surface Treatment Mirror: | - |
| Brightness: | - | Contrast Ratio: | 1000 : 1 (Typ.) [Transmission] |
| Viewing Angle: | 88/88/88/88 (Typ.)(CR≥10) | Working Mode: | IPS， Constant Black Display, Transmissive |
| Refresh Rate: | 60Hz | Touch Function: | No Touch, |
| Appearance Style: | Thin Screen (PCBA Bent, Thickness ≤ 3.0mm) | Panel Application: | Notebook Computer |
| Voltage: | - | Maximum Rating: | Storage Temperature:- 20~60 ° C Operating Temperature: 0 ~ 50 °C |
| Interface Type: | EDP , 30 Pins , Terminal, | ||
| Highlight: | IPS Laptop Screen,60Hz LCD Screen Panel,LQ133M1JW47 |
||
Product Description

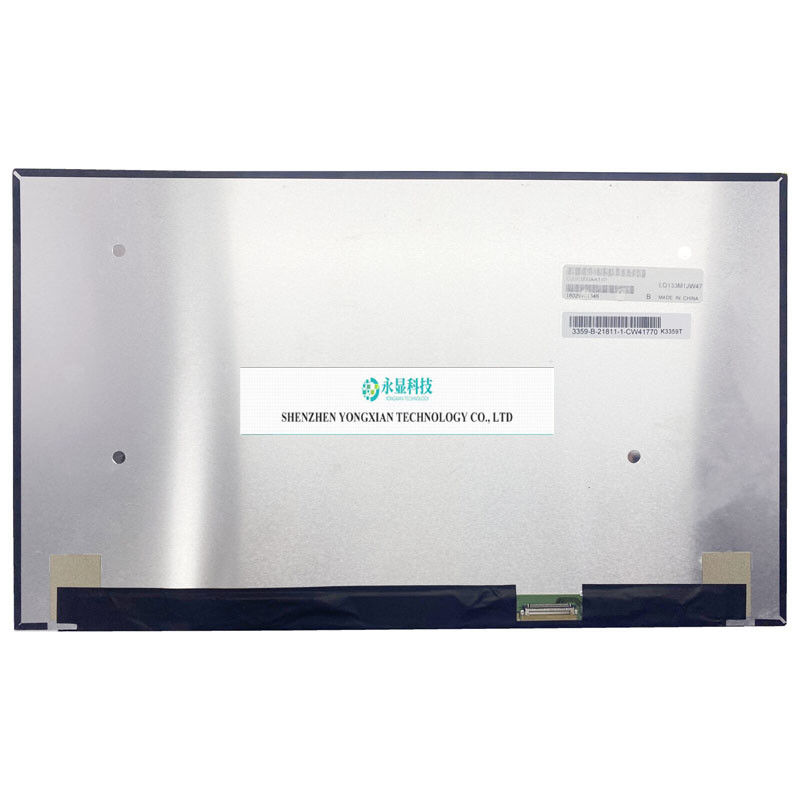

LQ133M1JW47 1920x1080 LCD Screen Panel Matrix Display NEW IPS
LQ133M1JW47 is a 13.3-inch Oxide TFT-LCD LCD module product launched by Sharp. It is equipped with WLED backlight, LED driver backlight driver, and touch free. The working temperature of this product is 0~50 ° C, and the storage temperature is -20~60 ° C. Its typical features are summarized as: white LED backlight, including LED driver, and inverted terminals. Based on its features, this model is recommended for use in laptops and other products. And the parameters were finally updated on August 13, 2022. The LQ133M1JW47 has a display resolution of 1920 (RGB) × 1080 (FHD), an aspect ratio of 16:9 (width: height), and pixels arranged in vertical RGB stripes. Its display area size is 293.76 (width) × 165.24 (height) mm, and its appearance style is a thin screen (PCBA bent, thickness ≤ 3.0mm). In terms of backlight, this product adopts a WLED side entry light source with LED driver. LQ133M1JW47 adopts eDP signal interface, with a total of 30 pins, connected by terminals. Its typical vertical refresh rate Fv is 60Hz
Packing & Shipping
Trading Process
FAQ
1.Can I purchase the products in 1 piece?
Yes,you can,but we do not recommend,because the shipping cost is very high.
2.What payment method can I use?
T/T is the best,we aslo accpet Paypal
3.When is the shipment?
Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment,
and will use third parties delivery services or delivered as clients request.
4.How long is the warranty period?
12 Months
5.How to do if there is a product quality problem?
Please contact the relevant sales as soon as possible.
