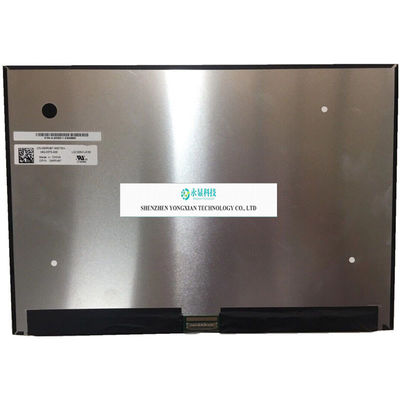

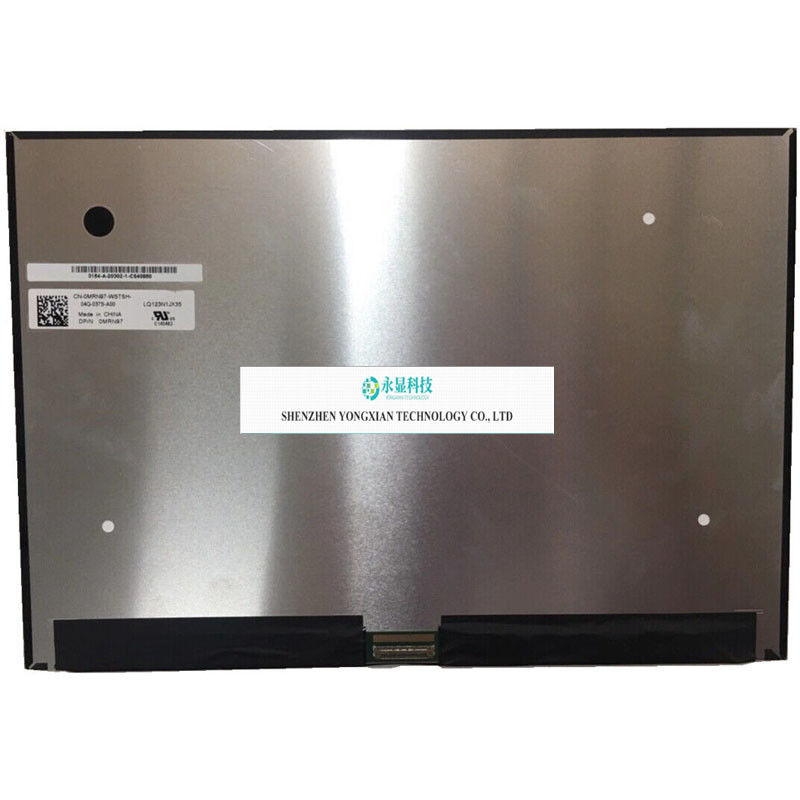

LQ123N1JX35 12.3 Inch LCD Screen Panel 1920X1280 40 Pin Laptop LCD Display Panel
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Sharp |
| Model Number: | LQ123N1JX35 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 5 |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Brand: | Sharp | Model: | LQ123N1JX35 |
|---|---|---|---|
| Size: | 12.3 | Panel Type: | Oxide TFT-LCD, Module |
| Resolution: | 1920(RGB)×1280, 188PPI | Pixel Layout: | RGB Vertical Stripe |
| Display Area: | 259.2(W)×172.8(H) Mm | Appearance Dimensions: | 265.26(W)×185.06(H)×4.4(D) Mm |
| Support Colors: | 16.7M , 100% SRGB | Surface Treatment Mirror: | Mirror Face(Haze 0%)，Hard Coating (3H) |
| Brightness: | 400 Cd/m² (Typ.) | Contrast Ratio: | 1500 : 1 (Typ.) [Transmission] |
| Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) | Working Mode: | New Mode2， Constant Black Display, Transmissive |
| Refresh Rate: | 60Hz | Touch Function: | No Touch, |
| Appearance Style: | - | Panel Application: | Notebook Computer |
| Voltage: | 3.3V (Typ.) | Maximum Rating: | Storage Temperature:- 20~60 ° C Operating Temperature: 0 ~ 50 °C |
| Interface Type: | 40 Pins EDP (2 Lanes) , EDP1.4b , HBR1 (2.7G/lane) , Terminal, | ||
| Highlight: | 12.3 inch LCD screen Panel,40 pin lcd display panel,LQ123N1JX35 |
||
Product Description
LQ123N1JX35 12.3 inch Resolution 1920X1280 40 pin laptop LCD screen Panel
LQ123N1JX35 is a 12.3-inch LCD module product launched by Sharp Corporation in Japan, which adopts Oxide TFT-LCD technology. It is equipped with WLED backlight, LED driver backlight driver, and touch free. According to the product specification document LD-D5118203A released by Sharp on February 7, 2018, the LQ123N1JX35 has a display resolution of 1920 (RGB) × 1280, an aspect ratio of 15:10 (width: height), and pixels arranged in RGB vertical stripes. Its display area size is 259.2 × 172.8 (width × height) mm, and its external dimensions are 265.26 × 185.06 (width × height) × 4.4 (thickness) mm. The surface treatment is mirror finish (Haze 0%), Hard coating (3H), and the net weight of the product is 161g (Max.). In terms of backlight, this product adopts a WLED side entry light source with a lifespan of 15K hours and includes an LED driver. LQ123N1JX35 adopts eDP (2 Lanes) signal interface, with a total of 40 pins, connected by terminals, and a screen driving voltage of 3.3V (Typ.). Its typical vertical refresh rate Fv is 60Hz. And the parameters were finally updated on November 18, 2024. Its working temperature is 0-50 ° C, storage temperature is -25~60 ° C, and vibration resistance is 1.0G (9.8 m/s ²). Based on its sRGB, white LED backlight, including LED driver, inverted terminal, mirror surface, EDP1.4b, for Latitude 7200 and other features, this model is recommended for use on tablets.
Packing & Shipping
Trading Process
FAQ
1.Can I purchase the products in 1 piece?
Yes,you can,but we do not recommend,because the shipping cost is very high.
2.What payment method can I use?
T/T is the best,we aslo accpet Paypal
3.When is the shipment?
Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment,
and will use third parties delivery services or delivered as clients request.
4.How long is the warranty period?
12 Months
5.How to do if there is a product quality problem?
Please contact the relevant sales as soon as possible.
