Led Tft Lcd Panel Laptop Screen Matte 50 Pin Lcd Display LP171WU8 SLB1
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | LG |
| Model Number: | LP171WU8-SLB1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 5 |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Brand: | LG | Model: | LP171WU8-SLB1 |
|---|---|---|---|
| Size: | 17.1 | Panel Type: | A-Si TFT-LCD,module |
| Resolution: | 1920(RGB)×1200, WUXGA, 132PPI | Pixel Layout: | RGB Vertical Stripe |
| Display Area: | 367.2(W)×229.5(H) Mm | Appearance Dimensions: | 382.2(W)×247.5(H)×7(D) Mm |
| Support Colors: | 1.07B , 100% Adobe RGB | Surface Treatment Mirror: | Matte，Hard Coating (3H) |
| Brightness: | 210 Cd/m² (Typ.) | Contrast Ratio: | 800 : 1 (Typ.) [Transmission] |
| Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) | Working Mode: | IPS， Constant Black Display, Transmissive |
| Refresh Rate: | 60Hz | Touch Function: | No Touch, |
| Appearance Style: | Thick Screen (PCBA Bent, Thickness ≥ 5.2mm) | Panel Application: | Notebook Computer |
| Voltage: | 3.3V (Typ.) | Maximum Rating: | Storage Temperature:- 20~60 ° C Operating Temperature: 0 ~ 50 °C |
| Interface Type: | 50 Pins LVDS (2 Ch, 10-bit) , Terminal, | ||
| Highlight: | Led tft lcd panel,Matte 50 pin lcd display,LP171WU8 SLB1 |
||
Product Description

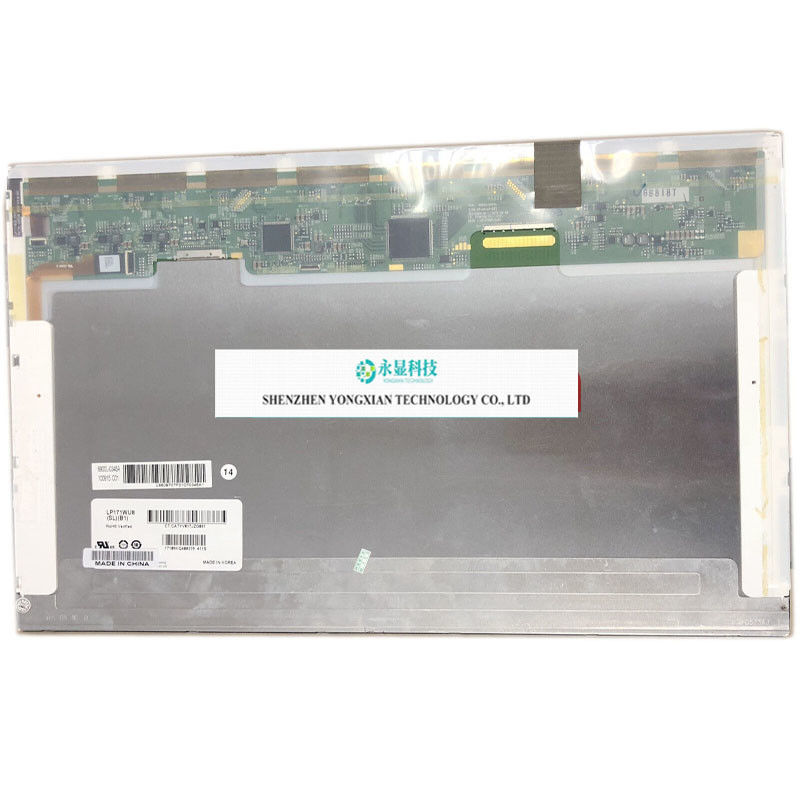

LP171WU8-SLB1 LP171WU8 (SL) (B1) 17.1 WUXGA LED LAPTOP SCREEN MATTE 50 PIN
LP171WU8-SLB1 (alias: LP171WU8 (SL) (B1)) (Product Code: LGD0270 is a 17.1-inch LCD module product launched by LG Display, which adopts a-Si TFT-LCD technology. It is equipped with RGB LED backlight, LED driver backlight driver, and touch free. According to the product specification document Ver1.0 released by LG Display on February 9, 2010, the LP171WU8-SLB1 has a display resolution of 1920 (RGB) × 1200 (WUXGA), an aspect ratio of 16:10 (width: height), and pixels arranged in RGB vertical stripes. Its display area size is 367.2 × 229.5 (width × height) mm, the visible size is 370.6 × 232.9 (width × height) mm, the appearance size is 382.2 × 247.5 (width × height) × 7 (thickness) mm, and the surface treatment is matte, Hard coating (3H), The net weight of the product is 800g (Typ.) and the appearance style is thick screen (PCBA bent, thickness ≥ 5.2mm). In terms of backlight, this product adopts a side entry light source that emits RGB LED light, with a service life of 15K hours and includes an LED driver. LP171WU8-SLB1 adopts LVDS (2 ch, 10 bit) signal interface, with a total of 50 pins, terminal connection, and a screen driving voltage of 3.3V (Typ.). Its typical vertical refresh rate Fv is 60Hz. And the parameters were finally updated on September 21, 2023. Its working temperature is 0~50 ° C, and its storage temperature is -20~60 ° C. Based on its DCI-P3, Adobe RGB, sRGB, RGB LED backlight, including LED driver, 10 bit grayscale, surface matte and other features, this model is recommended for use in laptops.
Packing & Shipping
Trading Process
FAQ
1.Can I purchase the products in 1 piece?
Yes,you can,but we do not recommend,because the shipping cost is very high.
2.What payment method can I use?
T/T is the best,we aslo accpet Paypal
3.When is the shipment?
Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment,
and will use third parties delivery services or delivered as clients request.
4.How long is the warranty period?
12 Months
5.How to do if there is a product quality problem?
Please contact the relevant sales as soon as possible.
