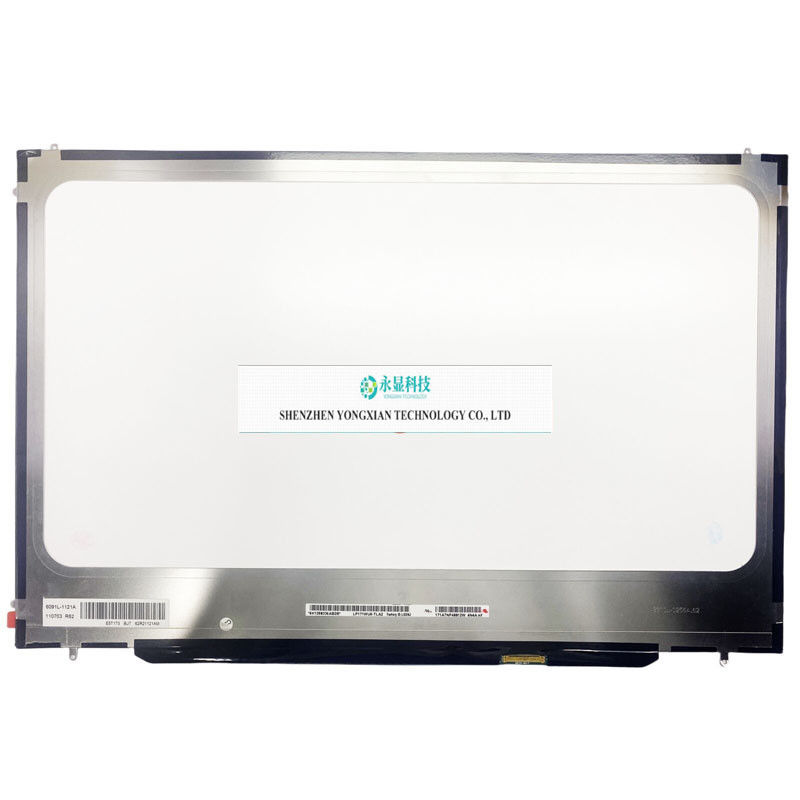

MacBook Pro A1297 Laptop Screen LTN170CT10 LP171WU6-TLA2 A1 Laptop LCD Screen Display
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | LG |
| Model Number: | LP171WU6-TLA2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 5 |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Brand: | LG | Model: | LP171WU6-TLA2 |
|---|---|---|---|
| Size: | 17.1 | Panel Type: | A-Si TFT-LCD,module |
| Resolution: | 1920(RGB)×1200, WUXGA, 132PPI | Pixel Layout: | RGB Vertical Stripe |
| Display Area: | 367.2(W)×229.5(H) Mm | Appearance Dimensions: | - |
| Support Colors: | 262K | Surface Treatment Mirror: | Foggy Surface, Anti Reflection Treatment |
| Brightness: | 275 (Typ.) | Contrast Ratio: | 800 : 1 (Typ.) [Transmission] |
| Viewing Angle: | 70/70/60/60 (Typ.)(CR≥10) | Working Mode: | TN， Constant White Display, Transmissive |
| Refresh Rate: | 60Hz | Touch Function: | No Touch, |
| Appearance Style: | Medium Thickness (PCBA Flat, Thickness 3.4-4.0mm) | Panel Application: | Notebook Computer |
| Voltage: | 3.3V (Typ.) | Maximum Rating: | Storage Temperature:- 20~60 ° C Operating Temperature: 0 ~ 50 °C |
| Interface Type: | LVDS (2 Ch, 6-bit) , 40 Pins ,Terminal, | ||
| Highlight: | MacBook Pro Laptop Screen,Laptop Screen 17.1in,LTN170CT10 |
||
Product Description
LP171WU6-TLA2 A1 LTN170CT10 For MacBook Pro A1297 Laptop LCD Screen Display
LG Display's LP171WU6-TLA2 (alias: LP171WU6 (TL) (A2)) (Product Code: APP9CCD is a 17.1-inch LCD module product using a-Si TFT-LCD technology, equipped with WLED backlight, no backlight driver, and no touch. The typical features of the screen library are: white LED backlight and matte surface. Its working temperature is 0-50 ° C, storage temperature is -20~60 ° C, and vibration resistance is 1.5G (14.7 m/s ²). This model is suitable for use in laptops. And the parameters were finally updated on March 15, 2023. According to the product specification sheet with version number Ver0.0 released by LG Display on July 16, 2009, the LP171WU6-TLA2 has a display resolution of 1920 (RGB) × 1200 (WUXGA), an aspect ratio of 16:10 (width: height), and pixels arranged in RGB vertical stripes. Its display area size is 367.2 × 229.5 (width × height) mm, with a matte surface treatment and anti reflection treatment. The net weight of the product is 590g (Max.), and the appearance style is medium thick (PCBA flat, thickness 3.4-4.0mm). In terms of backlight, this product uses a 14S6P WLED side entry light source with a lifespan of 10K hours, without backlight driver. LP171WU6-TLA2 adopts LVDS (2 ch, 6-bit) signal interface, with a total of 40 pins, connected by terminals, and a screen driving voltage of 3.3V (Typ.). Its typical vertical refresh rate Fv is 60Hz.
Packing & Shipping
Trading Process
FAQ
1.Can I purchase the products in 1 piece?
Yes,you can,but we do not recommend,because the shipping cost is very high.
2.What payment method can I use?
T/T is the best,we aslo accpet Paypal
3.When is the shipment?
Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment,
and will use third parties delivery services or delivered as clients request.
4.How long is the warranty period?
12 Months
5.How to do if there is a product quality problem?
Please contact the relevant sales as soon as possible.
