141PPI SRGB Industrial FHD IPS LCD Display Screen Panel LP156WFG-SPV2 LP156WFG-SPV3
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | LG |
| Model Number: | LP156WFG-SPV2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 5 |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Brand: | LG | Model: | LP156WFG-SPV2 |
|---|---|---|---|
| Size: | 15.6 | Panel Type: | A-Si TFT-LCD,module |
| Resolution: | 1920(RGB)×1080, FHD, 141PPI | Pixel Layout: | RGB Vertical Stripe |
| Display Area: | 344.16(W)×193.59(H) Mm | Appearance Dimensions: | 350.66(W)×216.25(H)×2.6(D) Mm |
| Support Colors: | 16.7M , 99% SRGB | Surface Treatment Mirror: | Matte，Hard Coating (3H) |
| Brightness: | 300 Cd/m² (Typ.) | Contrast Ratio: | 800 : 1 (Typ.) [Transmission] |
| Viewing Angle: | 80/80/80/80 (Min.)(CR≥10) | Working Mode: | IPS， Constant Black Display, Transmissive |
| Refresh Rate: | 300Hz | Touch Function: | No Touch, |
| Appearance Style: | Thin Screen (PCBA Flat, Thickness ≤ 3.2mm) | Panel Application: | Notebook Computer |
| Voltage: | 3.3V (Typ.) | Maximum Rating: | Storage Temperature:- 20~60 ° C Operating Temperature: 0 ~ 50 °C |
| Interface Type: | 40 Pins EDP (4 Lanes) , EDP1.4b , HBR2 (5.4G/lane) ,Terminal, | ||
| Highlight: | 141PPI ips screen panel,sRGB industrial lcd panel,LP156WFG SPV2 |
||
Product Description

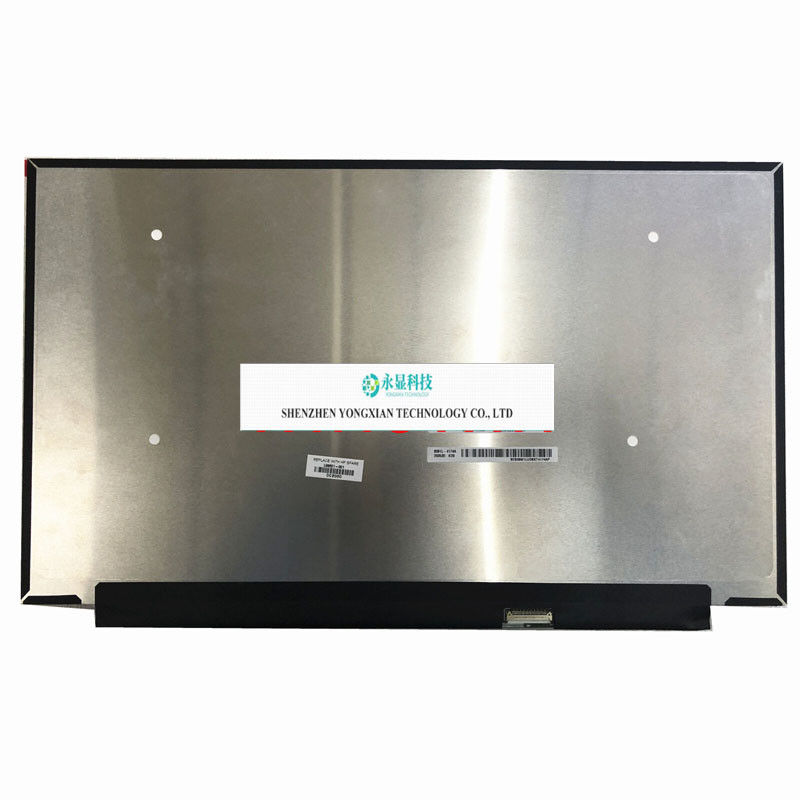

LP156WFG-SPV2 LP156WFG (SP)(V2) LP156WFG-SPV3 FHD IPS LCD Display Screen Panel
LG Display's LP156WFG-SPV2 (alias: LP156WFG (SP) (V2)) (Product Code: LGD065D is a 15.6-inch LCD module product using a-Si TFT-LCD technology. It is equipped with WLED backlight, LED driver backlight driver, and touch free. The typical features of the screen library are summarized as follows: sRGB, White LED backlight, including LED driver, inverted terminal, surface matte, NVIDIA G-Sync, eDP1.4b, PSR2, SSC, G-Sync, LED DC Dimming. Its working temperature is 0-50 ° C, storage temperature is -20~60 ° C, and vibration resistance is 1.0G (9.8 m/s ²). This model is suitable for use in laptops and games. And the parameters were finally updated on August 21, 2024. According to the product specification document Ver1.0 released by LG Display on April 13, 2020, the LP156WFG-SPV2 has a display resolution of 1920 (RGB) × 1080 (FHD), an aspect ratio of 16:9 (width: height), and pixels arranged in RGB vertical stripes. Its display area size is 344.16 × 193.59 (width × height) mm, and its appearance size is 350.66 (width) × 216.25 (height) × 2.6 (thickness) mm. The surface treatment is matte, Hard coating (3H), The net weight of the product is 310g (Max.), and the appearance style is thin screen (PCBA flat, thickness ≤ 3.2mm). In terms of backlight, this product adopts a WLED side entry light source with a lifespan of 15K hours and includes an LED driver. LP156WFG-SPV2 adopts eDP (4 Lanes) signal interface, with a total of 40 pins, connected by terminals, and a screen driving voltage of 3.3V (Typ.). Its typical vertical refresh rate Fv is 300Hz.
Packing & Shipping
Trading Process
FAQ
1.Can I purchase the products in 1 piece?
Yes,you can,but we do not recommend,because the shipping cost is very high.
2.What payment method can I use?
T/T is the best,we aslo accpet Paypal
3.When is the shipment?
Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment,
and will use third parties delivery services or delivered as clients request.
4.How long is the warranty period?
12 Months
5.How to do if there is a product quality problem?
Please contact the relevant sales as soon as possible.
