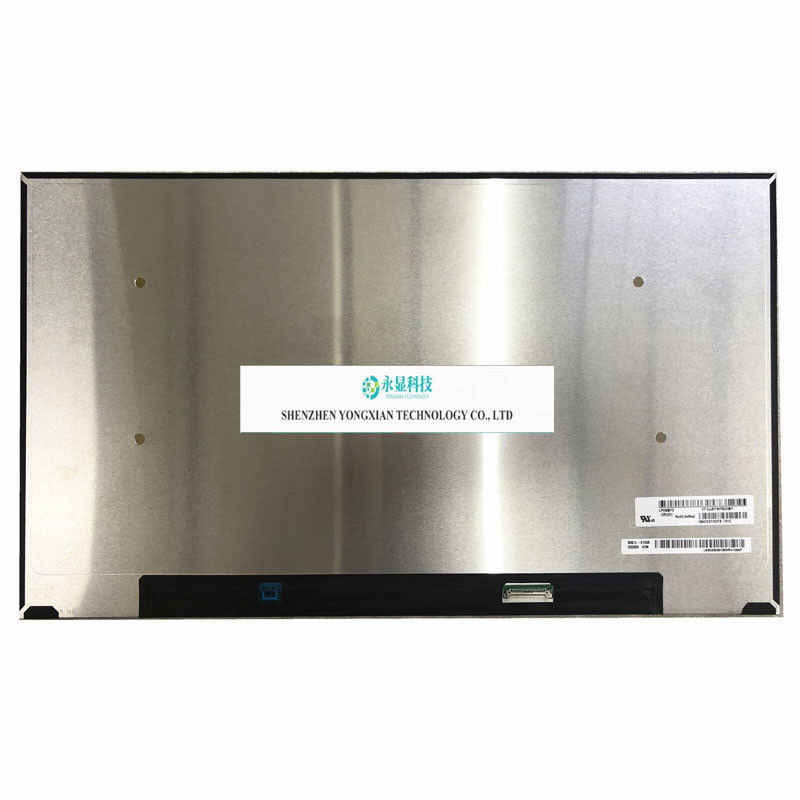

LP156WFE-SPD1 15.6 IPS Laptop Screen LED Panel LCD 1920 1080 EDP 30 Pin
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | LG |
| Model Number: | LP156WFE-SPD1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 5 |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Brand: | LG | Model: | LP156WFE-SPD1 |
|---|---|---|---|
| Size: | 15.6 | Panel Type: | A-Si TFT-LCD,module |
| Resolution: | 1920(RGB)×1080, FHD, 141PPI | Pixel Layout: | RGB Vertical Stripe |
| Display Area: | 344.16(W)×193.59(H) Mm | Appearance Dimensions: | - |
| Support Colors: | 16.7M | Surface Treatment Mirror: | - |
| Brightness: | 300 (Typ.) | Contrast Ratio: | 1200 : 1 (Typ.) [Transmission] |
| Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) | Working Mode: | IPS， Constant Black Display, Transmissive |
| Refresh Rate: | 60Hz | Touch Function: | No Touch, |
| Appearance Style: | Thin Screen (PCBA Bent, Thickness ≤ 3.0mm) | Panel Application: | Notebook Computer |
| Voltage: | 3.3V (Typ.) | Maximum Rating: | Storage Temperature:- 20~60 ° C Operating Temperature: 0 ~ 50 °C |
| Interface Type: | EDP (2 Lanes) , EDP1.2 , HBR1 (2.7G/lane) , 30 Pins , Terminal, | ||
| Highlight: | 15.6 Laptop Screen 1920 1080,IPS led panel lcd 30 Pin,LP156WFE-SPD1 |
||
Product Description
LP156WFE-SPD1 15.6 IPS Laptop LCD LED Screen 19201080 EDP 30 Pin
LG Display's LP156WFE-SPD1 (alias: LP156WFE (SP) (D1) is a 15.6-inch LCD module product using a-Si TFT-LCD technology. It is equipped with WLED backlight, LED driver backlight driver, and touch free. Its typical features are summarized as follows: white LED backlight, including LED driver, and inverted terminals. Its working temperature is 0~50 ° C, and its storage temperature is -20~60 ° C. This model is suitable for laptops and the parameters were last updated on February 21, 2023. The LP156WFE-SPD1 has a display resolution of 1920 (RGB) × 1080 (FHD), an aspect ratio of 16:9 (width: height), and pixels arranged in vertical RGB stripes. Its display area size is 344.16 × 193.59 (width × height) mm, and the net weight of the product is 270/280g (Typ./Max.). The appearance style is thin screen (PCBA bent, thickness ≤ 3.0mm). In terms of backlight, this product adopts a WLED side entry light source with a lifespan of 15K hours and includes an LED driver. LP156WFE-SPD1 adopts eDP (2 Lanes) signal interface, with a total of 30 pins, terminal connection, and a screen driving voltage of 3.3V (Typ.). Its typical vertical refresh rate Fv is 60Hz.
Packing & Shipping
Trading Process
FAQ
1.Can I purchase the products in 1 piece?
Yes,you can,but we do not recommend,because the shipping cost is very high.
2.What payment method can I use?
T/T is the best,we aslo accpet Paypal
3.When is the shipment?
Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment,
and will use third parties delivery services or delivered as clients request.
4.How long is the warranty period?
12 Months
5.How to do if there is a product quality problem?
Please contact the relevant sales as soon as possible.
