OnCell Touch Laptop Screen 40pins Lcd Full Hd Screen 1920x1080 NEW
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | LG |
| Model Number: | LP156WFD-SPH2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 5 |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Brand: | LG | Model: | LP156WFD-SPH2 |
|---|---|---|---|
| Size: | 15.6 | Panel Type: | A-Si TFT-LCD,module |
| Resolution: | 1920(RGB)×1080, FHD, 141PPI | Pixel Layout: | RGB Vertical Stripe |
| Display Area: | 344.16(W)×193.59(H) Mm | Appearance Dimensions: | 350.66(W)×207.29(H)×5.4(D) Mm |
| Support Colors: | 262K , 45% NTSC | Surface Treatment Mirror: | Matte |
| Brightness: | 250 Cd/m² (Typ.) | Contrast Ratio: | 700:1 (Typ.) (TM) |
| Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) | Working Mode: | IPS， Constant Black Display, Transmissive |
| Refresh Rate: | 60Hz | Touch Function: | In-Cell Touch, I²C |
| Appearance Style: | Thin Screen (PCBA Bent, Thickness ≤ 3.0mm) | Panel Application: | Notebook Computer |
| Voltage: | 3.3V (Typ.) | Maximum Rating: | Storage Temperature:- 20~60 ° C Operating Temperature: 0 ~ 50 °C |
| Interface Type: | EDP (2 Lanes) , EDP1.2 , HBR1 (2.7G/lane) , 40 Pins , Terminal, | ||
| Highlight: | OnCell Touch Laptop Screen,40pins lcd full hd,LP156WFD-SPH2 |
||
Product Description

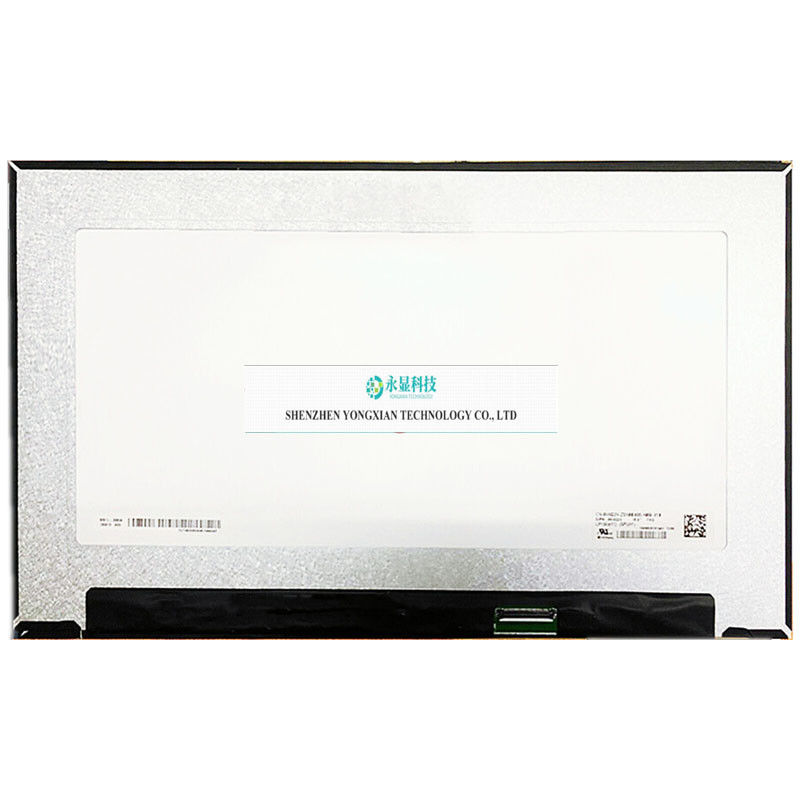

LP156WFD-SPH2 OnCell Touch 40pins LCD Screen FHD 1920x1080 NEW
LG Display's LP156WFD-SPH2 (alias: LP156WFD (SP) (H2)) (Product Code: LGD0684 is a 15.6-inch LCD module product using a-Si TFT-LCD technology, equipped with WLED backlight and LED driver backlight driver, In-Cell Touch. The typical features of the screen library are: touch screen, white LED backlight, LED driver included, inverted terminals, and matte surface, eDP1.2, sDRRS, SSC. Its working temperature is 0-50 ° C, storage temperature is -20~60 ° C, and vibration resistance is 1.0G (9.8 m/s ²). This model is suitable for laptops and industrial applications. And the parameters were finally updated on August 2, 2023. According to the product specification sheet with version number Ver1.1 released by LG Display on March 10, 2021, the LP156WFD-SPH2 display has a resolution of 1920 (RGB) × 1080 (FHD), an aspect ratio of 16:9 (width: height), and pixels arranged in RGB vertical stripes. Its display area size is 344.16 × 193.59 (width × height) mm, and its appearance size is 350.66 (width) × 207.29 (height) × 5.4 (thickness) mm. The surface treatment is matte, and the net weight of the product is 380g (Max.). The appearance style is thin screen (PCBA bent, thickness ≤ 3.0mm). In terms of backlight, this product adopts a WLED side entry light source with a lifespan of 15K hours and includes an LED driver. LP156WFD-SPH2 adopts eDP (2 Lanes) signal interface, with a total of 40 pins, connected by terminals, and a screen driving voltage of 3.3V (Typ.). Its typical vertical refresh rate Fv is 60Hz.
