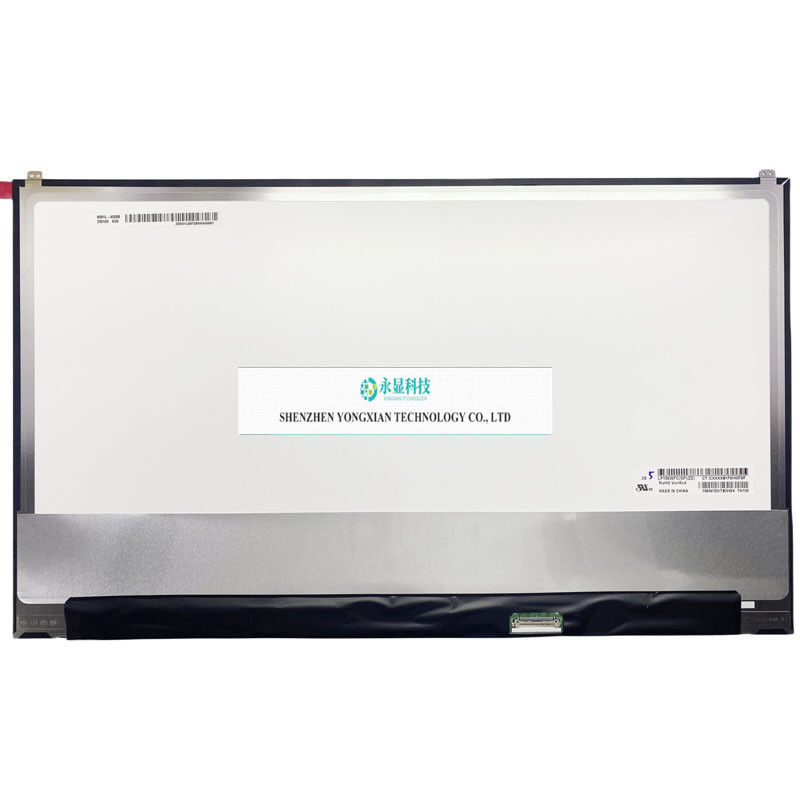

Non Touch Edp 30pin Lcd Display Panel LP156WFC-SPZ2 SPY1 SPN1 SPA1
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | LG |
| Model Number: | LP156WFC-SPZ2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 5 |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Brand: | LG | Model: | LP156WFC-SPZ2 |
|---|---|---|---|
| Size: | 15.6 | Panel Type: | A-Si TFT-LCD,module |
| Resolution: | 1920(RGB)×1080, FHD, 141PPI | Pixel Layout: | RGB Vertical Stripe |
| Display Area: | 344.16(W)×193.59(H) Mm | Appearance Dimensions: | 350.66(W)×209.65(H)×4.08(D) Mm |
| Support Colors: | 262K , 100% SRGB | Surface Treatment Mirror: | Matte |
| Brightness: | 350 (Typ.) | Contrast Ratio: | 800 : 1 (Typ.) [Transmission] |
| Viewing Angle: | 80/80/80/80 (Min.)(CR≥10) | Working Mode: | IPS， Constant Black Display, Transmissive |
| Refresh Rate: | 60Hz | Touch Function: | No Touch |
| Appearance Style: | Thin Screen (PCBA Bent, Thickness ≤ 3.0mm) | Panel Application: | Notebook Computer |
| Voltage: | 3.3V (Typ.) | Maximum Rating: | Storage Temperature:- 20~60 ° C Operating Temperature: 0 ~ 50 °C |
| Interface Type: | EDP (2 Lanes) , EDP1.3 , HBR1 (2.7G/lane) , 30 Pins, Terminal, | ||
| Highlight: | Non Touch edp lcd,350CD/m2 30pin lcd display panel,LP156WFC-SPZ2 |
||
Product Description
LP156WFC-SPZ2 LP156WFC-SPY1 fit LP156WF9 SPN1 LP156WF8 SPA1 NON-TOUCH edp 30pin
LP156WFC-SP52 (alias: LP156WFC (SP) (Z2) is a 15.6-inch a-Si TFT-LCD LCD module product launched by LG Display. It is equipped with WLED backlight, LED driver backlight driver, and touch free. The working temperature of this product is 0~50 ° C, and the storage temperature is -20~60 ° C. Its typical feature screen library is summarized as follows: sRGB, White LED backlight, including LED driver, inverted terminal, surface matte, AMD FreeSync, eDP1.3. Based on its features, this model is recommended for use in laptops, industrial products, and other applications. And the parameters were finally updated on August 2, 2023. According to the product specification sheet with version number Ver1.1 released by LG Display on January 7, 2022, the LP156WFC-SPZ2 has a display resolution of 1920 (RGB) × 1080 (FHD), an aspect ratio of 16:9 (width: height), and pixels arranged in RGB vertical stripes. Its display area size is 344.16 (width) × 193.59 (height) mm, and its appearance size is 350.66 (width) × 209.65 (height) × 4.08 (thickness) mm. The surface treatment is matte, and the net weight of the product is 199/209g (Typ./Max.). The appearance style is thin screen (PCBA bent, thickness ≤ 3.0mm). In terms of backlight, this product adopts a WLED side entry light source with a lifespan of 12K hours and includes an LED driver. LP156WFC-SP52 adopts eDP (2 Lanes) signal interface, with a total of 30 pins, connected by terminals, and a screen driving voltage of 3.3V (Typ.). Its typical vertical refresh rate Fv is 60Hz.
Packing & Shipping
Trading Process
FAQ
1.Can I purchase the products in 1 piece?
Yes,you can,but we do not recommend,because the shipping cost is very high.
2.What payment method can I use?
T/T is the best,we aslo accpet Paypal
3.When is the shipment?
Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment,
and will use third parties delivery services or delivered as clients request.
4.How long is the warranty period?
12 Months
5.How to do if there is a product quality problem?
Please contact the relevant sales as soon as possible.
