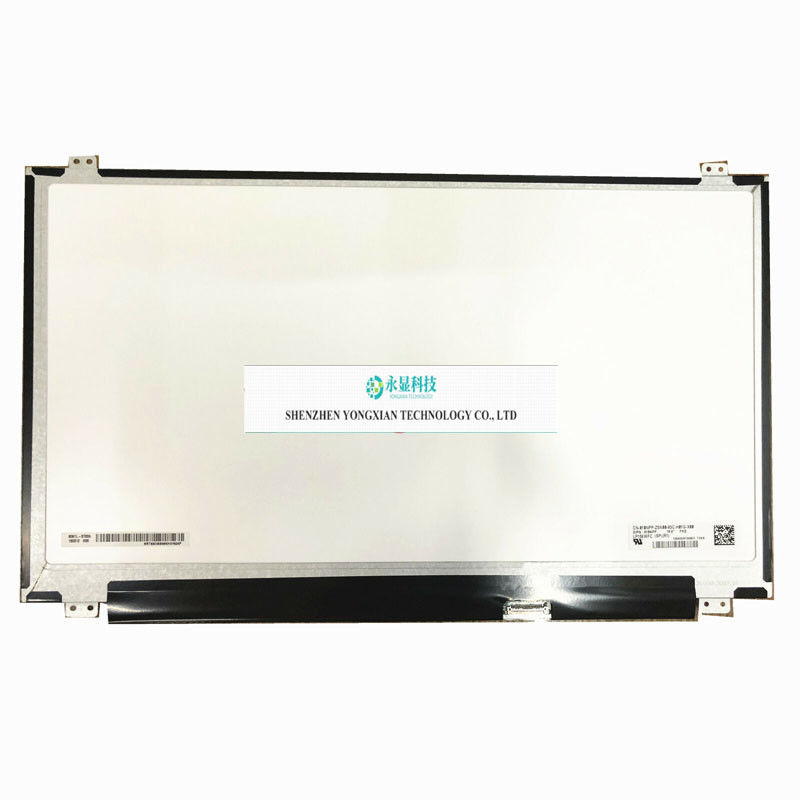

LP156WFC-SPR1 LED Laptop Screen LCD FHD Display 15.6 FHD Display
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | LG |
| Model Number: | LP156WFC-SPR1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 5 |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Brand: | LG | Model: | LP156WFC-SPR1 |
|---|---|---|---|
| Size: | 15.6 | Panel Type: | A-Si TFT-LCD,module |
| Resolution: | 1920(RGB)×1080, FHD, 141PPI | Pixel Layout: | RGB Vertical Stripe |
| Display Area: | 344.16(W)×193.59(H) Mm | Appearance Dimensions: | 359.5(W)×223.8(H)×3.2(D) Mm |
| Support Colors: | 262K , 45% NTSC | Surface Treatment Mirror: | Matte |
| Brightness: | 220 (Typ.) | Contrast Ratio: | 700 : 1 (Typ.) [Transmission] |
| Viewing Angle: | 80/80/80/80 (Min.)(CR≥10) | Working Mode: | IPS， Constant Black Display, Transmissive |
| Refresh Rate: | 60Hz | Touch Function: | No Touch |
| Appearance Style: | Thin Screen (PCBA Flat, Thickness ≤ 3.2mm) | Panel Application: | Notebook Computer |
| Voltage: | 3.3V (Typ.) | Maximum Rating: | Storage Temperature:- 20~60 ° C Operating Temperature: 0 ~ 50 °C |
| Interface Type: | EDP (2 Lanes) , EDP1.2 , HBR1 (2.7G/lane) , 30 Pins , Terminal, | ||
| Highlight: | LED Laptop Screen 15.6,LCD FHD Display TFT,LP156WFC-SPR1 |
||
Product Description
LP156WFC-SPR1 fit LP156WFC (SP)(R1) LCD LED Screen 15.6 FHD Display
LP156WFC-SPR1 (alias: LP156WFC (SP) (R1) (Product Code: LGD05D0 is a 15.6-inch LCD module product launched by LG Display Corporation (LG Display) using a-Si TFT-LCD technology. It is equipped with WLED backlight, LED driver backlight driver, and touch free. According to the product specification sheet with version number Rev1.0 released by LG Display on May 31, 2018, the LP156WFC-SPR1 has a display resolution of 1920 (RGB) × 1080 (FHD), an aspect ratio of 16:9 (width: height), and pixels arranged in RGB vertical stripes. Its display area size is 344.16 × 193.59 (width × height) mm, and its appearance size is 359.5 × 223.8 (width × height) × 3.2 (thickness) mm. The surface treatment is matte, and the net weight of the product is 340/350g (Typ./Max.). The appearance style is thin screen (PCBA flat, thickness ≤ 3.2mm). In terms of backlight, this product adopts a WLED side entry light source with a lifespan of 12K hours and includes an LED driver. LP156WFC-SPR1 adopts eDP (2 Lanes) signal interface, with a total of 30 pins, connected by terminals, and a screen driving voltage of 3.3V (Typ.). Its typical vertical refresh rate Fv is 60Hz. And the parameters were finally updated on May 24, 2024. Its working temperature is 0-50 ° C, storage temperature is -20~60 ° C, and vibration resistance is 1.0G (9.8 m/s ²). Based on its white LED backlight, including LED driver, inverted terminals, and matte surface, EDP1.2, sDRRS, SSC and other features, this model is recommended for use in laptops.
Packing & Shipping
Trading Process
FAQ
1.Can I purchase the products in 1 piece?
Yes,you can,but we do not recommend,because the shipping cost is very high.
2.What payment method can I use?
T/T is the best,we aslo accpet Paypal
3.When is the shipment?
Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment,
and will use third parties delivery services or delivered as clients request.
4.How long is the warranty period?
12 Months
5.How to do if there is a product quality problem?
Please contact the relevant sales as soon as possible.
