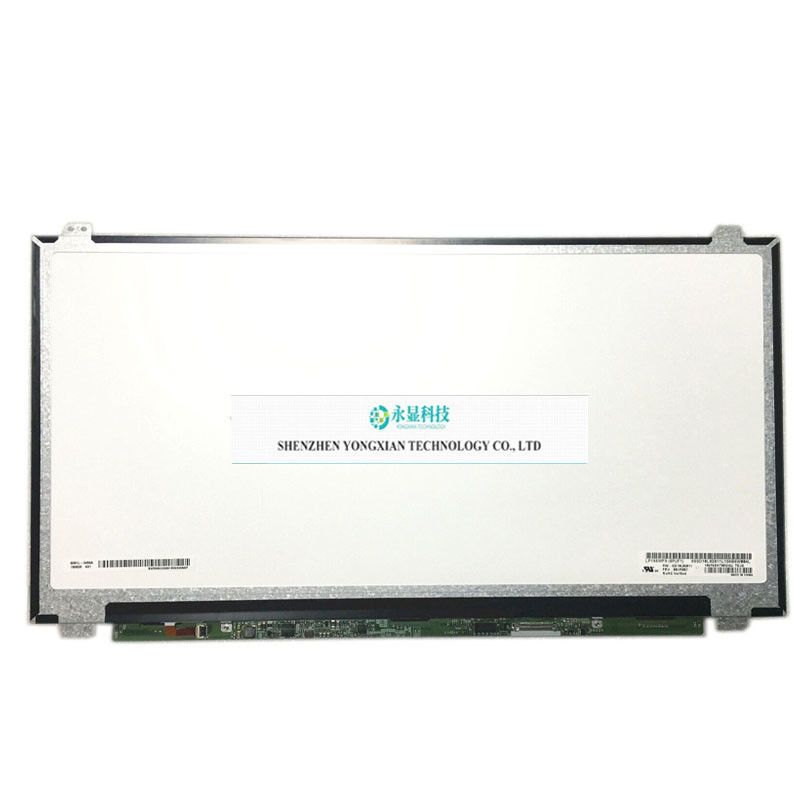

LP156WF9-SPF1 15.6 FHD Ips Panel WUXGA 1080P IPS LED LCD Screen
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | LG |
| Model Number: | LP156WF9-SPF1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 5 |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Brand: | LG | Model: | LP156WF9-SPF1 |
|---|---|---|---|
| Size: | 15.6 | Panel Type: | A-Si TFT-LCD,module |
| Resolution: | 1920(RGB)×1080, FHD, 141PPI | Pixel Layout: | RGB Vertical Stripe |
| Display Area: | 344.16(W)×193.59(H) Mm | Appearance Dimensions: | 351.56(W)×223.8(H)×3.2(D) Mm |
| Support Colors: | 262K , 47% NTSC | Surface Treatment Mirror: | Matte |
| Brightness: | 250 Cd/m² (Typ.) | Contrast Ratio: | 700:1 (Typ.) (Transmission) |
| Viewing Angle: | 80/80/80/80 (Min.)(CR≥10) | Working Mode: | IPS， Constant Black Display, Transmissive |
| Refresh Rate: | 60Hz | Touch Function: | No Touch |
| Appearance Style: | Thin Screen (PCBA Flat, Thickness ≤ 3.2mm) | Panel Application: | Notebook Computer |
| Voltage: | 3.3V (Typ.) | Maximum Rating: | Storage Temperature:- 20~60 ° C Operating Temperature: 0 ~ 50 °C |
| Interface Type: | 30 Pins EDP (2 Lanes) , HBR1 (2.7G/lane) , Terminal, | ||
| Highlight: | fhd ips panel 1080P,15.6 fhd ips panel,LP156WF9-SPF1 |
||
Product Description
LP156WFC-SPC1 LP156WFC (SP)(C1) Materix 15.6 IPS LED Screen
LP156WF9-SPF1 (alias: LP156WF9 (SP) (F1)) (Product Code: LGD0541 is a 15.6-inch LCD module product launched by LG Display, which adopts a-Si TFT-LCD technology. It is equipped with WLED backlight, LED driver backlight driver, and touch free. According to the product specification sheet with version number Ver1.0 released by LG Display on October 14, 2016, the LP156WF9-SPF1 display has a resolution of 1920 (RGB) × 1080 (FHD), an aspect ratio of 16:9 (width: height), and pixels arranged in RGB vertical stripes. Its display area size is 344.16 × 193.59 (width × height) mm, visible size is 347.15 × 196.65 (width × height) mm, appearance size is 351.56 × 223.8 (width × height) × 3.2 (thickness) mm, surface treatment is matte, product net weight is 350g (Max.), appearance style is thin screen (PCBA flat, thickness ≤ 3.2mm). In terms of backlight, this product adopts a WLED side entry light source with a lifespan of 15K hours and includes an LED driver. LP156WF9-SPF1 adopts eDP (2 Lanes) signal interface, with a total of 30 pins, connected by terminals, and a screen driving voltage of 3.3V (Typ.). Its typical vertical refresh rate Fv is 60Hz. And the parameters were finally updated on August 2, 2023. Its working temperature is 0~50 ° C, and its storage temperature is -20~60 ° C. Based on its white LED backlight, LED driver, inverted terminals, and matte surface, this model is recommended for use in laptops.
Packing & Shipping
Trading Process
FAQ
1.Can I purchase the products in 1 piece?
Yes,you can,but we do not recommend,because the shipping cost is very high.
2.What payment method can I use?
T/T is the best,we aslo accpet Paypal
3.When is the shipment?
Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment,
and will use third parties delivery services or delivered as clients request.
4.How long is the warranty period?
12 Months
5.How to do if there is a product quality problem?
Please contact the relevant sales as soon as possible.
