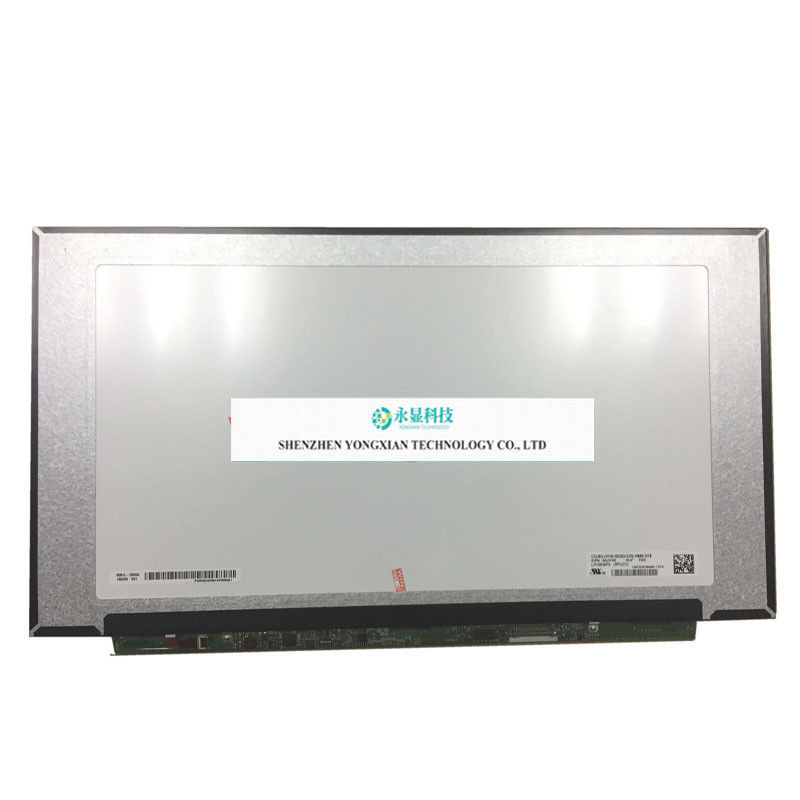

15.6 1920x1080 Laptop Screen LP156WF9-SPC1 Fit N156HCA-EBA LCD Screen IPS
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | LG |
| Model Number: | LP156WF9-SPC1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 5 |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Brand: | LG | Model: | LP156WF9-SPC1 |
|---|---|---|---|
| Size: | 15.6 | Panel Type: | A-Si TFT-LCD,module |
| Resolution: | 1920(RGB)×1080, FHD, 141PPI | Pixel Layout: | RGB Vertical Stripe |
| Display Area: | 344.16(W)×193.59(H) Mm | Appearance Dimensions: | 351.56(W)×216.7(H)×3.2(D) Mm |
| Support Colors: | 262K , 47% NTSC | Surface Treatment Mirror: | Mirror (Haze 0%) |
| Brightness: | 220 Cd/m² (Typ.) | Contrast Ratio: | 700:1 (Typ.) (TM) |
| Viewing Angle: | 80/80/80/80 (Min.)(CR≥10) | Working Mode: | IPS， Constant Black Display, Transmissive |
| Refresh Rate: | 60Hz | Touch Function: | No Touch |
| Appearance Style: | Thin Screen (PCBA Flat, Thickness ≤ 3.2mm) | Panel Application: | Notebook Computer |
| Voltage: | 3.3V (Typ.) | Maximum Rating: | Storage Temperature:- 20~60 ° C Operating Temperature: 0 ~ 50 °C |
| Interface Type: | EDP (2 Lanes) , HBR1 (2.7G/lane) , 30 Pins ,Terminal, | ||
| Highlight: | 15.6 Laptop Screen,1920x1080 Laptop Screen,LP156WF9-SPC1 |
||
Product Description
LP156WF9-SPC1 fit N156HCA-EBA LP156WF9(SP)(C1) 15.6LED LCD Screen IPS 1920x1080
LG Display's LP156WF9-SPC1 (alias: LP156WF9 (SP) (C1) (Product Code: LGD051F is a 15.6-inch LCD module product using a-Si TFT-LCD technology. It is equipped with WLED backlight, LED driver backlight driver, and touch free. The typical features of the screen library are: white LED backlight, including LED driver, inverted terminal, and mirror surface. Its working temperature is 0~50 ° C, and its storage temperature is -20~60 ° C. This model is suitable for use in laptops. And the parameters were finally updated on August 2, 2023. According to the product specification sheet with version number Ver1.0 released by LG Display on May 8, 2017, the LP156WF9-SPC1 display has a resolution of 1920 (RGB) × 1080 (FHD), an aspect ratio of 16:9 (width: height), and pixels arranged in RGB vertical stripes. Its display area size is 344.16 × 193.59 (width × height) mm, and its appearance size is 351.56 (width) × 216.7 (height) × 3.2 (thickness) mm. The surface treatment is mirror (Haze 0%), and the net weight of the product is 380g (Max.). The appearance style is thin screen (PCBA flat, thickness ≤ 3.2mm). In terms of backlight, this product adopts a WLED side entry light source with a lifespan of 15K hours and includes an LED driver. LP156WF9-SPC1 adopts eDP (2 Lanes) signal interface, with a total of 30 pins, connected by terminals, and a screen driving voltage of 3.3V (Typ.). Its typical vertical refresh rate Fv is 60Hz.
Packing & Shipping
Trading Process
FAQ
1.Can I purchase the products in 1 piece?
Yes,you can,but we do not recommend,because the shipping cost is very high.
2.What payment method can I use?
T/T is the best,we aslo accpet Paypal
3.When is the shipment?
Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment,
and will use third parties delivery services or delivered as clients request.
4.How long is the warranty period?
12 Months
5.How to do if there is a product quality problem?
Please contact the relevant sales as soon as possible.
