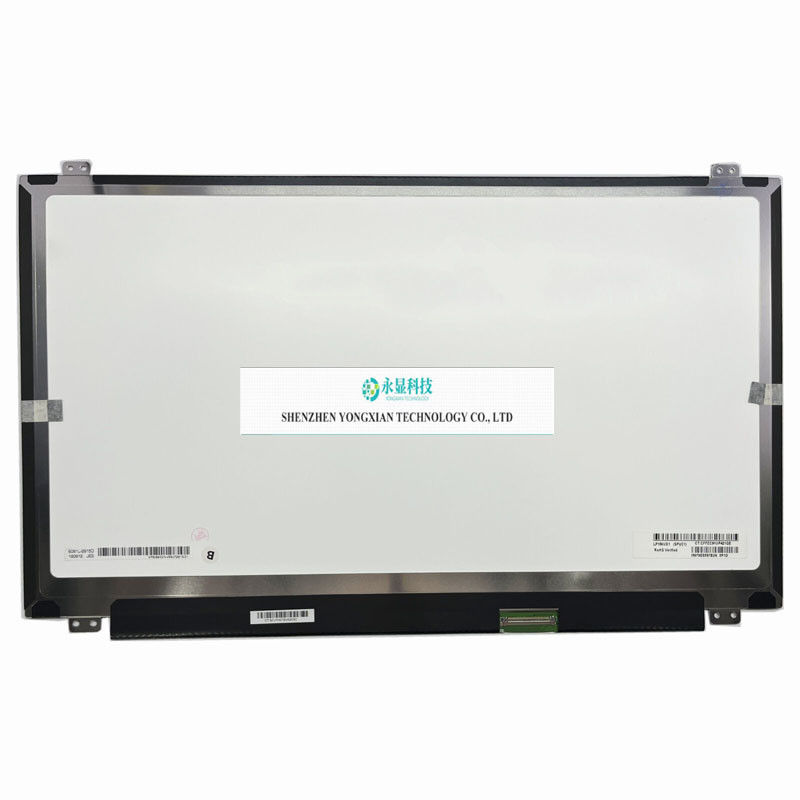

40 Pin IPS UHD EDP Laptop Screen LP156UD1 SPC1 LP156UD1 SP A1 LP156UD1-SPA1
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | LG |
| Model Number: | LP156UD1-SPC1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 5 |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Brand: | LG | Model: | LP156UD1-SPC1 |
|---|---|---|---|
| Size: | 15.6 | Panel Type: | A-Si TFT-LCD,module |
| Resolution: | 3840(WR/GB)×2160, UHD, 231PPI | Pixel Layout: | RG/BW LCD PenTile |
| Display Area: | 344.448(W)×193.752(H) Mm | Appearance Dimensions: | 359.5(W)×233.8(H)×2.6(D) Mm |
| Support Colors: | 16.7M , 72% NTSC | Surface Treatment Mirror: | Mirror Face (Haze 0%)，Hard Coating (3H) |
| Brightness: | 300 (Typ.) | Contrast Ratio: | 800 : 1 (Typ.) [Transmission] |
| Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10 | Working Mode: | IPS， Constant Black Display, Transmissive |
| Refresh Rate: | 60Hz | Touch Function: | No Touch |
| Appearance Style: | Thin Screen (PCBA Flat, Thickness ≤ 3.2mm) | Panel Application: | Notebook Computer |
| Voltage: | 3.3V (Typ.) | Maximum Rating: | Storage Temperature:- 20~60 ° C Operating Temperature: 0 ~ 50 °C |
| Interface Type: | EDP (4 Lanes) , HBR2 (5.4G/lane) , 40 Pins,Terminal, | ||
| Highlight: | UHD Laptop Screen,EDP Laptop Screen,LP156UD1 SPC1 |
||
Product Description
LP156UD1-SPC1 LP156UD1(SP)(A1) LP156UD1-SPA1 UHD EDP 40 pin IPS
LG Display's LP156QHG-SPV1 (alias: LP156QHG (SP) (V1)) (Product Code: LGD0690 is a 15.6-inch LCD module product using a-Si TFT-LCD technology. It is equipped with WLED backlight, LED driver backlight driver, and touch free. The typical features of the screen library are summarized as follows: DCI-P3,sRGB,240Hz, White LED backlight, including LED driver, inverted terminal, surface matte, G-Sync / FreeSync, eDP1.4b, LED DC Dimming, G-sync support (w/o DDS), Free sync support, SSC, DDS. Its working temperature is 0-50 ° C, storage temperature is -20~60 ° C, and vibration resistance is 1.0G (9.8 m/s ²). This model is suitable for use in laptops and games. And the parameters were finally updated on May 24, 2024. According to the product specification sheet with version number Ver1.0 released by LG Display on March 29, 2021, the LP156QHG-SPV1 has a display resolution of 2560 (RGB) × 1440 (Quad HD), an aspect ratio of 16:9 (width: height), and pixels arranged in RGB vertical stripes. Its display area size is 344.22 × 193.62 (width × height) mm, and its appearance size is 350.66 (width) × 216.25 (height) × 2.2 (thickness) mm. The surface treatment is matte, Hard coating (3H), The net weight of the product is 340g (Max.), and the appearance style is thin screen (PCBA flat, thickness ≤ 3.2mm). In terms of backlight, this product adopts a WLED side entry light source with a lifespan of 15K hours and includes an LED driver. LP156QHG-SPV1 adopts eDP (4 Lanes) signal interface, with a total of 40 pins, connected by terminals, and a screen driving voltage of 3.3V (Typ.). Its typical vertical refresh rate Fv is 240Hz.
Packing & Shipping
Trading Process
FAQ
1.Can I purchase the products in 1 piece?
Yes,you can,but we do not recommend,because the shipping cost is very high.
2.What payment method can I use?
T/T is the best,we aslo accpet Paypal
3.When is the shipment?
Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment,
and will use third parties delivery services or delivered as clients request.
4.How long is the warranty period?
12 Months
5.How to do if there is a product quality problem?
Please contact the relevant sales as soon as possible.
