Detail Information |
|||
| Brand: | LG | Model: | LP156QHG-SPP1 |
|---|---|---|---|
| Size: | 15.6 | Panel Type: | A-Si TFT-LCD,module |
| Resolution: | 2560(RGB)×1440, Quad-HD, 188PPI | Pixel Layout: | RGB Vertical Stripe |
| Display Area: | 344.22(W)×193.62(H) Mm | Appearance Dimensions: | 350.66(W)×206.1(H)×4.6(D) Mm |
| Support Colors: | 16.7M , 100% SRGB | Surface Treatment Mirror: | Matte，Hard Coating (3H) |
| Brightness: | 300 (Typ.) | Contrast Ratio: | 1000 : 1 (Typ.) [Transmission] |
| Viewing Angle: | 80/80/80/80 (Min.)(CR≥10) | Working Mode: | IPS， Constant Black Display, Transmissive |
| Refresh Rate: | 120Hz | Touch Function: | No Touch |
| Appearance Style: | Thin Screen (PCBA Bent, Thickness ≤ 3.0mm) | Panel Application: | Notebook Computer |
| Voltage: | 3.3V (Typ.) | Maximum Rating: | Storage Temperature:- 20~60 ° C Operating Temperature: 0 ~ 50 °C |
| Interface Type: | EDP (4 Lanes) , EDP1.4b , HBR3 (8.1G/lane) ,, 40 Pins,Terminal, | ||
| Highlight: | 188PPI Laptop Screen,Laptop LCD screen 15.6 inch,LP156QHG-SPP1 |
||
Product Description

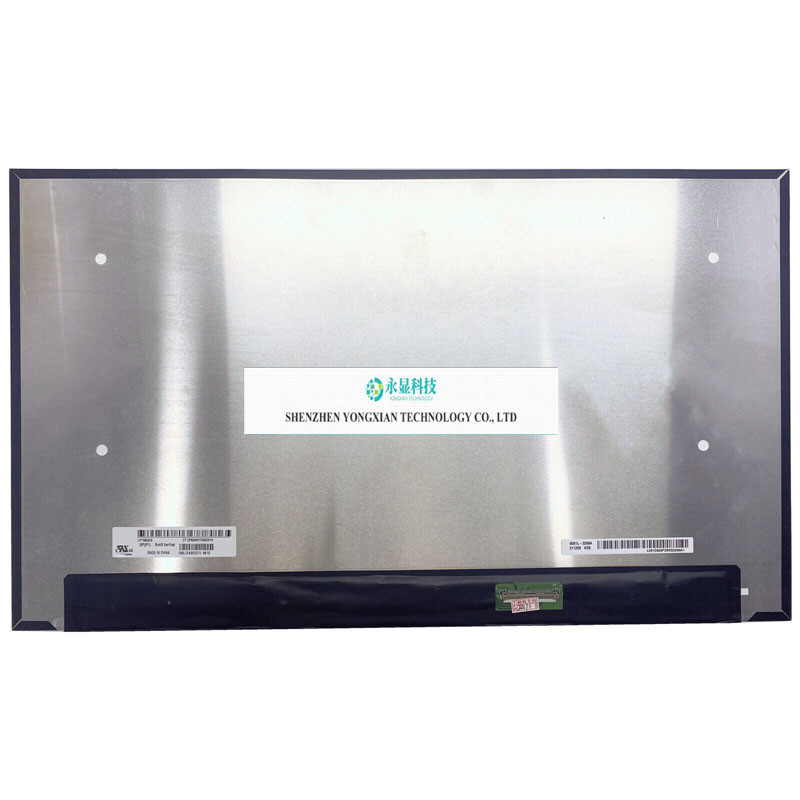

LP156QHG-SPP1 LP156QHG (SP)(P1) Laptop LCD screen Panel Matrix 15.6 inch
LG Display's LP156QHG-SPP1 (alias: LP156QHG (SP) (P1) (Product Code: LGD0707 is a 15.6-inch LCD module product using a-Si TFT-LCD technology. It is equipped with WLED backlight, LED driver backlight driver, and touch free. The typical features of the screen library are summarized as follows: sRGB,120Hz, White LED backlight, including LED driver, inverted terminal, surface matte, G-Sync / FreeSync, eDP1.4b, LED DC Dimming, G-sync support, Free sync, SSC, PSR2, LBL. Its working temperature is 0-50 ° C, storage temperature is -20~60 ° C, and vibration resistance is 1.0G (9.8 m/s ²). This model is suitable for use in laptops and games. And the parameters were finally updated on May 24, 2024. According to the product specification sheet with version number Ver1.0 released by LG Display on March 17, 2022, the LP156QHG-SPP1 has a display resolution of 2560 (RGB) × 1440 (Quad HD), an aspect ratio of 16:9 (width: height), and pixels arranged in RGB vertical stripes. Its display area size is 344.22 × 193.62 (width × height) mm, and its appearance size is 350.66 (width) × 206.1 (height) × 4.6 (thickness) mm. The surface treatment is matte, Hard coating (3H), The net weight of the product is 280g (Max.), and the appearance style is thin screen (PCBA bent, thickness ≤ 3.0mm). In terms of backlight, this product adopts a WLED side entry light source with a lifespan of 15K hours and includes an LED driver. LP156QHG-SPP1 adopts eDP (4 Lanes) signal interface, with a total of 40 pins, terminal connection, and a screen driving voltage of 3.3V (Typ.). Its typical vertical refresh rate Fv is 120Hz.
Packing & Shipping
Trading Process
FAQ
1.Can I purchase the products in 1 piece?
Yes,you can,but we do not recommend,because the shipping cost is very high.
2.What payment method can I use?
T/T is the best,we aslo accpet Paypal
3.When is the shipment?
Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment,
and will use third parties delivery services or delivered as clients request.
4.How long is the warranty period?
12 Months
5.How to do if there is a product quality problem?
Please contact the relevant sales as soon as possible.
