1920x1200 14.0 Laptop Screen Tft Lcd Display Module LP140WU1-SPF1 Matrix NEW
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | LG |
| Model Number: | LP140WU1-SPF1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 5 |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Brand: | LG | Model: | LP140WU1-SPF1 |
|---|---|---|---|
| Size: | 14.0 | Panel Type: | A-Si TFT-LCD,module |
| Resolution: | 1920(RGB)×1200, WUXGA, 161PPI | Pixel Layout: | RGB Vertical Stripe |
| Display Area: | 301.594(W)×188.496(H) Mm | Appearance Dimensions: | 306.59(W)×197.85(H)×3.8(D) Mm |
| Support Colors: | 16.7M , 99% DCI-P3 | Surface Treatment Mirror: | Matte，Hard Coating (3H) |
| Brightness: | 350 Cd/m² (Typ.) | Contrast Ratio: | 1200:1 (Typ.) (TM) |
| Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) | Working Mode: | IPS， Constant Black Display, Transmissive |
| Refresh Rate: | 60Hz | Touch Function: | No Touch |
| Appearance Style: | Thin Screen (PCBA Bent, Thickness ≤ 3.0mm) | Panel Application: | Notebook Computer |
| Voltage: | 3.3V (Typ.) | Maximum Rating: | Storage Temperature:- 20~60 ° C Operating Temperature: 0 ~ 50 °C |
| Interface Type: | EDP (2 Lanes) , EDP1.4 , HBR1 (2.7G/lane) , 30 Pins , Terminal, | ||
| Highlight: | 1920 x 1200 Laptop Screen,14.0 tft lcd display module,LP140WU1-SPF1 |
||
Product Description

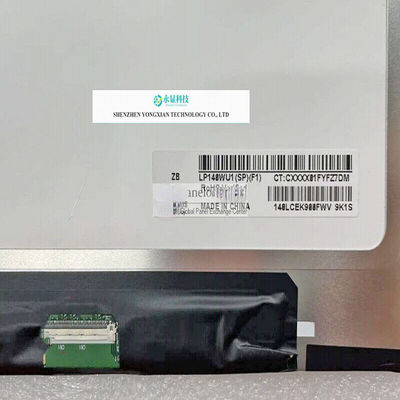

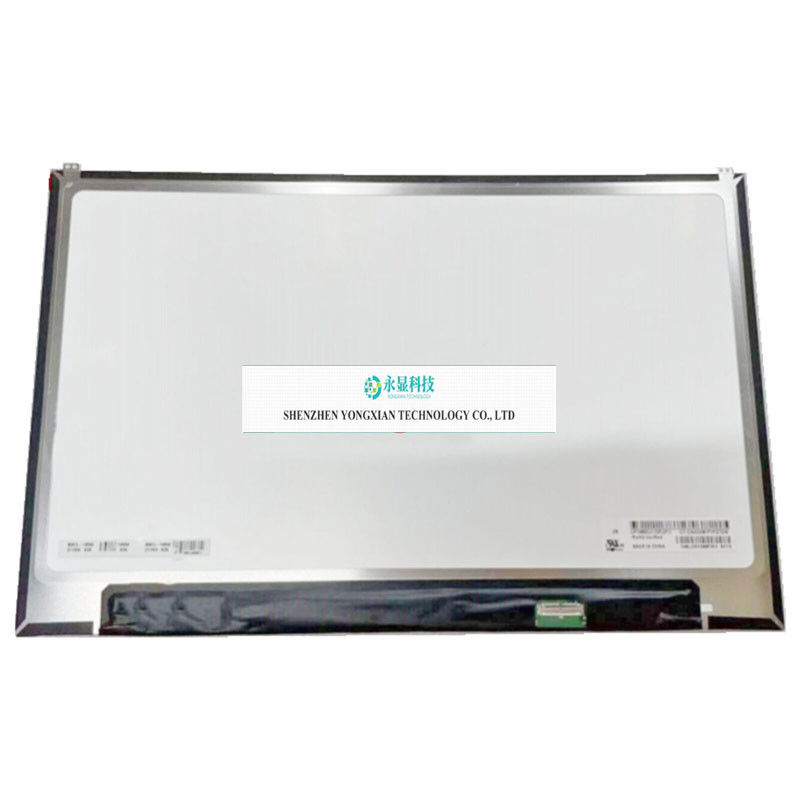

LP140WU1-SPF1 14.0 laptop LCD Screen Panel Matrix 1920x1200 NEW
LG Display's LP140WU1-SPF1 (alias: LP140WU1 (SP) (F1) is a 14.0-inch LCD module product using a-Si TFT-LCD technology. It is equipped with WLED backlight, LED driver backlight driver, and touch free. The typical features of the screen library are summarized as follows: DCI-P3,sRGB, White LED backlight, including LED driver, inverted terminal, surface matte, eDP1.4, PSR2, SSC, LED DC Dimming, for LG Gram 14 (2022) laptop. Its working temperature is 0-50 ° C, storage temperature is -20~60 ° C, and vibration resistance is 1.0G (9.8 m/s ²). This model is suitable for use in laptops. And the parameters were finally updated on October 16, 2024. According to the product specification sheet with version number Ver1.0 released by LG Display on March 7, 2022, the LP140WU1-SPF1 display has a resolution of 1920 (RGB) × 1200 (WUXGA), an aspect ratio of 16:10 (width: height), and pixels arranged in RGB vertical stripes. Its display area size is 301.594 × 188.496 (width × height) mm, and its appearance size is 306.59 (width) × 197.85 (height) × 3.8 (thickness) mm. The surface treatment is matte, Hard coating (3H), The net weight of the product is 170/178g (Typ./Max.). The appearance style is thin screen (PCBA bent, thickness ≤ 3.0mm). In terms of backlight, this product adopts a WLED side entry light source with a lifespan of 15K hours and includes an LED driver. LP140WU1-SPF1 adopts eDP (2 Lanes) signal interface, with a total of 30 pins, connected by terminals, and a screen driving voltage of 3.3V (Typ.). Its typical vertical refresh rate Fv is 60Hz.
Packing & Shipping
Trading Process
FAQ
1.Can I purchase the products in 1 piece?
Yes,you can,but we do not recommend,because the shipping cost is very high.
2.What payment method can I use?
T/T is the best,we aslo accpet Paypal
3.When is the shipment?
Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment,
and will use third parties delivery services or delivered as clients request.
4.How long is the warranty period?
12 Months
5.How to do if there is a product quality problem?
Please contact the relevant sales as soon as possible.
