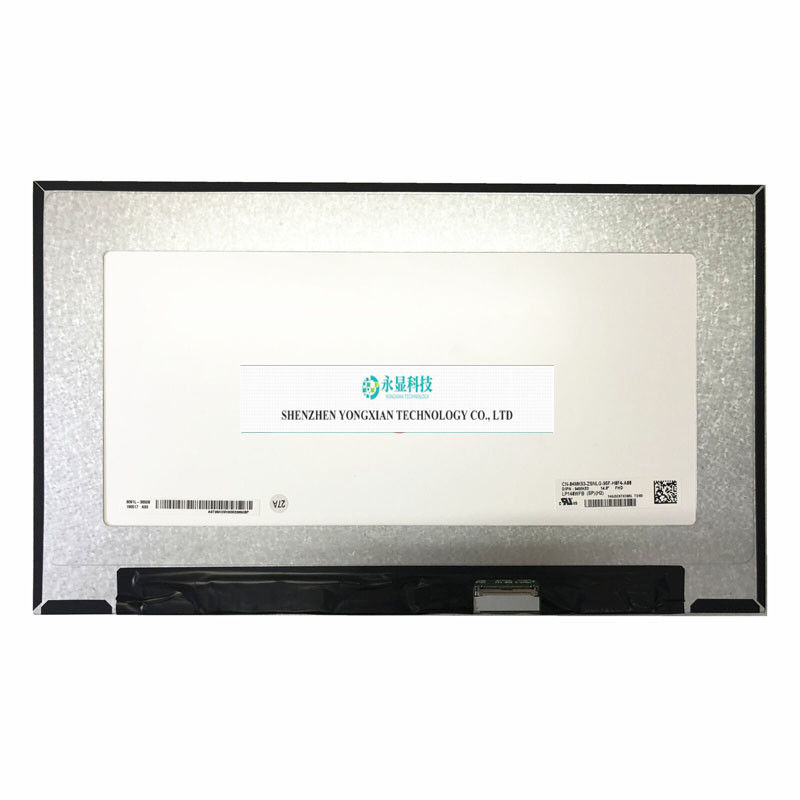

1920 X 1080 157PPI Tft LCD Touch Screen Laptop Display LP140WFB-SPH2 Panel
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | LG |
| Model Number: | LP140WFB-SPH2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 5 |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Brand: | LG | Model: | LP140WFB-SPH2 |
|---|---|---|---|
| Size: | 14.0 | Panel Type: | A-Si TFT-LCD,module |
| Resolution: | 1920(RGB)×1080, FHD, 157PPI | Pixel Layout: | RGB Vertical Stripe |
| Display Area: | 309.31(W)×173.99(H) Mm | Appearance Dimensions: | 315.81(W)×186.07(H)×5.25(D) Mm |
| Support Colors: | 262K , 45% NTSC | Surface Treatment Mirror: | Matte，Hard Coating (3H) |
| Brightness: | 220 (Typ.) | Contrast Ratio: | 700 : 1 (Typ.) [Transmission] |
| Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) | Working Mode: | IPS， Constant Black Display, Transmissive |
| Refresh Rate: | 60Hz | Touch Function: | In-Cell Touch, I²C |
| Appearance Style: | Thin Screen (PCBA Bent, Thickness ≤ 3.0mm) | Panel Application: | Notebook Computer |
| Voltage: | 3.3V (Typ.) | Maximum Rating: | Storage Temperature:- 20~60 ° C Operating Temperature: 0 ~ 50 °C |
| Interface Type: | EDP (2 Lanes) , EDP1.2 , HBR1 (2.7G/lane) , 40 Pins , Terminal, | ||
| Highlight: | 1920 x 1080 tft lcd touch screen,157PPI tft lcd touch screen,LP140WFB-SPH2 |
||
Product Description
LP140WFB-SPH2 LP140WFB (SP)(H2) LED LCD Display Laptop Screen Matrix Panel
LG Display's LP140WFB-SPH2 (alias: LP140WFB (SP) (H2)) (Product Code: LGD0632 is a 14.0-inch LCD module product using a-Si TFT-LCD technology, equipped with WLED backlight and LED driver backlight driver, In-Cell Touch. Summarizing its typical features are: touch screen, white LED backlight, LED driver included, inverted terminals, and matte surface, eDP1.2, DPCD Ver1.1, sDRRS, SSC. Its working temperature is 0~50 ° C, and its storage temperature is -20~60 ° C. This model is suitable for use in laptops. And the parameters were finally updated on August 8, 2023. According to the product specification sheet with version number Ver0.0 released by LG Display on February 15, 2019, the LP140WFB-SPH2 display has a resolution of 1920 (RGB) × 1080 (FHD), an aspect ratio of 16:9 (width: height), and pixels arranged in RGB vertical stripes. Its display area size is 309.31 × 173.99 (width × height) mm, and its appearance size is 315.81 (width) × 186.07 (height) × 5.25 (thickness) mm. The surface treatment is matte, Hard coating (3H), The net weight of the product is 310g (Max.), and the appearance style is thin screen (PCBA bent, thickness ≤ 3.0mm). In terms of backlight, this product adopts a WLED side entry light source with a lifespan of 15K hours and includes an LED driver. LP140WFB-SPH2 adopts eDP (2 Lanes) signal interface, with a total of 40 pins, connected by terminals, and a screen driving voltage of 3.3V (Typ.). Its typical vertical refresh rate Fv is 60Hz.
Packing & Shipping
Trading Process
FAQ
1.Can I purchase the products in 1 piece?
Yes,you can,but we do not recommend,because the shipping cost is very high.
2.What payment method can I use?
T/T is the best,we aslo accpet Paypal
3.When is the shipment?
Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment,
and will use third parties delivery services or delivered as clients request.
4.How long is the warranty period?
12 Months
5.How to do if there is a product quality problem?
Please contact the relevant sales as soon as possible.
