Hard Coating Color Ips Lcd Screen 30P EDP IPS LCD Laptop LP133WH2-SPB3
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | LG |
| Model Number: | LP133WH2-SPB3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 5 |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Brand: | LG | Model: | LP133WH2-SPB3 |
|---|---|---|---|
| Size: | 13.3 | Panel Type: | A-Si TFT-LCD,module |
| Resolution: | 1366(RGB)×768, WXGA, 118PPI | Pixel Layout: | RGB Vertical Stripe |
| Display Area: | 293.42(W)×164.97(H) Mm | Appearance Dimensions: | 317.2(W)×188.7(H)×3(D) Mm |
| Support Colors: | 262K , 46% NTSC | Surface Treatment Mirror: | Matte，Hard Coating (3H) |
| Brightness: | 250 Cd/m² (Typ.) | Contrast Ratio: | 700:1 (Typ.) (Transmission) |
| Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) | Working Mode: | IPS， Constant Black Display, Transmissive |
| Refresh Rate: | 60Hz | Touch Function: | No Touch |
| Appearance Style: | Thin Screen (PCBA Flat, Thickness ≤ 3.2mm) | Panel Application: | Notebook Computer |
| Voltage: | 3.3V (Typ.) | Maximum Rating: | Storage Temperature:- 20~60 ° C Operating Temperature: 0 ~ 50 °C |
| Interface Type: | EDP (1 Lane) , HBR1 (2.7G/lane) , 30 Pins ,Terminal, | ||
| Highlight: | Hard coating color ips lcd screen,color ips lcd screen 30P EDP,LP133WH2-SPB3 |
||
Product Description

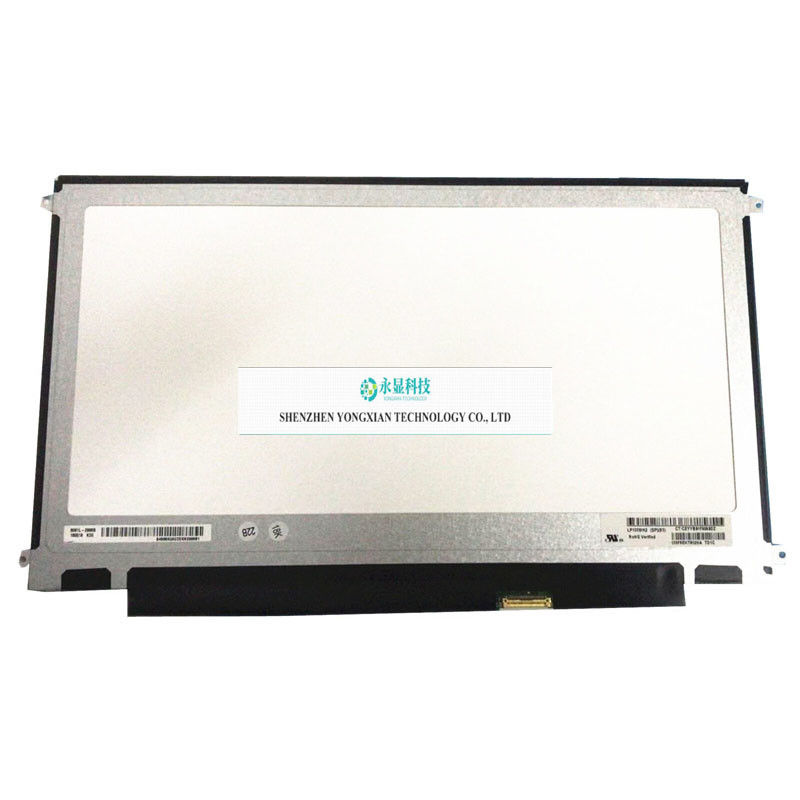

LP133WH2-SPB3 LP133WH2 (SP)(B3) 30 pin EDP IPS LCD Laptop LED Display Screen
LP133WH2-SPB3 (alias: LP133WH2 (SP) (B3) is a 13.3-inch a-Si TFT-LCD LCD module product launched by LG Display. It is equipped with WLED backlight, LED driver backlight driver, and touch free. The working temperature of this product is 0-50 ° C, the storage temperature is -20~60 ° C, and the vibration resistance is 1.0G (9.8 m/s ²). Its typical features are summarized as follows: white LED backlight, including LED driver, inverted terminals, and matte surface. Based on its feature screen library, this model is recommended for use in laptops and other products. And the parameters were finally updated on August 15, 2023. According to the product specification sheet with version number Ver0.0 released by LG Display on October 11, 2014, the LP133WH2-SPB3 has a display resolution of 1366 (RGB) × 768 (WXGA), an aspect ratio of 16:9 (width: height), and pixels arranged in RGB vertical stripes. Its display area size is 293.42 (width) × 164.97 (height) mm, and its appearance size is 317.2 (width) × 188.7 (height) × 3 (thickness) mm. The visible size is 296.45 (width) × 168.3 (height) mm, and the surface treatment is matte, Hard coating (3H), The net weight of the product is 275g (Max.), and the appearance style is thin screen (PCBA flat, thickness ≤ 3.2mm). In terms of backlight, this product adopts a WLED side entry light source with a lifespan of 12K hours and includes an LED driver. LP133WH2-SPB3 adopts eDP (1 Lane) signal interface, with a total of 30 pins, connected by terminals, and a screen driving voltage of 3.3V (Typ.). Its typical vertical refresh rate Fv is 60Hz.
