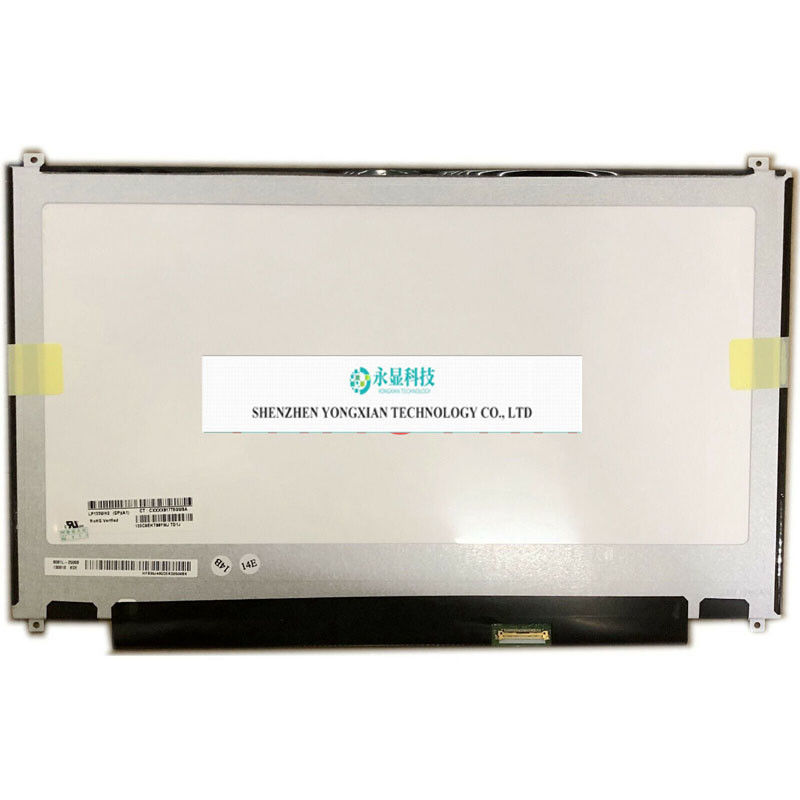

30pins LCD Laptop Screen LP133WH2-SPA1 Up Down Screw Holes
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | LG |
| Model Number: | LP133WH2-SPA1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 5 |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Brand: | LG | Model: | LP133WH2-SPA1 |
|---|---|---|---|
| Size: | 13.3 | Panel Type: | A-Si TFT-LCD,module |
| Resolution: | 1366(RGB)×768, WXGA, 118PPI | Pixel Layout: | RGB Vertical Stripe |
| Display Area: | 293.42(W)×164.97(H) Mm | Appearance Dimensions: | 306.3(W)×193.65(H)×3(D) Mm |
| Support Colors: | 262K , 45% NTSC | Surface Treatment Mirror: | Mirror (Haze 0%) |
| Brightness: | 325 Cd/m² (Typ.) | Contrast Ratio: | 700:1 (Typ.) (TM) |
| Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) | Working Mode: | IPS， Constant Black Display, Transmissive |
| Refresh Rate: | 60Hz | Touch Function: | No Touch |
| Appearance Style: | Thin Screen (PCBA Flat, Thickness ≤ 3.2mm) | Panel Application: | Notebook Computer |
| Voltage: | 3.3V (Typ.) | Maximum Rating: | Storage Temperature:- 20~60 ° C Operating Temperature: 0 ~ 50 °C |
| Interface Type: | EDP (1 Lane) , HBR1 (2.7G/lane) , 30 Pins ,Terminal, | ||
| Highlight: | 30pins Laptop Screen,LCD Laptop Screen 60Hz,LP133WH2-SPA1 |
||
Product Description
LP133WH2-SPA1 LP133WH2 (SP)(A1) 30pin up+down Screw Holes LCD Laptop LED Display
LP133WH2-SPA1 (alias: LP133WH2 (SP) (A1) (Product Code: LGD0410 is a 13.3-inch LCD module product launched by LG Display, which adopts a-Si TFT-LCD technology. It is equipped with WLED backlight, LED driver backlight driver, and touch free. According to the product specification sheet with version number Ver1.0 released by LG Display on August 21, 2013, the LP133WH2-SPA1 has a display resolution of 1366 (RGB) × 768 (WXGA), an aspect ratio of 16:9 (width: height), and pixels arranged in RGB vertical stripes. Its display area size is 293.42 × 164.97 (width × height) mm, and its appearance size is 306.3 × 193.65 (width × height) × 3 (thickness) mm. The surface treatment is mirror (Haze 0%), and the net weight of the product is 275g (Max.). The appearance style is thin screen (PCBA flat, thickness ≤ 3.2mm). In terms of backlight, this product adopts a side entry light source with 4 strings WLED emission, with a service life of 12K hours, including LED driver. LP133WH2-SPA1 adopts eDP (1 Lane) signal interface, with a total of 30 pins, connected by terminals, and a screen driving voltage of 3.3V (Typ.). Its typical vertical refresh rate Fv is 60Hz. And the parameters were finally updated on August 15, 2023. Its working temperature is 0-50 ° C, storage temperature is -20~60 ° C, and vibration resistance is 1.5G (14.7 m/s ²). Based on its white LED backlight, LED driver, inverted terminal, and mirror surface features, this model is recommended for use in laptops.
