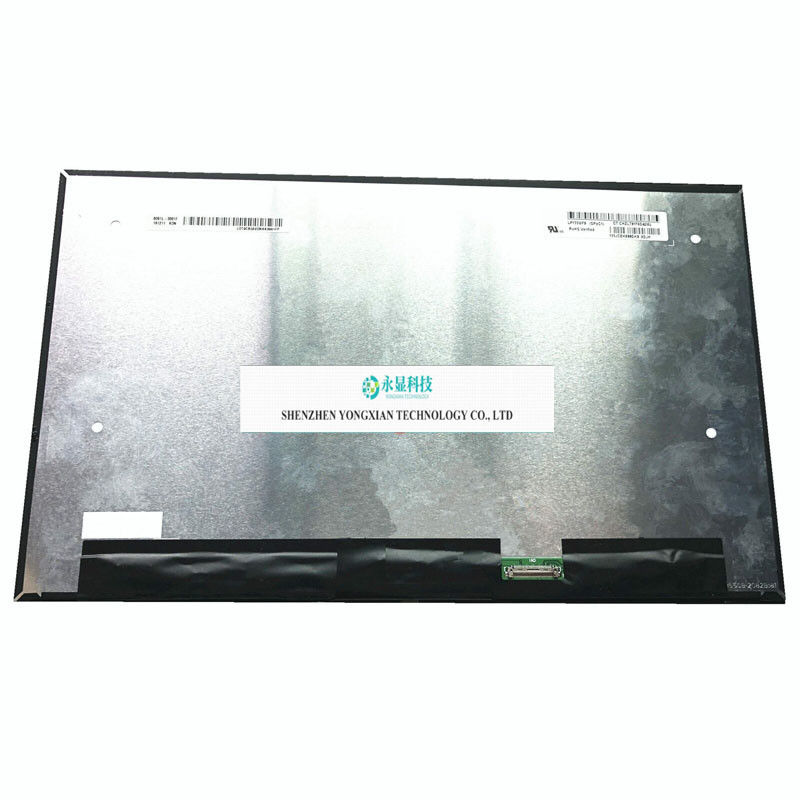

LP133WF9-SPC1 Color Lcd Panel IPS LCD LED Screen Panel Matrix
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | LG |
| Model Number: | LP133WF9-SPC1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 5 |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Brand: | LG | Model: | LP133WF9-SPC1 |
|---|---|---|---|
| Size: | 13.3 | Panel Type: | A-Si TFT-LCD,module |
| Resolution: | 1920(RGB)×1080, FHD, 166PPI | Pixel Layout: | RGB Vertical Stripe |
| Display Area: | 293.76(W)×165.24(H) Mm | Appearance Dimensions: | 298.76(W)×176.24(H)×3.8(D) Mm |
| Support Colors: | 16.7M , 100% SRGB | Surface Treatment Mirror: | Mirror Face(Haze 0%)，Hard Coating (3H) |
| Brightness: | 400 Cd/m² (Typ.) | Contrast Ratio: | 1500:1 (Typ.) (TM) |
| Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) | Working Mode: | IPS， Constant Black Display, Transmissive |
| Refresh Rate: | 60Hz | Touch Function: | No Touch |
| Appearance Style: | Thin Screen (PCBA Bent, Thickness ≤ 3.0mm) | Panel Application: | Notebook Computer |
| Voltage: | 3.3V (Typ.) | Maximum Rating: | Storage Temperature:- 20~60 ° C Operating Temperature: 0 ~ 50 °C |
| Interface Type: | EDP (2 Lanes) , EDP1.4a , HBR1 (2.7G/lane) , 30 Pins , Terminal, | ||
| Highlight: | 1500/1 ratio color lcd panel,color lcd panel IPS LCD,LP133WF9-SPC1 |
||
Product Description
LP133WF9-SPC1 LP133WF9 (SP)(C1) LP133WF9-SPC1 IPS LCD LED Screen Panel Matrix
LP133WF9-SPC1 (alias: LP133WF9 (SP) (C1) (Product Code: LGD0627 is a 13.3-inch LCD module product launched by LG Display, which adopts a-Si TFT-LCD technology. It is equipped with WLED backlight, LED driver backlight driver, and touch free. According to the product specification sheet with version number Rev1.0 released by LG Display on September 25, 2019, the LP133WF9-SPC1 display has a resolution of 1920 (RGB) × 1080 (FHD), an aspect ratio of 16:9 (width: height), and pixels arranged in RGB vertical stripes. Its display area size is 293.76 × 165.24 (width × height) mm, visible size is 295.76 × 167.54 (width × height) mm, appearance size is 298.76 × 176.24 (width × height) × 3.8 (thickness) mm, surface treatment is mirror (Haze 0%), Hard coating (3H), product net weight 170g (Max.), appearance style is thin screen (PCBA bent, thickness ≤ 3.0mm). In terms of backlight, this product adopts a WLED side entry light source with a lifespan of 15K hours and includes an LED driver. LP133WF9-SPC1 adopts eDP (2 Lanes) signal interface, with a total of 30 pins, connected by terminals, and a screen driving voltage of 3.3V (Typ.). Its typical vertical refresh rate Fv is 60Hz. And the parameters were finally updated on May 24, 2024. Its working temperature is 0-50 ° C, storage temperature is -20~60 ° C, and vibration resistance is 1.0G (9.8 m/s ²). Based on its white LED backlight, including LED driver, inverted terminals, and mirror surface, EDP1.4a, PSR, sDRRS, SSC and other features, this model is recommended for use in laptops.
Packing & Shipping
Trading Process
FAQ
1.Can I purchase the products in 1 piece?
Yes,you can,but we do not recommend,because the shipping cost is very high.
2.What payment method can I use?
T/T is the best,we aslo accpet Paypal
3.When is the shipment?
Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment,
and will use third parties delivery services or delivered as clients request.
4.How long is the warranty period?
12 Months
5.How to do if there is a product quality problem?
Please contact the relevant sales as soon as possible.
