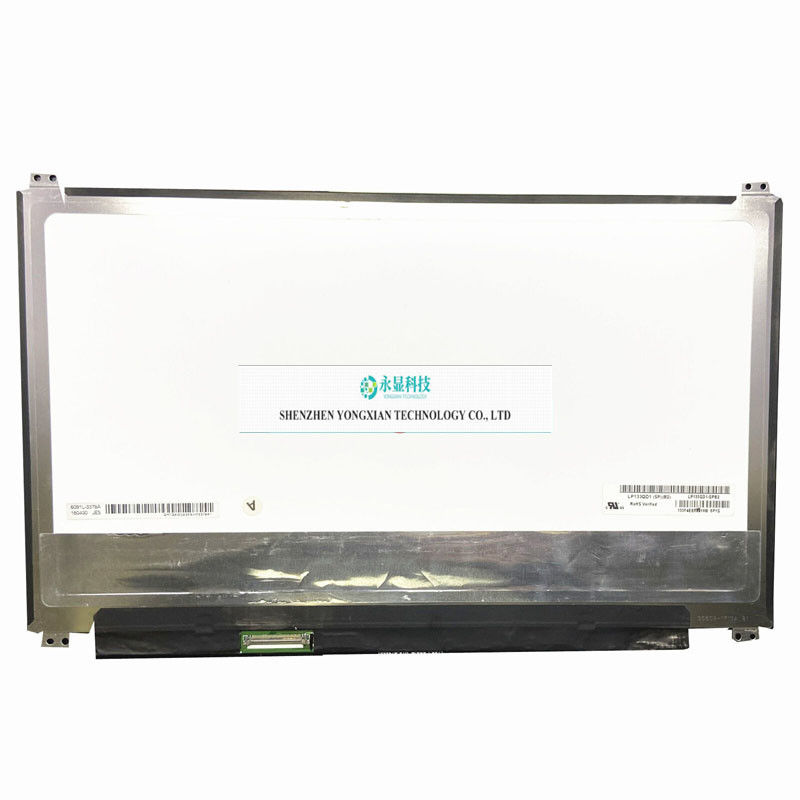

LP133QD1-SPB2 LP133QD1 SPB3 LP133QD1 SPA3 LP133QD1 SPB1 Matrix 13.3 3200X1800
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | LG |
| Model Number: | LP133QD1-SPB2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 5 |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Brand: | LG | Model: | LP133QD1-SPB2 |
|---|---|---|---|
| Size: | 13.3 | Panel Type: | A-Si TFT-LCD,module |
| Resolution: | 3200(WR/GB)×1800, 226PPI | Pixel Layout: | RG/BW LCD PenTile |
| Display Area: | 293.38(W)×165.02(H) Mm | Appearance Dimensions: | 306.15(W)×193.99(H)×2.7(D) Mm |
| Support Colors: | 16.7M , 98% SRGB | Surface Treatment Mirror: | Matte |
| Brightness: | 300 Cd/m² (Typ.) | Contrast Ratio: | 500:1 (Typ.) (TM) |
| Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) | Working Mode: | IPS， Constant Black Display, Transmissive |
| Refresh Rate: | 60Hz | Touch Function: | No Touch |
| Appearance Style: | Thin Screen (PCBA Flat, Thickness ≤ 3.2mm) | Panel Application: | Notebook Computer |
| Voltage: | 3.3V (Typ.) | Maximum Rating: | Storage Temperature:- 20~60 ° C Operating Temperature: 0 ~ 50 °C |
| Interface Type: | EDP (4 Lanes) , HBR2 (5.4G/lane) , 40 Pins , Terminal, | ||
| Highlight: | LP133QD1-SPB2,LP133QD1 SPB3,LP133QD1 SPA3 |
||
Product Description
LP133QD1-SPB2 LP133QD1 SPB3 LP133QD1 SPA3 LP133QD1 SPB1 Matrix 13.3 3200X1800
LG Display's LP130QP1-SPA1 (product code: LGD0582 is a 13.0-inch LCD module product using a-Si TFT-LCD technology. It is equipped with WLED backlight, LED driver backlight driver, and touch free. The typical features of the screen library are: white LED backlight, including LED driver, inverted terminal, and mirror surface. Its working temperature is 0-50 ° C, storage temperature is -20~60 ° C, and vibration resistance is 1.0G (9.8 m/s ²). This model is suitable for use in laptops. And the parameters were finally updated on September 21, 2023. According to the product specification sheet with version number Ver1.2 released by LG Display on November 13, 2017, the LP130QP1-SPA1 has a display resolution of 3000 (RGB) × 2000, an aspect ratio of 15:10 (width: height), and pixels arranged in RGB vertical stripes. The pixel density calculated by the screen library is 277 PPI. Its display area size is 274.5 × 183 (width × height) mm, and its appearance size is 279.5 (width) × 192.8 (height) × 3.85 (thickness) mm. The surface treatment is mirror (Haze 0%), Hard coating (3H), and the net weight of the product is 158g (Typ.). The appearance style is thin screen (PCBA bent, thickness ≤ 3.0mm). In terms of backlight, this product adopts a WLED side entry light source with a lifespan of 12K hours and includes an LED driver. LP130QP1-SPA1 adopts eDP (4 Lanes) signal interface, with a total of 40 pins, connected by terminals, and a screen driving voltage of 3.3V (Typ.). Its typical vertical refresh rate Fv is 60Hz.
