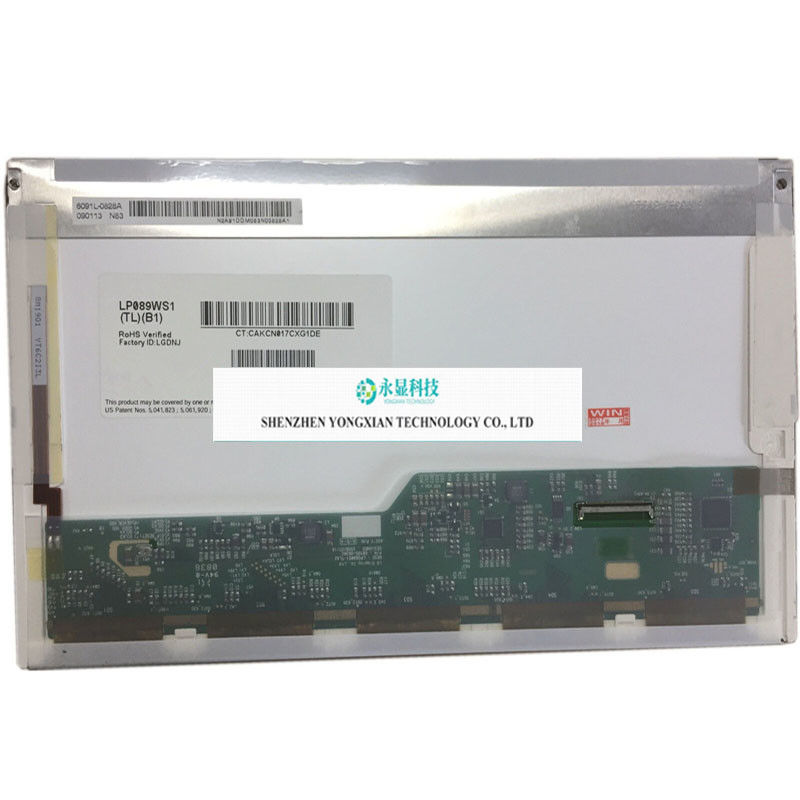

LP089WS1 TLB1 Laptop Screen N089L6-L02 B089AW01 V.0 V.3 LP089WS1-TLA1 A089SW01
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | CMO |
| Model Number: | N089L6-L02 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 5 |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Brand: | CMO | Model: | N089L6-L02 |
|---|---|---|---|
| Size: | 8.9 | Panel Type: | A-Si TFT-LCD,module |
| Resolution: | 1024(RGB)×600, WSVGA, 133PPI | Pixel Layout: | RGB Vertical Stripe |
| Display Area: | 195.072(W)×113.4(H) Mm | Appearance Dimensions: | 213.36(W)×129.55(H)×5.45(D) Mm |
| Support Colors: | 262K , 45% NTSC | Surface Treatment Mirror: | Mirror Face(Haze 0%)，Hard Coating (3H) |
| Brightness: | 200 (Typ.) | Contrast Ratio: | 400:1 (Typ.) [Transmission] |
| Viewing Angle: | 45/45/20/45 (Typ.)(CR≥10) | Working Mode: | TN， Constant White Display, Transmissive |
| Refresh Rate: | 60Hz | Touch Function: | No Touch |
| Appearance Style: | - | Panel Application: | Notebook Computer |
| Voltage: | 3.3V (Typ.) | Maximum Rating: | Storage Temperature:- 20~60 ° C Operating Temperature: 0 ~ 50 °C |
| Interface Type: | LVDS (1 Ch, 6-bit) , 40 Pins, Terminal, | ||
| Highlight: | Laptop Screen N089L6-L02,Laptop Screen 3.3V,LP089WS1 TLB1 |
||
Product Description
LP089WS1 TLB1 (TL)(B1) fit N089L6-L02 B089AW01 V.0 V.3 LP089WS1-TLA1 A089SW01
The LM156LFGL02 (product code: NCP0042 is a 15.6-inch LCD module product using Oxide TFT-LCD technology. It is equipped with WLED backlight, LED driver backlight driver, and touch free. The typical features of the screen library are summarized as follows: 120Hz, white LED backlight, including LED driver, inverted terminal, eDP1.4. Its working temperature is 0~50 ° C, and its storage temperature is -20~60 ° C. This model is suitable for use in laptops and games. And the parameters were finally updated on August 26, 2024. The LM156LFGL02 has a display resolution of 1920 (RGB) × 1080 (FHD), an aspect ratio of 16:9 (width: height), and pixels arranged in a vertical RGB stripe pattern. Its display area size is 344.16 × 193.59 (width × height) mm, and its appearance size is 350.66 (width) × 216.15 (height) × 3.2 (thickness) mm. The net weight of the product is 360g (Max.). The appearance style is thin screen (PCBA flat, thickness ≤ 3.2mm). In terms of backlight, this product adopts a WLED side entry light source with a lifespan of 15K hours and includes an LED driver. LM156LFGL02 adopts eDP (2 Lanes) signal interface and terminal connection, with a screen driving voltage of 3.3V (Typ.). Its typical vertical refresh rate Fv is 120Hz.
Packing & Shipping
Trading Process
FAQ
1.Can I purchase the products in 1 piece?
Yes,you can,but we do not recommend,because the shipping cost is very high.
2.What payment method can I use?
T/T is the best,we aslo accpet Paypal
3.When is the shipment?
Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment,
and will use third parties delivery services or delivered as clients request.
4.How long is the warranty period?
12 Months
5.How to do if there is a product quality problem?
Please contact the relevant sales as soon as possible.
