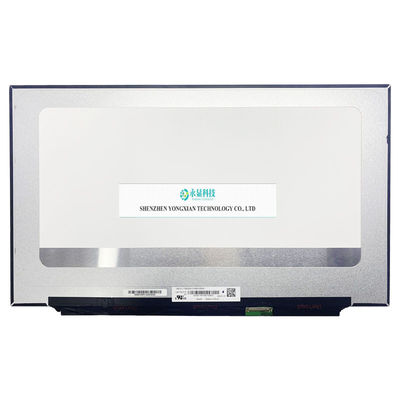

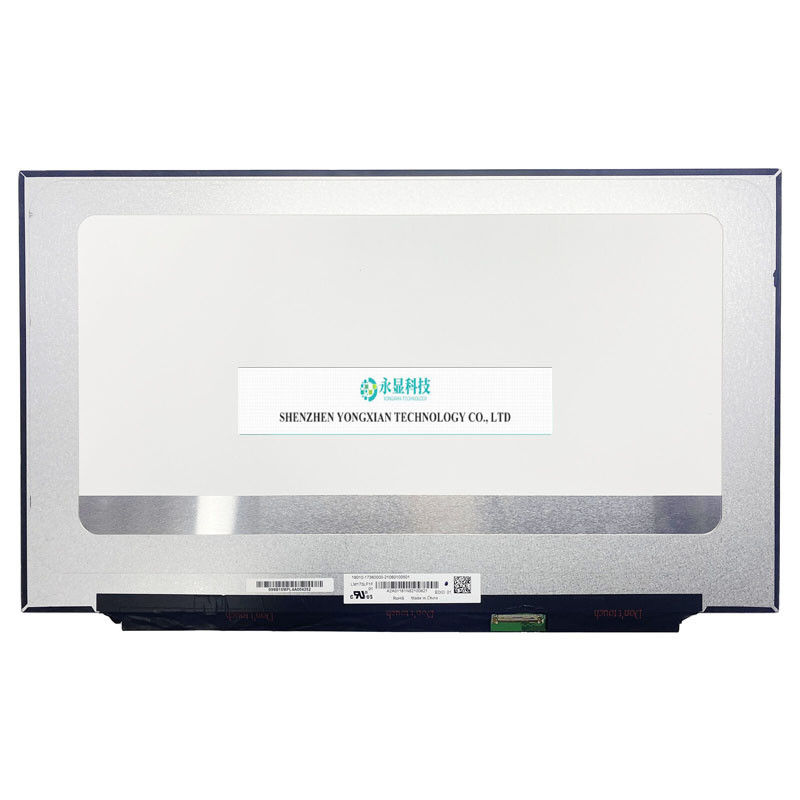

LM173LF1F01 144Hz Ips Lcd Panel IPS 17.3 Laptop LCD LCD Screen Panel NEW
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | PANDA |
| Model Number: | LM173LF1F01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 5 |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Brand: | PANDA | Model: | LM173LF1F01 |
|---|---|---|---|
| Size: | 17.3 | Panel Type: | A-Si TFT-LCD, Module |
| Resolution: | 1920(RGB)×1080, FHD, 127PPI | Pixel Layout: | RGB Vertical Stripe |
| Display Area: | 381.888(W)×214.812(H) Mm | Appearance Dimensions: | - |
| Support Colors: | 16.7M | Surface Treatment Mirror: | Hard Coating (3H) |
| Brightness: | - | Contrast Ratio: | 1000:1 (Typ.) (TM) |
| Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) | Working Mode: | FFS， Constant Black Display, Transmissive |
| Refresh Rate: | 60Hz | Touch Function: | No Touch |
| Appearance Style: | - | Panel Application: | Notebook Computer |
| Voltage: | 3.3V (Typ.) | Maximum Rating: | Storage Temperature:- 20~60 ° C Operating Temperature: 0 ~ 50 °C |
| Interface Type: | EDP (2 Lanes) , EDP1.2 , Terminal, | ||
| Highlight: | 144Hz ips lcd panel,ips lcd panel IPS 17.3 inch,LM173LF1F01 |
||
Product Description
LM173LF1F01 144Hz IPS 17.3 Laptop LCDLCD Screen Panel NEW
The LM156LFGL02 (product code: NCP0042 is a 15.6-inch LCD module product using Oxide TFT-LCD technology. It is equipped with WLED backlight, LED driver backlight driver, and touch free. The typical features of the screen library are summarized as follows: 120Hz, white LED backlight, including LED driver, inverted terminal, eDP1.4. Its working temperature is 0~50 ° C, and its storage temperature is -20~60 ° C. This model is suitable for use in laptops and games. And the parameters were finally updated on August 26, 2024. The LM156LFGL02 has a display resolution of 1920 (RGB) × 1080 (FHD), an aspect ratio of 16:9 (width: height), and pixels arranged in a vertical RGB stripe pattern. Its display area size is 344.16 × 193.59 (width × height) mm, and its appearance size is 350.66 (width) × 216.15 (height) × 3.2 (thickness) mm. The net weight of the product is 360g (Max.). The appearance style is thin screen (PCBA flat, thickness ≤ 3.2mm). In terms of backlight, this product adopts a WLED side entry light source with a lifespan of 15K hours and includes an LED driver. LM156LFGL02 adopts eDP (2 Lanes) signal interface and terminal connection, with a screen driving voltage of 3.3V (Typ.). Its typical vertical refresh rate Fv is 120Hz.
