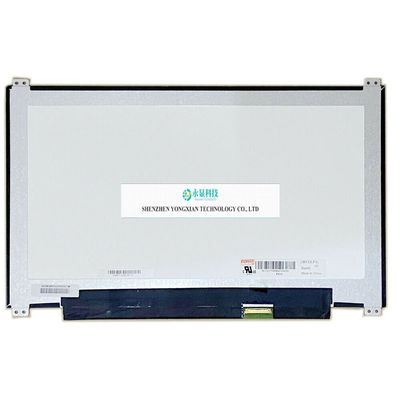

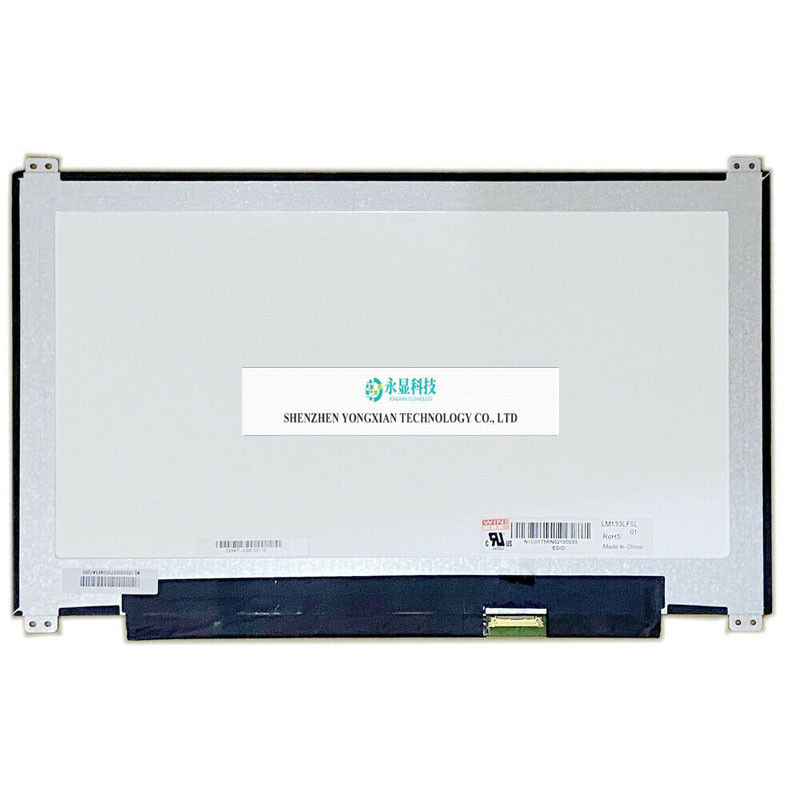

LM133LF5L01 EDP 30 Pin Ips Screen Laptop 1920X1080 Laptop LED SCREEN Panel IPS
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | PANDA |
| Model Number: | LM133LF5L01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 5 |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Brand: | PANDA | Model: | LM133LF5L01 |
|---|---|---|---|
| Size: | 13.3 | Panel Type: | Oxide TFT-LCD, Module |
| Resolution: | 1920(RGB)×1080, FHD, 166PPI | Pixel Layout: | RGB Vertical Stripe |
| Display Area: | 293.76(W)×165.24(H) Mm | Appearance Dimensions: | 305.2(W)×193.85(H)×3(D) Mm |
| Support Colors: | 16.7M , 71% NTSC | Surface Treatment Mirror: | Matte(Haze 24%) |
| Brightness: | 300 Cd/m² (Typ.) | Contrast Ratio: | 1000:1 (Typ.) (TM) |
| Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) | Working Mode: | FFS， Constant Black Display, Transmissive |
| Refresh Rate: | 60Hz | Touch Function: | No Touch |
| Appearance Style: | Thin Screen (PCBA Flat, Thickness ≤ 3.2mm) | Panel Application: | Notebook Computer |
| Voltage: | 3.3V (Typ.) | Maximum Rating: | Storage Temperature:- 20~60 ° C Operating Temperature: 0 ~ 50 °C |
| Interface Type: | EDP (2 Lanes) , EDP1.2 , HBR1 (2.7G/lane) , 30 Pins ,Terminal, | ||
| Highlight: | EDP ips screen laptop,30 pin ips screen laptop 1920X1080,LM133LF5L01 |
||
Product Description
LM133LF5L01 eDP 30 pin 1920X1080 Laptop LED SCREEN Panel IPS
The LM133LF5L01 (product code: NCP0020 is a 13.3-inch LCD module product using Oxide TFT-LCD technology. It is equipped with WLED backlight, LED driver backlight driver, and touch free. The typical features of it are summarized as follows: white LED backlight, including LED driver, inverted terminal, surface matte, eDP1.2. Its working temperature is 0~50 ° C, and its storage temperature is -20~60 ° C. This model is suitable for use in laptops. And the parameters were finally updated on July 31, 2023. According to the product specification sheet with version number Rev.01 released by China Electric Panda (PANDA) on December 21, 2016, the LM133LF5L01 has a display resolution of 1920 (RGB) × 1080 (FHD), an aspect ratio of 16:9 (width: height), and pixels arranged in RGB vertical stripes. Its display area size is 293.76 × 165.24 (width × height) mm, and its appearance size is 305.2 (width) × 193.85 (height) × 3 (thickness) mm. The surface treatment is matte (Haze 24%), and the net weight TBD appearance style of the product is thin screen (PCBA flat, thickness ≤ 3.2mm). In terms of backlight, this product adopts a WLED side entry light source with a lifespan of 10K hours, including an LED driver. LM133LF5L01 adopts eDP (2 Lanes) signal interface, with a total of 30 pins, connected by terminals, and a screen driving voltage of 3.3V (Typ.). Its typical vertical refresh rate Fv is 60Hz.
