HB156FH1-401 301 fit N156HGE-EA1 EA2 EAA EAB EB1 NV156FHM-N31 N42 30 PIN EDP
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | BOE |
| Model Number: | HB156FH1-401 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 5 |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Brand: | BOE | Model: | HB156FH1-401 |
|---|---|---|---|
| Size: | 15.6 | Panel Type: | A-Si TFT-LCD, ,module |
| Resolution: | 1920(RGB)×1080, FHD, 141PPI | Pixel Layout: | RGB Vertical Stripe |
| Display Area: | 344.16(W)×193.59(H) Mm | Appearance Dimensions: | 359.5(W)×223.8(H)×3.2(D) Mm |
| Support Colors: | 262K | Surface Treatment Mirror: | Matte，Hard Coating (3H) |
| Brightness: | 220 Cd/m² (Typ.) | Contrast Ratio: | 600:1 (Typ.) (TM) |
| Viewing Angle: | 45/45/20/40 (Typ.)(CR≥10) | Working Mode: | TN， Constant White Display, Transmissive |
| Refresh Rate: | 60Hz | Touch Function: | No Touch |
| Appearance Style: | Thin Screen (PCBA Flat, Thickness ≤ 3.2mm) | Panel Application: | Notebook Computer |
| Voltage: | 3.3V (Typ.) | Maximum Rating: | Storage Temperature:- 20~60 ° C Operating Temperature: 0 ~ 50 °C |
| Interface Type: | EDP (2 Lanes) , EDP1.2 , HBR1 (2.7G/lane) , 30 Pins , Terminal, | ||
| Highlight: | edp laptop screen,edp laptop lcd screen,30 pin laptop screen |
||
Product Description

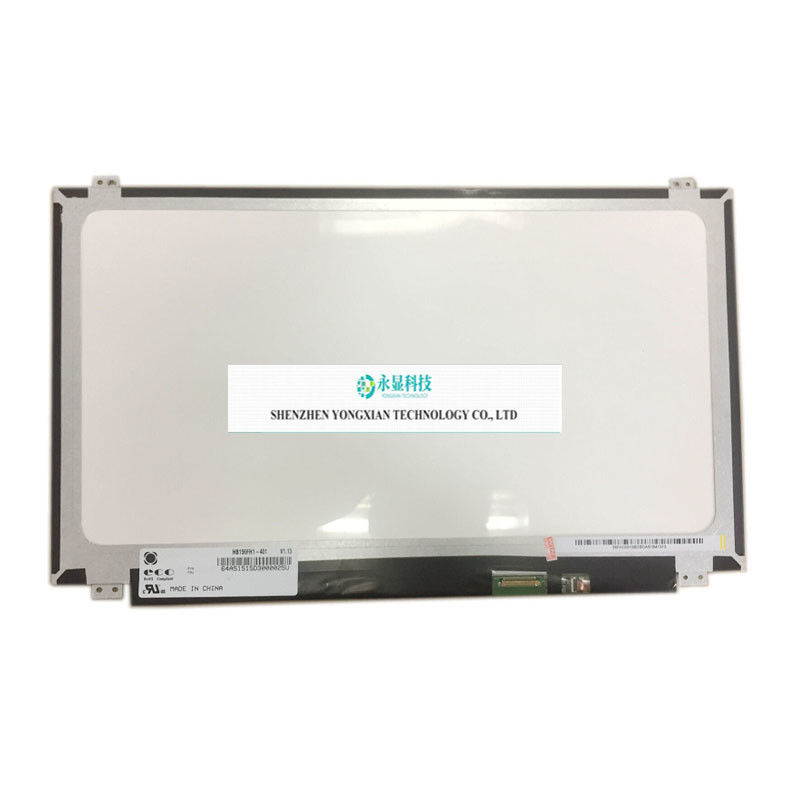

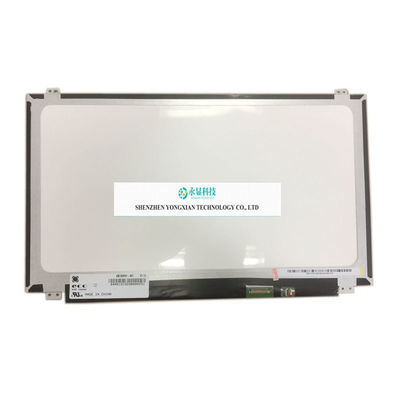

The HB156FH1-401 launched by BOE is a 15.6-inch LCD module product using a-Si TFT-LCD technology. It is equipped with WLED backlight, LED driver backlight driver, and touch free. The typical features of the screen library are: white LED backlight, including LED driver, inverted terminals, and matte surface, eDP1.2. Its working temperature is 0-50 ° C, storage temperature is -20~60 ° C, and vibration resistance is 1.5G (14.7 m/s ²). This model is suitable for use in laptops. According to the version number Rev. released by BOE on January 22, 2014 The product specification book for P0, HB156FH1-401, has a display resolution of 1920 (RGB) × 1080 (FHD), an aspect ratio of 16:9 (width: height), and pixels arranged in vertical RGB stripes. Its display area size is 344.16 × 193.59 (width × height) mm, and its appearance size is 359.5 (width) × 223.8 (height) × 3.2 (thickness) mm. The surface treatment is matte, Hard coating (3H), The net weight of the product is 370g (Max.), and the appearance style is thin screen (PCBA flat, thickness ≤ 3.2mm). In terms of backlight, this product adopts a WLED side entry light source with a lifespan of 15K hours and includes an LED driver. HB156FH1-401 adopts eDP (2 Lanes) signal interface, with a total of 30 pins, connected by terminals, and a screen driving voltage of 3.3V (Typ.). Its typical vertical refresh rate Fv is 60Hz
Packing & Shipping
Trading Process
FAQ
1.Can I purchase the products in 1 piece?
Yes,you can,but we do not recommend,because the shipping cost is very high.
2.What payment method can I use?
T/T is the best,we aslo accpet Paypal
3.When is the shipment?
Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment,
and will use third parties delivery services or delivered as clients request.
4.How long is the warranty period?
12 Months
5.How to do if there is a product quality problem?
Please contact the relevant sales as soon as possible.
