HB140FH1-401 301 fit N140HGE-EAA EA1 EBA B140HTN01.0 B140HTN01.1 B140HTN01.2
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | BOE |
| Model Number: | HB140FH1-401 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 5 |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Brand: | BOE | Model: | HB140FH1-401 |
|---|---|---|---|
| Size: | 14.0 | Panel Type: | LTPS TFT-LCD,module |
| Resolution: | 1920(RGB)×1080, FHD, 157PPI | Pixel Layout: | RGB Vertical Stripe |
| Display Area: | 309.14(W)×173.89(H) Mm | Appearance Dimensions: | 320.4(W)×205.1(H)×3(D) Mm |
| Support Colors: | 262K , 45% NTSC | Surface Treatment Mirror: | Matte，Hard Coating (3H) |
| Brightness: | 220 Cd/m² (Typ.) | Contrast Ratio: | 600:1 (Typ.) (TM) |
| Viewing Angle: | 45/45/20/40 (Typ.)(CR≥10) | Working Mode: | TN， Constant White Display, Transmissive |
| Refresh Rate: | 60Hz | Touch Function: | No Touch |
| Appearance Style: | Thin Screen (PCBA Flat, Thickness ≤ 3.2mm) | Panel Application: | Notebook Computer |
| Voltage: | 3.3V (Typ.) | Maximum Rating: | Storage Temperature:- 20~60 ° C Operating Temperature: 0 ~ 50 °C |
| Interface Type: | EDP (2 Lanes) , HBR1 (2.7G/lane) , 30 Pins ,Terminal, | ||
| Highlight: | edp laptop screen,fhd laptop screen,edp laptop lcd screen |
||

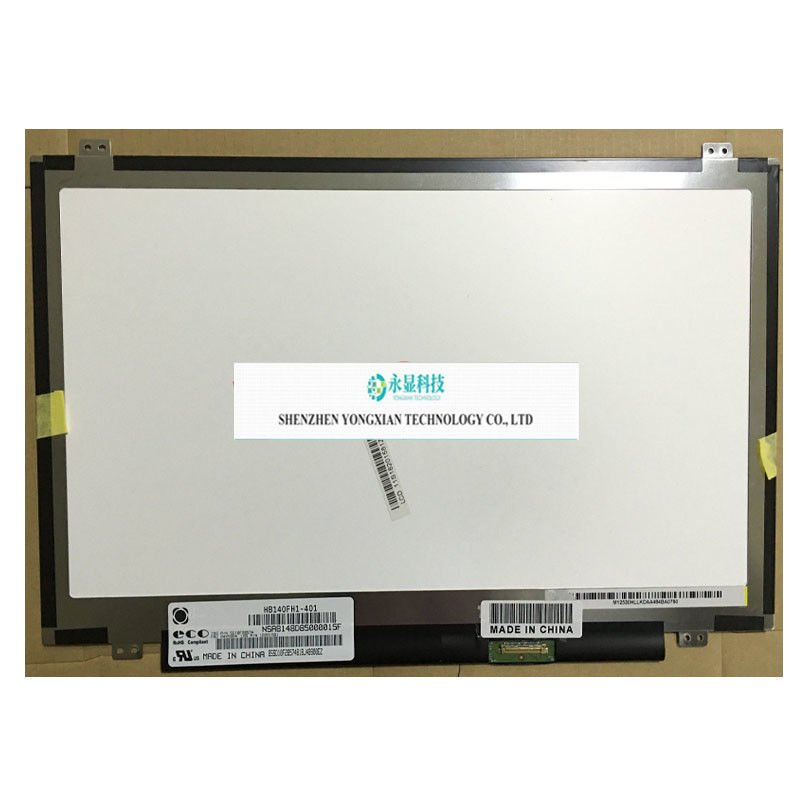

Product Description
HB140FH1-401 (Product Code: BOE05FA is a 14.0-inch LCD module product launched by BOE Technology Group Co., Ltd. (BOE) using a-Si TFT-LCD technology. It is equipped with WLED backlight, LED driver backlight driver, and touch free. According to the version number Rev. released by BOE on November 20, 2013 The product specification book for P0, HB140FH1-401, has a display resolution of 1920 (RGB) × 1080 (FHD), an aspect ratio of 16:9 (width: height), and pixels arranged in vertical RGB stripes. Its display area size is 309.14 × 173.89 (width × height) mm, and its appearance size is 320.4 × 205.1 (width × height) × 3 (thickness) mm. The surface treatment is matte, Hard coating (3H), The net weight of the product is 290g (Max.), and the appearance style is thin screen (PCBA flat, thickness ≤ 3.2mm). In terms of backlight, this product adopts a WLED side entry light source with a lifespan of 15K hours and includes an LED driver. HB140FH1-401 adopts eDP (2 Lanes) signal interface, with a total of 30 pins, connected by terminals, and a screen driving voltage of 3.3V (Typ.). Its typical vertical refresh rate Fv is 60Hz. And the parameters were finally updated on July 17, 2024. Its working temperature is 0~50 ° C, and its storage temperature is -20~60 ° C. Based on its white LED backlight, including LED driver, inverted terminals, and matte surface, For Lenovo and other features, this model is recommended for use in laptops.
Packing & Shipping
Trading Process
FAQ
1.Can I purchase the products in 1 piece?
Yes,you can,but we do not recommend,because the shipping cost is very high.
2.What payment method can I use?
T/T is the best,we aslo accpet Paypal
3.When is the shipment?
Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment,
and will use third parties delivery services or delivered as clients request.
4.How long is the warranty period?
12 Months
5.How to do if there is a product quality problem?
Please contact the relevant sales as soon as possible.
