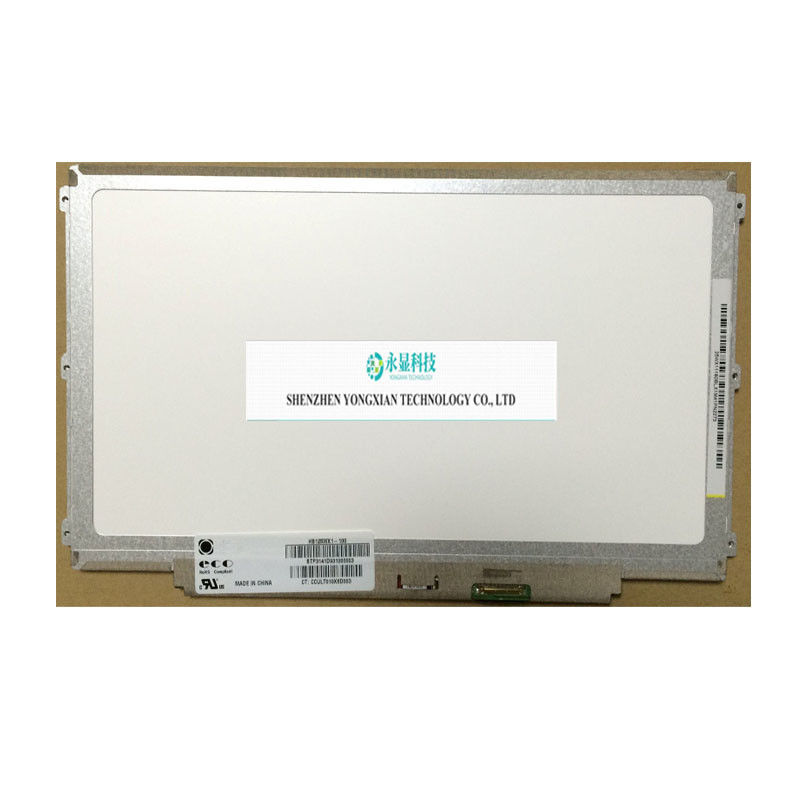

HB125WX1-100 HB125WX1-201 LAPTOP LCD SCREEN FOR HP EliteBook 820 WXGA HD 820 G1
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | BOE |
| Model Number: | HB125WX1-100 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 5 |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Brand: | BOE | Model: | HB125WX1-100 |
|---|---|---|---|
| Size: | 12.5 | Panel Type: | A-Si TFT-LCD,module |
| Resolution: | 1366(RGB)×768, WXGA, 125PPI | Pixel Layout: | RGB Vertical Stripe |
| Display Area: | 276.615(W)×155.52(H) Mm | Appearance Dimensions: | 300.4(W)×179.5(H)×3.6(D) Mm |
| Support Colors: | 262K , 50% NTSC | Surface Treatment Mirror: | Matte |
| Brightness: | 200 (Typ.) | Contrast Ratio: | 500 : 1 (Typ.) [Transmission] |
| Viewing Angle: | 45/45/20/20 (Typ.)(CR≥10) | Working Mode: | TN， Constant White Display, Transmissive |
| Refresh Rate: | 60Hz | Touch Function: | No Touch |
| Appearance Style: | Medium Thickness (PCBA Flat, Thickness 3.4-4.0mm) | Panel Application: | Notebook Computer |
| Voltage: | 3.3V (Typ.) | Maximum Rating: | Storage Temperature:- 20~60 ° C Operating Temperature: 0 ~ 50 °C |
| Interface EDP (2 Lanes) , EDP1.2 , HBR1 (2.7G/lane) , 30 Pins ,Terminal,type: | EDP (1 Lane) , HBR1 (2.7G/lane) , 30 Pins,Terminal, | ||
| Highlight: | lcd laptop screen,edp laptop screen,edp laptop lcd screen |
||
Product Description
HB125WX1-100 (Product Code: BOE05F5 is a 12.5-inch a-Si TFT-LCD LCD module product launched by BOE. It is equipped with WLED backlight, LED driver backlight driver, and touch free. The working temperature of this product is 0-50 ° C, the storage temperature is -20~60 ° C, and the vibration resistance is 1.5G (14.7 m/s ²). Its typical feature screen library is summarized as: white LED backlight, including LED driver, inverted terminal, and surface matte. And the parameters were finally updated on September 8, 2023. According to the version number Rev. released by BOE on September 16, 2013 The product specification sheet for P1 shows that the HB125WX1-100 has a display resolution of 1366 (RGB) × 768 (WXGA), an aspect ratio of 16:9 (width: height), and pixels arranged in vertical RGB stripes. Its display area size is 276.615 (width) × 155.52 (height) mm, and the appearance size is 300.4 (width) × 179.5 (height) × 3.6 (thickness) mm. The visible size is 280.215 (width) × 158.92 (height) mm, and the surface treatment is matte. The net weight of the product is 280g (Max.), and the appearance style is medium thick (PCBA flat, thickness 3.4-4.0mm). In terms of backlight, this product adopts a side entry light source with 3 strings WLED emission, and the service life of the light source is 15K hours, including LED driver. HB125WX1-100 adopts eDP (1 Lane) signal interface, with a total of 30 pins, connected by terminals, and a screen driving voltage of 3.3V (Typ.). Its typical vertical refresh rate Fv is 60Hz.
Packing & Shipping
Trading Process
FAQ
1.Can I purchase the products in 1 piece?
Yes,you can,but we do not recommend,because the shipping cost is very high.
2.What payment method can I use?
T/T is the best,we aslo accpet Paypal
3.When is the shipment?
Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment,
and will use third parties delivery services or delivered as clients request.
4.How long is the warranty period?
12 Months
5.How to do if there is a product quality problem?
Please contact the relevant sales as soon as possible.
