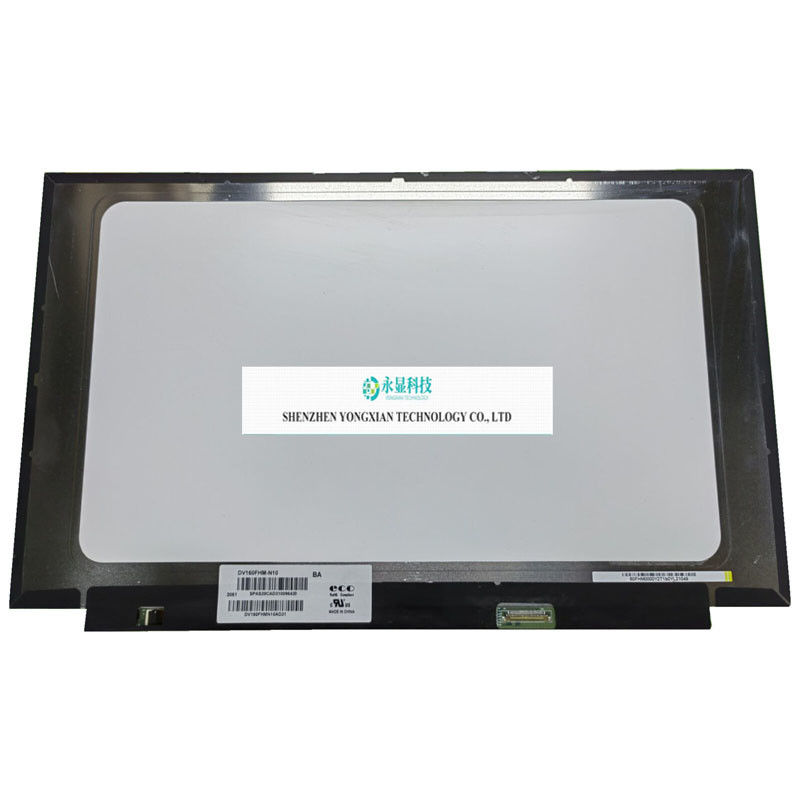

DV160FHM-N10 16.0 inch 1920X1080 30 pins 60HZ IPS Laptop LCD screen Panel NEW
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | BOE |
| Model Number: | DV160FHM-N10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 5 |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Brand: | BOE | Model: | DV160FHM-N10 |
|---|---|---|---|
| Size: | 16.0 | Panel Type: | A-Si TFT-LCD,module |
| Resolution: | 1920(RGB)×1080, FHD, 139PPI | Pixel Layout: | RGB Vertical Stripe |
| Display Area: | 349.632(W)×196.668(H) Mm | Appearance Dimensions: | 356.13(W)×219.23(H)×3.14(D) Mm |
| Support Colors: | 16.7M , 45% NTSC | Surface Treatment Mirror: | Hard Coating |
| Brightness: | 220 Cd/m² (Typ.) | Contrast Ratio: | 800:1 (Typ.) (TM) |
| Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) | Working Mode: | ADS， Constant Black Display, Transmissive |
| Refresh Rate: | 60Hz | Touch Function: | No Touch |
| Appearance Style: | - | Panel Application: | Notebook Computer |
| Voltage: | 3.3V (Typ.) | Maximum Rating: | Storage Temperature:- 20~60 ° C Operating Temperature: 0 ~ 50 °C |
| Interface Type: | EDP (2 Lanes) , EDP1.2 , HBR1 (2.7G/lane) , 30 Pins ,Terminal, | ||
| Highlight: | 60hz ips laptop,ips laptop lcd,1920x1080 lcd screen panel |
||
Product Description
DV160FHM-N10 is a 16.0-inch a-Si TFT-LCD LCD module product launched by BOE. It is equipped with WLED backlight, LED driver backlight driver, and touch free. The working temperature of this product is 0-50 ° C, the storage temperature is -20~60 ° C, and the vibration resistance is 1.5G (14.7 m/s ²). Its typical feature screen library is summarized as: white LED backlight, including LED driver, inverted terminal, eDP1.2. And the parameters were finally updated on February 16, 2024. According to the version number Rev. released by BOE on May 22, 2020 The product specification book for O shows that the DV160FHM-N10 has a display resolution of 1920 (RGB) × 1080 (FHD), an aspect ratio of 16:9 (width: height), and pixels arranged vertically in RGB stripes. Its display area size is 349.632 (width) × 196.668 (height) mm, and its appearance size is 356.13 (width) × 219.23 (height) × 3.14 (thickness) mm. The surface treatment is Hard coating, and the net weight of the product is 400g (Max.). In terms of backlight, this product adopts a WLED side entry light source with a lifespan of 15K hours and includes an LED driver. The DV160FHM-N10 adopts eDP (2 Lanes) signal interface, with a total of 30 pins, terminal connection, and a screen driving voltage of 3.3V (Typ.). Its typical vertical refresh rate Fv is 60Hz.
Trading Process
FAQ
1.Can I purchase the products in 1 piece?
Yes,you can,but we do not recommend,because the shipping cost is very high.
2.What payment method can I use?
T/T is the best,we aslo accpet Paypal
3.When is the shipment?
Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment,
and will use third parties delivery services or delivered as clients request.
4.How long is the warranty period?
12 Months
5.How to do if there is a product quality problem?
Please contact the relevant sales as soon as possible.
