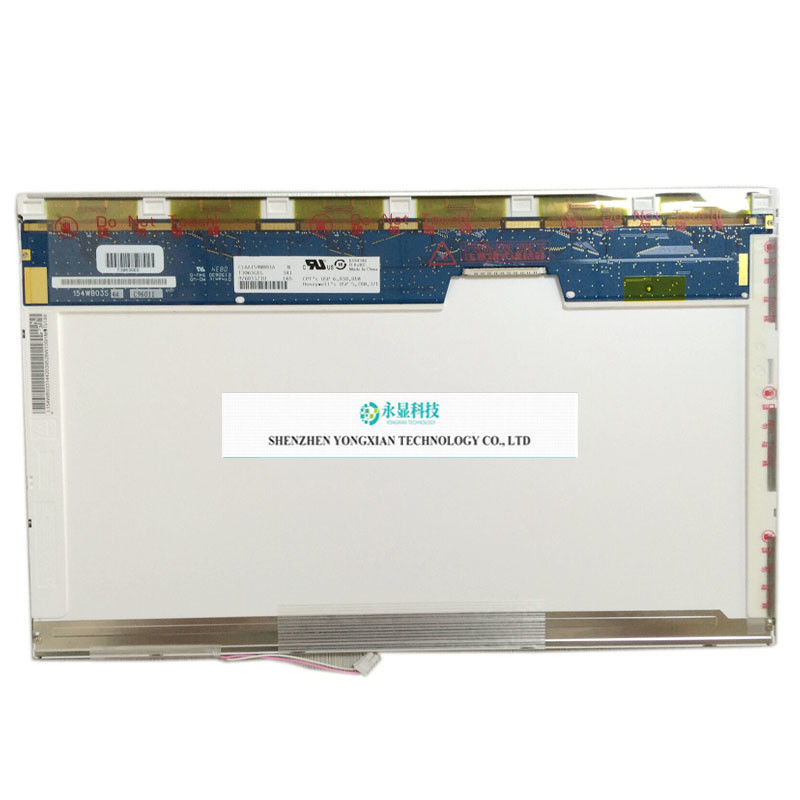

CLAA154WB03AN fit N154I2-L02 LTN154X1-L03 B154EW01 LP154WX1 LTN154X3-L0A L01
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | CPT |
| Model Number: | CLAA154WB03AN |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 5 |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Brand: | CPT | Model: | CLAA154WB03AN |
|---|---|---|---|
| Size: | 15.4 | Panel Type: | A-Si TFT-LCD,module |
| Resolution: | 1280(RGB)×800, WXGA, 98PPI | Pixel Layout: | RGB Vertical Stripe |
| Display Area: | 331.2(W)×207(H) Mm | Appearance Dimensions: | 344.5(W)×222.5(H)×6.2(D) Mm |
| Support Colors: | 262K , 45% NTSC | Surface Treatment Mirror: | Mirror Face (Haze 0%)，Hard Coating (3H) |
| Brightness: | 200 Cd/m² (Typ.) | Contrast Ratio: | 600:1 (Typ.) (TM) |
| Viewing Angle: | 45/45/15/35 (Typ.)(CR≥10) | Working Mode: | TN， Constant White Display, Transmissive |
| Refresh Rate: | 60Hz | Touch Function: | No Touch |
| Appearance Style: | Thick Screen (PCBA Bent, Thickness ≥ 5.2mm) | Panel Application: | Notebook Computer |
| Voltage: | 3.3V (Typ.) | Maximum Rating: | Storage Temperature:- 20~60 ° C Operating Temperature: 0 ~ 50 °C |
| Interface Type: | LVDS (1 Ch, 6-bit) , 30 Pins , Terminal, | ||
| Highlight: | lcd laptop screen,tft laptop screen,tft laptop lcd screen |
||
Product Description
CLAA154WB03AN (alias: CLAA154WB03 AN is a 15.4-inch LCD module product launched by China Film Tube Corporation (CPT) using a-Si TFT-LCD technology. It is equipped with CCFL backlight, no backlight driver, and no touch. According to the version number Rev. released by CPT on August 25, 2008 The product specification sheet for V1 states that the CLAA154WB03AN has a display resolution of 1280 (RGB) × 800 (WXGA), an aspect ratio of 16:10 (width: height), and pixels arranged in RGB vertical stripes. Its display area size is 331.2 × 207 (width × height) mm, visible size is 335.0 × 210.7 (width × height) mm, appearance size is 344.5 × 222.5 (width × height) × 6.2 (thickness) mm, surface treatment is mirror (Haze 0%), Hard coating (3H), product net weight 500g (Typ.) The appearance style is thick screen (PCBA bent, thickness ≥ 5.2mm). In terms of backlighting, this product uses 1 piece of CCFL emitting side entry light source (bottom), with a lifespan of 15K hours and no backlight driver included. CLAA154WB03AN adopts LVDS (1 ch, 6-bit) signal interface, with a total of 30 pins, connected by terminals, and a screen driving voltage of 3.3V (Typ.). Its typical vertical refresh rate Fv is 60Hz. And the parameters were finally updated on July 3, 2023. Its working temperature is 0~50 ° C, and its storage temperature is -25~65 ° C. Based on its surface mirror and other features, this model is recommended for use in laptops
Trading Process
FAQ
1.Can I purchase the products in 1 piece?
Yes,you can,but we do not recommend,because the shipping cost is very high.
2.What payment method can I use?
T/T is the best,we aslo accpet Paypal
3.When is the shipment?
Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment,
and will use third parties delivery services or delivered as clients request.
4.How long is the warranty period?
12 Months
5.How to do if there is a product quality problem?
Please contact the relevant sales as soon as possible.
