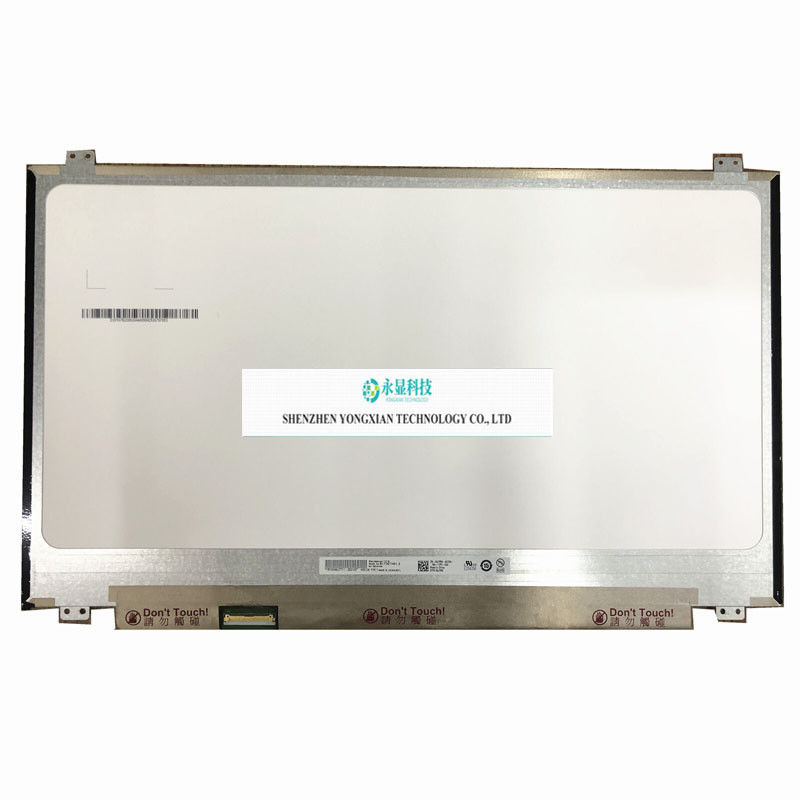

B173QTN01.5 fit B173QTN01.0 B173QTN01.1 B173QTN01.2 B173QTN01.4 3K 2560x1440
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | B173QTN01.5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 5 |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Brand: | AUO | Model: | B173QTN01.5 |
|---|---|---|---|
| Size: | 17.3 | Panel Type: | A-Si TFT-LCD,module |
| Resolution: | 2560(RGB)×1440, Quad-HD, 170PPI | Pixel Layout: | RGB Vertical Stripe |
| Display Area: | 382.08(W)×214.92(H) Mm | Appearance Dimensions: | 398.1(W)×252.5(H)×4.3(D) Mm |
| Support Colors: | 16.7M , 72% NTSC | Surface Treatment Mirror: | Matte,Hard Coating (3H) |
| Brightness: | 400 Cd/m² (Typ.) | Contrast Ratio: | 700 : 1 (Typ.) (Transmission) |
| Viewing Angle: | 70/70/60/60 (Typ.)(CR≥10) | Working Mode: | TN， Constant White Display, Transmissive |
| Refresh Rate: | 120Hz | Touch Function: | No Touch |
| Appearance Style: | Medium Thickness (PCBA Flat, Thickness 3.4-4.0mm) | Panel Application: | Notebook Computer |
| Voltage: | 3.3V (Typ.) | Maximum Rating: | Storage Temperature:- 20~60 ° C Operating Temperature: 0 ~ 50 °C |
| Interface Type: | 40 Pins EDP (4 Lanes) , EDP1.4 , Terminal, | ||
| Highlight: | edp laptop screen,lcd laptop screen,edp laptop lcd screen |
||
Product Description
AUO's B173QTN01.5 (product code: AUO1596 is a 17.3-inch LCD module product using a-Si TFT-LCD technology. It is equipped with WLED backlight, LED driver backlight driver, and touch free. To summarize its typical features: 120Hz, white LED backlight, including LED driver, inverted terminal, surface matte, eDP1.4. Its working temperature is 0~50 ° C, and its storage temperature is -20~60 ° C. This model is suitable for use in laptops. And the parameters were finally updated on August 26, 2024. According to the product specification document HW0A_Ver0.2 released by AU on August 3, 2017, B173QTN01.5 has a display resolution of 2560 (RGB) × 1440 (Quad HD), an aspect ratio of 16:9 (width: height), and pixels arranged in RGB vertical stripes. Its display area size is 382.08 × 214.92 (width × height) mm, and its appearance size is 398.1 (width) × 252.5 (height) × 4.3 (thickness) mm, with a matte surface treatment, Hard coating (3H), The net weight of the product is 550g (Max.), and the appearance style is medium thick (PCBA flat, thickness 3.4-4.0mm). In terms of backlight, this product adopts a WLED side entry light source with a lifespan of 15K hours and includes an LED driver. B173QTN01.5 adopts eDP (4 Lanes) signal interface, with a total of 40 pins, connected by terminals, and a screen driving voltage of 3.3V (Typ.). Its typical vertical refresh rate Fv is 120Hz.
Trading Process
FAQ
1.Can I purchase the products in 1 piece?
Yes,you can,but we do not recommend,because the shipping cost is very high.
2.What payment method can I use?
T/T is the best,we aslo accpet Paypal
3.When is the shipment?
Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment,
and will use third parties delivery services or delivered as clients request.
4.How long is the warranty period?
12 Months
5.How to do if there is a product quality problem?
Please contact the relevant sales as soon as possible.
