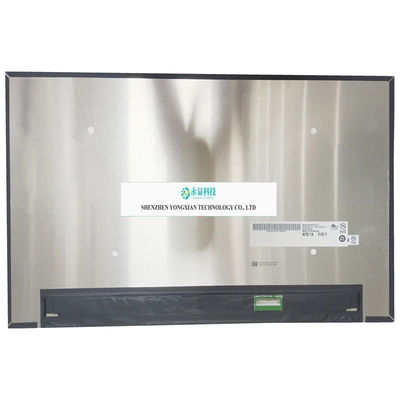

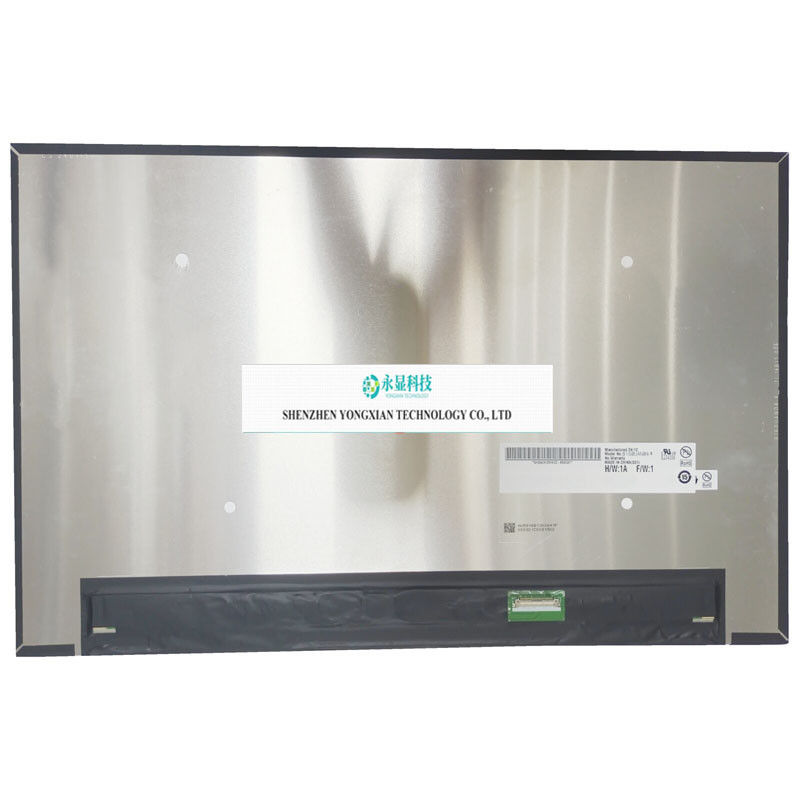

B160UAN04.4 replacement matrix panel 16.0 inch 1920X1200 laptop LCD screen
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | B160UAN04.4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 5 |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Brand: | AUO | Model: | B160UAN04.4 |
|---|---|---|---|
| Size: | 16.0 | Panel Type: | A-Si TFT-LCD,module |
| Resolution: | 1920(RGB)×1200, WUXGA, 141PPI | Pixel Layout: | RGB Vertical Stripe |
| Display Area: | 344.68(W)×215.42(H) Mm | Appearance Dimensions: | - |
| Support Colors: | 16.7M | Surface Treatment Mirror: | Hard Coating (3H) |
| Brightness: | - | Contrast Ratio: | 1200 : 1 (Typ.) (Transmission) |
| Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) | Working Mode: | AHVA， Constant Black Display, Transmissive |
| Refresh Rate: | 60Hz | Touch Function: | No Touch |
| Appearance Style: | Thin Screen (PCBA Bent, Thickness ≤ 3.0mm) | Panel Application: | Notebook Computer |
| Voltage: | 3.3V (Typ.) | Maximum Rating: | Storage Temperature:- 20~60 ° C Operating Temperature: 0 ~ 50 °C |
| Interface Type: | EDP (2 Lanes) , EDP1.4 ,Terminal, | ||
| Highlight: | lcd laptop screen,edp laptop screen,edp laptop lcd screen |
||
Product Description
B160UAN04.4 is a 16.0-inch a-Si TFT-LCD LCD module product launched by AUO. It is equipped with WLED backlight, LED driver backlight driver, and touch free. The working temperature of this product is 0-50 ° C, the storage temperature is -20~60 ° C, and the vibration resistance is 1.5G (14.7 m/s ²). Its typical feature screen library is summarized as: white LED backlight, including LED driver, and inverted terminal. On September 19, 2024, parameters were first established for this model. B160UAN04.4 has a display resolution of 1920 (RGB) × 1200 (WUXGA), an aspect ratio of 16:10 (width: height), and pixels arranged in vertical RGB stripes. Its display area size is 344.68 (width) × 215.42 (height) mm, and the surface treatment is Hard coating (3H). The appearance style is thin screen (PCBA bent, thickness ≤ 3.0mm). In terms of backlight, this product adopts a WLED side entry light source with a lifespan of 15K hours and includes an LED driver. B160UAN04.4 adopts eDP (2 Lanes) signal interface and terminal connection, with a screen driving voltage of 3.3V (Typ.). Its typical vertical refresh rate Fv is 60Hz.
Trading Process
FAQ
1.Can I purchase the products in 1 piece?
Yes,you can,but we do not recommend,because the shipping cost is very high.
2.What payment method can I use?
T/T is the best,we aslo accpet Paypal
3.When is the shipment?
Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment,
and will use third parties delivery services or delivered as clients request.
4.How long is the warranty period?
12 Months
5.How to do if there is a product quality problem?
Please contact the relevant sales as soon as possible.
