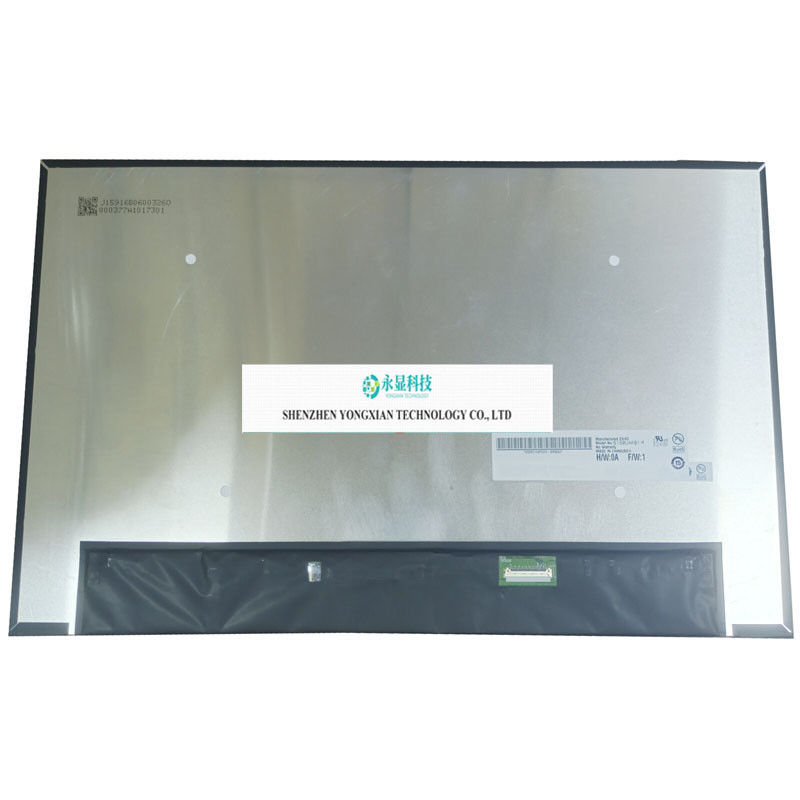

B160UAK01.H 16.0 Inch 1920X1200 Replacement Display Panel Matrix LCD screen NEW
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | B160UAK01.H |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 5 |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Brand: | AUO | Model: | B160UAK01.H |
|---|---|---|---|
| Size: | 16.0 | Panel Type: | A-Si TFT-LCD, Module |
| Resolution: | 1920(RGB)×1200, WUXGA, 141PPI | Pixel Layout: | RGB Vertical Stripe |
| Display Area: | 344.68(W)×215.42(H) Mm | Appearance Dimensions: | - |
| Support Colors: | 16.7M | Surface Treatment Mirror: | - |
| Brightness: | - | Contrast Ratio: | 1200:1 (Typ.) (TM) |
| Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) | Working Mode: | AHVA， Constant Black Display, Transmissive |
| Refresh Rate: | 60Hz | Touch Function: | On-Cell Touch |
| Appearance Style: | Thin Screen (PCBA Bent, Thickness ≤ 3.0mm) | Panel Application: | Notebook Computer |
| Voltage: | 3.3V (Typ.) | Maximum Rating: | Storage Temperature:- 20~60 ° C Operating Temperature: 0 ~ 50 °C |
| Interface Type: | EDP (2 Lanes) , EDP1.2 , Terminal, | ||
| Highlight: | lcd laptop screen,edp laptop screen,edp laptop lcd screen |
||
Product Description
B160UAK01. H is a 16.0-inch LCD module product launched by AU Optronics Corporation (AUO) using a-Si TFT-LCD technology. It is equipped with WLED backlight and includes LED driver backlight driver, On-Cell Touch. B160UAK01. H has a display resolution of 1920 (RGB) × 1200 (WUXGA), an aspect ratio of 16:10 (width: height), and pixels arranged in vertical RGB stripes. Its display area size is 344.68 × 215.42 (width × height) mm, and its appearance style is a thin screen (PCBA bent, thickness ≤ 3.0mm). In terms of backlight, this product adopts a WLED side entry light source with a lifespan of 15K hours and includes an LED driver. B160UAK01. H adopts eDP (2 Lanes) signal interface and terminal connection, with a screen driving voltage of 3.3V (Typ.). Its typical vertical refresh rate Fv is 60Hz. The screen library established parameters for this model for the first time on June 18, 2024. Its working temperature is 0-50 ° C, storage temperature is -20~60 ° C, and vibration resistance is 1.5G (14.7 m/s ²). Based on its features such as a touch screen, white LED backlight, LED driver, and inverted terminals, this model is recommended for use in laptops.
Trading Process
FAQ
1.Can I purchase the products in 1 piece?
Yes,you can,but we do not recommend,because the shipping cost is very high.
2.What payment method can I use?
T/T is the best,we aslo accpet Paypal
3.When is the shipment?
Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment,
and will use third parties delivery services or delivered as clients request.
4.How long is the warranty period?
12 Months
5.How to do if there is a product quality problem?
Please contact the relevant sales as soon as possible.
