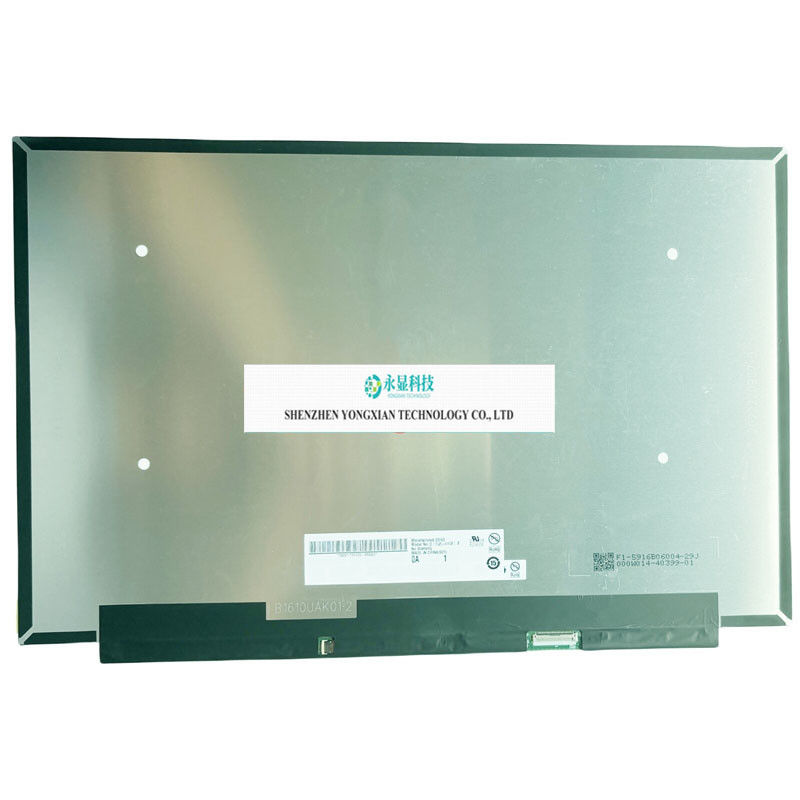

B160UAK01.2 16.0 Inch 1920X1200 Replacement Display Panel Matrix LCD screen NEW
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | B160UAK01.2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 5 |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Brand: | AUO | Model: | B160UAK01.2 |
|---|---|---|---|
| Size: | 16.0 | Panel Type: | A-Si TFT-LCD,module |
| Resolution: | 1920(RGB)×1200, WUXGA, 141PPI | Pixel Layout: | RGB Vertical Stripe |
| Display Area: | 344.68(W)×215.42(H) Mm | Appearance Dimensions: | - |
| Support Colors: | - | Surface Treatment Mirror: | - |
| Brightness: | - | Contrast Ratio: | 1000:1 (Typ.) (Transmission) |
| Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) | Working Mode: | AHVA， Constant Black Display, Transmissive |
| Refresh Rate: | - | Touch Function: | On-Cell Touch |
| Appearance Style: | Thin Screen (PCBA Flat, Thickness ≤ 3.2mm) | Panel Application: | Notebook Computer |
| Voltage: | - | Maximum Rating: | - |
| Interface Type: | - | ||
| Highlight: | lcd laptop screen,tft laptop screen,tft laptop lcd screen |
||
Product Description
B160UAK01.2 is a 16.0-inch a-Si TFT-LCD LCD module product launched by AUO, which is equipped with WLED backlight, On-Cell Touch. Its typical feature screen library is summarized as: with touch screen, white LED backlight. And the parameters were finally updated on June 18, 2024. B160UAK01.2 has a display resolution of 1920 (RGB) × 1200 (WUXGA), an aspect ratio of 16:10 (width: height), and pixels arranged in vertical RGB stripes. Its display area size is 344.68 (width) × 215.42 (height) mm, and its appearance style is a thin screen (PCBA flat, thickness ≤ 3.2mm). In terms of backlight, this product adopts a WLED side entry light source.
Trading Process
FAQ
1.Can I purchase the products in 1 piece?
Yes,you can,but we do not recommend,because the shipping cost is very high.
2.What payment method can I use?
T/T is the best,we aslo accpet Paypal
3.When is the shipment?
Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment,
and will use third parties delivery services or delivered as clients request.
4.How long is the warranty period?
12 Months
5.How to do if there is a product quality problem?
Please contact the relevant sales as soon as possible.
