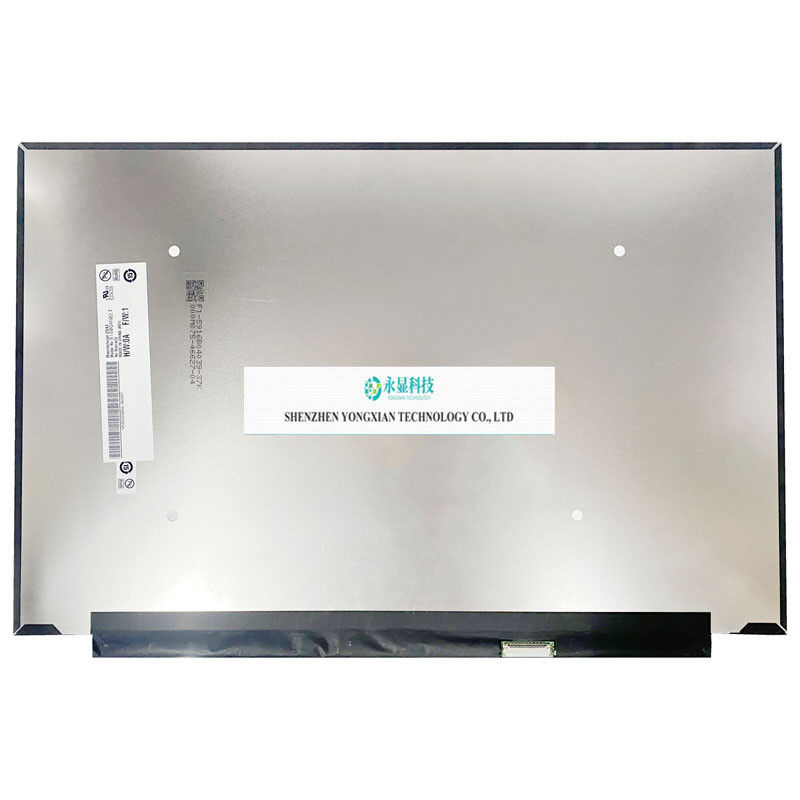

B160QAN02.Z 16.0 2560×1600 40pin EDP 2.5k 240Hz 1610 DPN 0RHJNF LCD Screen
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | B160QAN02.Z |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 5 |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Brand: | AUO | Model: | B160QAN02.Z |
|---|---|---|---|
| Size: | 16.0 | Panel Type: | LTPS TFT-LCD,module |
| Resolution: | 2560(RGB)×1600, WQXGA, 188PPI | Pixel Layout: | RGB Vertical Stripe |
| Display Area: | 344.678(W)×215.424(H) Mm | Appearance Dimensions: | 349.678(W)×234.424(H)×2.6(D) Mm |
| Support Colors: | 16.7M , 100% DCI-P3 | Surface Treatment Mirror: | Matte，Hard Coating (3H) |
| Brightness: | 300 Cd/m² (Typ.) | Contrast Ratio: | 1000:1 (Typ.) (TM) |
| Viewing Angle: | 85/85/85/85 (Max.)(CR≥10) | Working Mode: | AHVA， Constant Black Display, Transmissive |
| Refresh Rate: | 240Hz | Touch Function: | No Touch |
| Appearance Style: | Thin Screen (PCBA Flat, Thickness ≤ 3.2mm) | Panel Application: | Notebook Computer |
| Voltage: | 3.3V (Typ.) | Maximum Rating: | Storage Temperature:- 20~60 ° C Operating Temperature: 0 ~ 50 °C |
| Interface Type: | EDP (4 Lanes) , EDP1.4 , 40 Pins , Terminal, | ||
| Highlight: | edp laptop screen,edp laptop lcd screen,lcd laptop screen |
||
Product Description
B160QAN02. Z (Product Code: AUO3CA2 is a 16.0-inch LCD module product launched by AU Optronics Corporation (AUO) using LTPS TFT-LCD technology. It is equipped with WLED backlight, LED driver backlight driver, and touch free. According to the product specification document HW0A_Ver0.3 released by AU on October 12, 2022, B160QAN02. Z has a display resolution of 2560 (RGB) × 1600 (WQXGA), an aspect ratio of 16:10 (width: height), and pixels arranged in RGB vertical stripes. Its display area size is 344.678 × 215.424 (width × height) mm, and its appearance size is 349.678 × 234.424 (width × height) × 2.6 (thickness) mm. The surface treatment is matte, Hard coating (3H), The net weight of the product is 370g (Max.), and the appearance style is thin screen (PCBA flat, thickness ≤ 3.2mm). In terms of backlight, this product adopts a WLED side entry light source with a lifespan of 15K hours and includes an LED driver. B160QAN02. Z adopts eDP (4 Lanes) signal interface, with a total of 40 pins, connected by terminals, and a screen driving voltage of 3.3V (Typ.). Its typical vertical refresh rate Fv is 240Hz. Its working temperature is 0-50 ° C, storage temperature is -20~60 ° C, and vibration resistance is 1.5G (14.7 m/s ²). Based on its 240Hz, white LED backlight, LED driver, inverted terminals, matte surface, G-Sync/FreeSync, DCIP3:100%, eDP1.4, LBL, G-Sync, Free Sync, 240Hz, PSR1 and other features, this model is recommended for use in laptops and games.
Packing & Shipping
Trading Process
FAQ
1.Can I purchase the products in 1 piece?
Yes,you can,but we do not recommend,because the shipping cost is very high.
2.What payment method can I use?
T/T is the best,we aslo accpet Paypal
3.When is the shipment?
Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment,
and will use third parties delivery services or delivered as clients request.
4.How long is the warranty period?
12 Months
5.How to do if there is a product quality problem?
Please contact the relevant sales as soon as possible.
