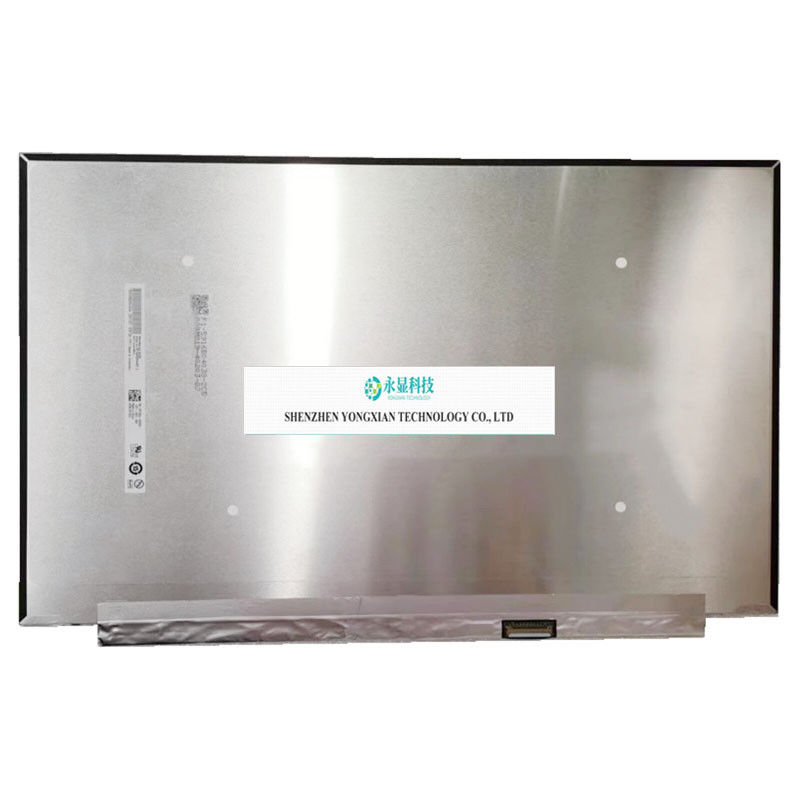

B160QAN02.0 16.0 2560×1600 40pin EDP 2.5k 165Hz 1610 LCD Screen Panel
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | B160QAN02.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 5 |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Brand: | AUO | Model: | B160QAN02.0 |
|---|---|---|---|
| Size: | 16.0 | Panel Type: | LTPS TFT-LCD,module |
| Resolution: | 2560(RGB)×1600, WQXGA, 188PPI | Pixel Layout: | RGB Vertical Stripe |
| Display Area: | 344.678(W)×215.424(H) Mm | Appearance Dimensions: | 349.678(W)×234.424(H)×2.6(D) Mm |
| Support Colors: | 16.7M , 100% SRGB | Surface Treatment Mirror: | Matte，Hard Coating (3H) |
| Brightness: | 300 Cd/m² (Typ.) | Contrast Ratio: | 1000:1 (Typ.) (Transmission) |
| Viewing Angle: | 85/85/85/85 (Max.)(CR≥10) | Working Mode: | AHVA， Constant Black Display, Transmissive |
| Refresh Rate: | 165Hz | Touch Function: | No Touch |
| Appearance Style: | Thin Screen (PCBA Flat, Thickness ≤ 3.2mm) | Panel Application: | Notebook Computer |
| Voltage: | 3.3V (Typ.) | Maximum Rating: | Storage Temperature:- 20~60 ° C Operating Temperature: 0 ~ 50 °C |
| Interface Type: | EDP (4 Lanes) , EDP1.4 , 40 Pins , Terminal, | ||
| Highlight: | edp lcd screen panel,edp lcd laptop screen,165hz lcd screen panel |
||
Product Description
B160QAN02.0 (Product Code: AUO93A2 is a 16.0-inch LTPS TFT-LCD LCD module product launched by AUO. It is equipped with WLED backlight, LED driver backlight driver, and touch free. The working temperature of this product is 0-50 ° C, the storage temperature is -20~60 ° C, and the vibration resistance is 1.5G (14.7 m/s ²). Its typical feature screen library is summarized as follows: sRGB,165Hz, White LED backlight, including LED driver, inverted terminal, surface matte, G-Sync / FreeSync, eDP1.4, 165Hz, LBL, OD, PSR1, G-Sync, Free-Sync, Adaptive Sync. According to the product specification document HW0A _Ver1.0 released by AU on January 17, 2023, B160QAN02.0 has a display resolution of 2560 (RGB) × 1600 (WQXGA), an aspect ratio of 16:10 (width: height), and pixels arranged in RGB vertical stripes. Its display area size is 344.678 (width) × 215.424 (height) mm, and its appearance size is 349.678 (width) × 234.424 (height) × 2.6 (thickness) mm. The surface treatment is matte, Hard coating (3H), The net weight of the product is 325g (Max.), and the appearance style is thin screen (PCBA flat, thickness ≤ 3.2mm). In terms of backlight, this product adopts a WLED side entry light source with a lifespan of 15K hours and includes an LED driver. B160QAN02.0 adopts eDP (4 Lanes) signal interface, with a total of 40 pins, connected by terminals, and a screen driving voltage of 3.3V (Typ.). Its typical vertical refresh rate Fv is 165Hz.
Trading Process
FAQ
1.Can I purchase the products in 1 piece?
Yes,you can,but we do not recommend,because the shipping cost is very high.
2.What payment method can I use?
T/T is the best,we aslo accpet Paypal
3.When is the shipment?
Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment,
and will use third parties delivery services or delivered as clients request.
4.How long is the warranty period?
12 Months
5.How to do if there is a product quality problem?
Please contact the relevant sales as soon as possible.
