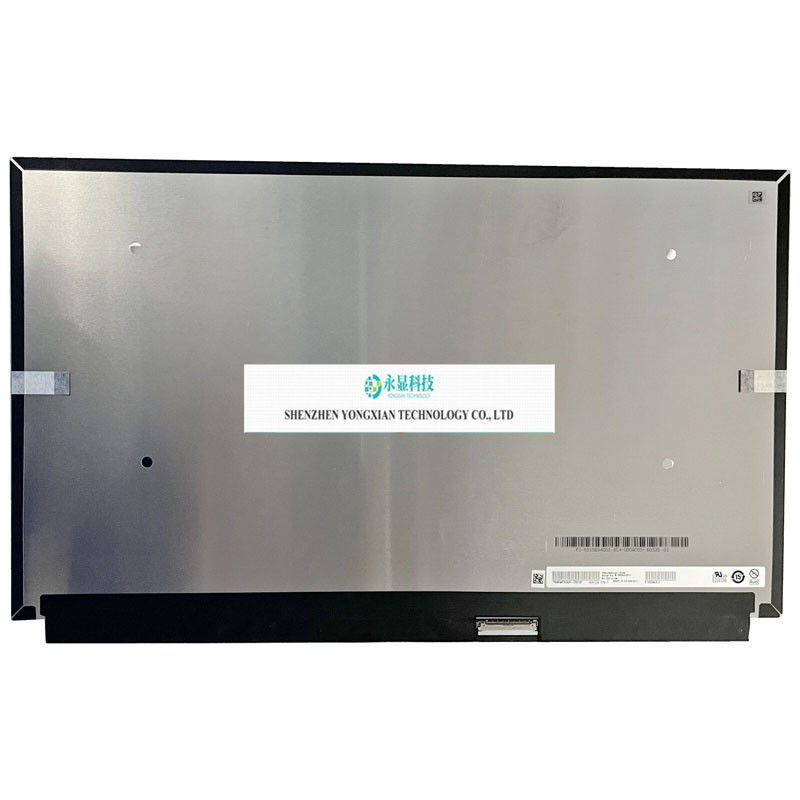

B156ZAN05.0 15.6 4K 120HZ UHD IPS LCD Screen Panel Non-Touch
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | B156ZAN05.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 5 |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Brand: | AUO | Model: | B156ZAN05.0 |
|---|---|---|---|
| Size: | 15.6 | Panel Type: | LTPS TFT-LCD,module |
| Resolution: | 3840(RGB)×2160, UHD, 283PPI | Pixel Layout: | RGB Vertical Stripe |
| Display Area: | 344.218(W)×193.622(H) Mm | Appearance Dimensions: | 348.22(W)×215.21(H)×2.6(D) Mm |
| Support Colors: | 16.7M , 100% Adobe RGB | Surface Treatment Mirror: | Mirror (Haze 0%) |
| Brightness: | 350 Cd/m² (Typ.) | Contrast Ratio: | 1000:1 (Typ.) (Transmission) |
| Viewing Angle: | 85/85/85/85 (Max.)(CR≥10) | Working Mode: | AHVA， Constant Black Display, Transmissive |
| Refresh Rate: | 120Hz | Touch Function: | No Touch |
| Appearance Style: | Thin Screen (PCBA Flat, Thickness ≤ 3.2mm) | Panel Application: | Notebook Computer |
| Voltage: | 3.3V (Typ.) | Maximum Rating: | Storage Temperature:- 20~60 ° C Operating Temperature: 0 ~ 50 °C |
| Interface Type: | 40 Pins EDP (4 Lanes) , EDP1.4 ,Terminal, | ||
| Highlight: | uhd ips lcd screen,ips lcd screen panel,15.6 ips lcd screen |
||
Product Description
AUO launches B156ZAN05.0 (product code: AUO50EB is a 15.6-inch LCD module product using LTPS TFT-LCD technology. It is equipped with Mini LED backlight, including LED driver backlight driver, and is touch free. The typical features of the screen library are summarized as follows: DCI-P3, Adobe RGB, sRGB, 120Hz, Mini LED backlight, including LED driver, inverted terminals, mirror surface. Its working temperature is 0-50 ° C, storage temperature is -20~60 ° C, and vibration resistance is 1.5G (14.7 m/s ²). This model is suitable for use in laptops. And the parameters were finally updated on May 21, 2024. According to the product specification document HW0A_Ver1.1 released by AU on October 23, 2019, B156ZAN05.0 has a display resolution of 3840 (RGB) × 2160 (UHD), an aspect ratio of 16:9 (width: height), and RGB vertical stripe arrangement of pixels. The pixel density calculated by the screen library is 283 PPI. Its display area size is 344.218 × 193.622 (width × height) mm, and its appearance size is 348.22 (width) × 215.21 (height) × 2.6 (thickness) mm. The surface treatment is mirror (Haze 0%), and the net weight of the product is 260g (Typ.). The appearance style is thin screen (PCBA flat, thickness ≤ 3.2mm). In terms of backlight, this product uses a Mini LED direct light source with a lifespan of 15K hours and includes an LED driver. B156ZAN05.0 adopts eDP (4 Lanes) signal interface, with a total of 40 pins, connected by terminals, and a screen driving voltage of 3.3V (Typ.). Its typical vertical refresh rate Fv is 120Hz.
Trading Process
FAQ
1.Can I purchase the products in 1 piece?
Yes,you can,but we do not recommend,because the shipping cost is very high.
2.What payment method can I use?
T/T is the best,we aslo accpet Paypal
3.When is the shipment?
Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment,
and will use third parties delivery services or delivered as clients request.
4.How long is the warranty period?
12 Months
5.How to do if there is a product quality problem?
Please contact the relevant sales as soon as possible.
