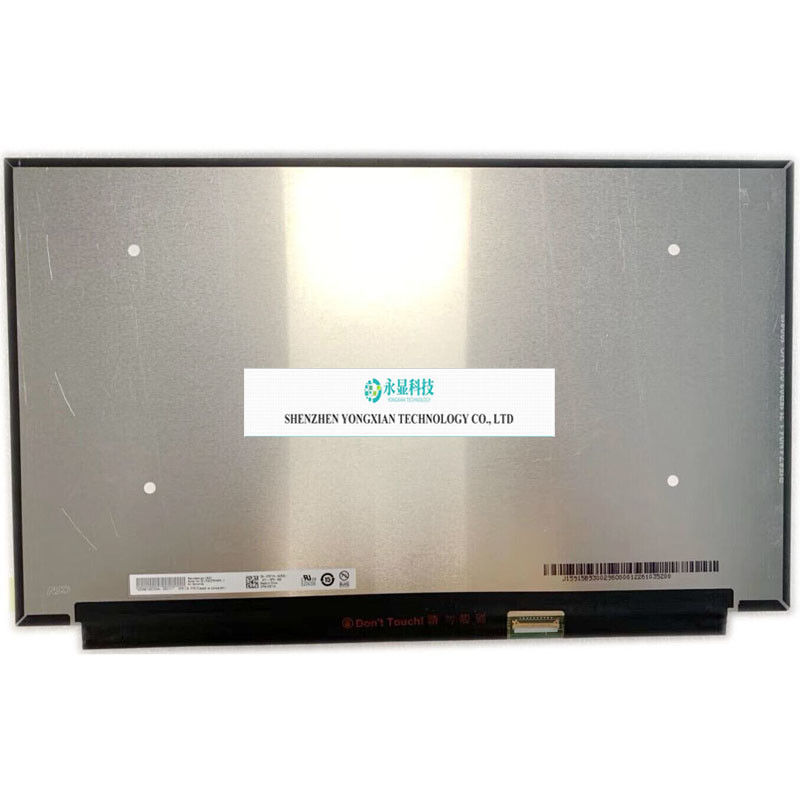

B156ZAN04.1 IPS 4K 38401260 Original LCD Display Matrix 500nit HDR eDP 40PIN
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | B156ZAN04.1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 5 |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Brand: | AUO | Model: | B156ZAN04.1 |
|---|---|---|---|
| Size: | 15.6 | Panel Type: | LTPS TFT-LCD,module |
| Resolution: | 3840(RGB)×2160, UHD, 283PPI | Pixel Layout: | RGB Vertical Stripe |
| Display Area: | 344.218(W)×193.622(H) Mm | Appearance Dimensions: | 350.66(W)×216.45(H)×3.2(D) Mm |
| Support Colors: | 1.06B , 100% Adobe RGB | Surface Treatment Mirror: | Matte |
| Brightness: | 500 Cd/m² (Typ.) | Contrast Ratio: | 1200:1 (Typ.) (TM) |
| Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) | Working Mode: | AHVA， Constant Black Display, Transmissive |
| Refresh Rate: | 60Hz | Touch Function: | No Touch |
| Appearance Style: | Thin Screen (PCBA Flat, Thickness ≤ 3.2mm) | Panel Application: | Notebook Computer |
| Voltage: | 3.3V (Typ.) | Maximum Rating: | Storage Temperature:- 20~60 ° C Operating Temperature: 0 ~ 50 °C |
| Interface Type: | EDP (4 Lanes) , EDP1.4a , HBR2 (5.4G/lane) , 40 Pins , Terminal, | ||
| Highlight: | ips laptop screen,ips laptop lcd screen,4k laptop screen |
||
Product Description
B156ZAN04.1 (Product Code: AUO41EB is a 15.6-inch LCD module product launched by AU Optronics Corporation (AUO) using LTPS TFT-LCD technology. It is equipped with WLED backlight, LED driver backlight driver, and touch free. According to the product specification document HW0A_Ver1.2 released by AU on May 15, 2019, B156ZAN04.1 has a display resolution of 3840 (RGB) × 2160 (UHD), an aspect ratio of 16:9 (width: height), and RGB vertical stripe arrangement of pixels. The calculated pixel density is 283 PPI. Its display area size is 344.218 × 193.622 (width × height) mm, and its appearance size is 350.66 × 216.45 (width × height) × 3.2 (thickness) mm. The surface treatment is matte, and the net weight of the product is 400g (Max.). The appearance style is thin screen (PCBA flat, thickness ≤ 3.2mm). In terms of backlight, this product adopts a WLED side entry light source with a lifespan of 15K hours and includes an LED driver. B156ZAN04.1 adopts eDP (4 Lanes) signal interface, with a total of 40 pins, connected by terminals, and a screen driving voltage of 3.3V (Typ.). Its typical vertical refresh rate Fv is 60Hz. And the parameters were finally updated on December 7, 2022. Its working temperature is 0-50 ° C, storage temperature is -20~60 ° C, and vibration resistance is 1.5G (14.7 m/s ²). Based on its DCI-P3, Adobe RGB,sRGB, White LED backlight, including LED driver, inverted terminal, 10 bit grayscale, surface matte, EDP1.4a and other features, this model is recommended for use in laptops.
Packing & Shipping
Trading Process
FAQ
1.Can I purchase the products in 1 piece?
Yes,you can,but we do not recommend,because the shipping cost is very high.
2.What payment method can I use?
T/T is the best,we aslo accpet Paypal
3.When is the shipment?
Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment,
and will use third parties delivery services or delivered as clients request.
4.How long is the warranty period?
12 Months
5.How to do if there is a product quality problem?
Please contact the relevant sales as soon as possible.
