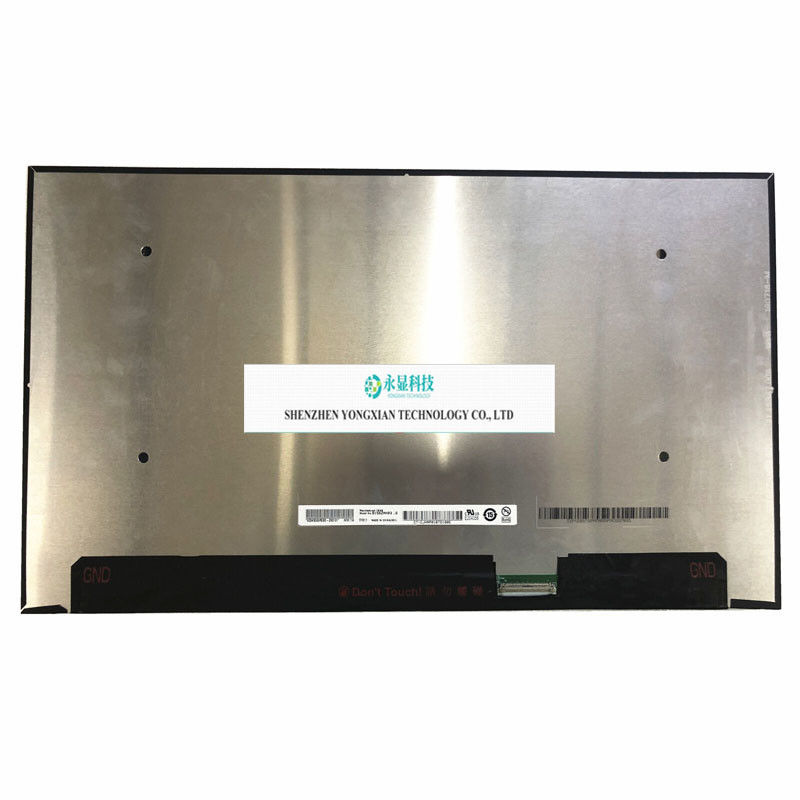

B156ZAN03.6 4K Laptop LCD Screen Panel 38402160 UHD EDP 40 PINS 100% sRGB
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | B156ZAN03.6 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 5 |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Brand: | AUO | Model: | B156ZAN03.6 |
|---|---|---|---|
| Size: | 15.6 | Panel Type: | LTPS TFT-LCD,module |
| Resolution: | 3840(RGB)×2160, UHD, 283PPI | Pixel Layout: | RGB Vertical Stripe |
| Display Area: | 344.218(W)×193.622(H) Mm | Appearance Dimensions: | 349.22(W)×205.42(H)×4.6(D) Mm |
| Support Colors: | 16.7M , 100% SRGB | Surface Treatment Mirror: | Matte |
| Brightness: | 400 Cd/m² (Typ.) | Contrast Ratio: | 1200:1 (Typ.) (Transmission) |
| Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) | Working Mode: | AHVA， Constant Black Display, Transmissive |
| Refresh Rate: | 60Hz | Touch Function: | No Touch |
| Appearance Style: | Thin Screen (PCBA Bent, Thickness ≤ 3.0mm) | Panel Application: | Notebook Computer |
| Voltage: | 3.3V (Typ.) | Maximum Rating: | Storage Temperature:- 20~60 ° C Operating Temperature: 0 ~ 50 °C |
| Interface Type: | 40 Pins EDP (4 Lanes) , EDP1.4a , HBR2 (5.4G/lane) , Terminal, | ||
| Highlight: | lcd screen panel 38402160,4k lcd screen panel,4k lcd laptop screen |
||
Product Description
B156ZAN03.6 is a 15.6-inch LTPS TFT-LCD LCD module product launched by AUO. It is equipped with WLED backlight, LED driver backlight driver, and touch free. The working temperature of this product is 0-50 ° C, the storage temperature is -20~60 ° C, and the vibration resistance is 1.5G (14.7 m/s ²). Its typical feature screen library is summarized as follows: sRGB, White LED backlight, including LED driver, inverted terminal, surface matte, eDP1.4a, PSR2. Based on its feature screen library, this model is recommended for use in laptops and other products. According to the product specification document HW1A_Ver0.1 released by AU on January 31, 2020, B156ZAN03.6 has a display resolution of 3840 (RGB) × 2160 (UHD), an aspect ratio of 16:9 (width: height), and RGB vertical stripe arrangement of pixels. The pixel density calculated by the screen library is 283 PPI. Its display area size is 344.218 (width) × 193.622 (height) mm, and its appearance size is 349.22 (width) × 205.42 (height) × 4.6 (thickness) mm. The surface treatment is matte, and the net weight of the product is 320g (Max.). The appearance style is thin screen (PCBA bent, thickness ≤ 3.0mm). In terms of backlight, this product adopts a WLED side entry light source with a lifespan of 15K hours and includes an LED driver. B156ZAN03.6 adopts eDP (4 Lanes) signal interface, with a total of 40 pins, connected by terminals, and a screen driving voltage of 3.3V (Typ.). Its typical vertical refresh rate Fv is 60Hz.
Trading Process
FAQ
1.Can I purchase the products in 1 piece?
Yes,you can,but we do not recommend,because the shipping cost is very high.
2.What payment method can I use?
T/T is the best,we aslo accpet Paypal
3.When is the shipment?
Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment,
and will use third parties delivery services or delivered as clients request.
4.How long is the warranty period?
12 Months
5.How to do if there is a product quality problem?
Please contact the relevant sales as soon as possible.
