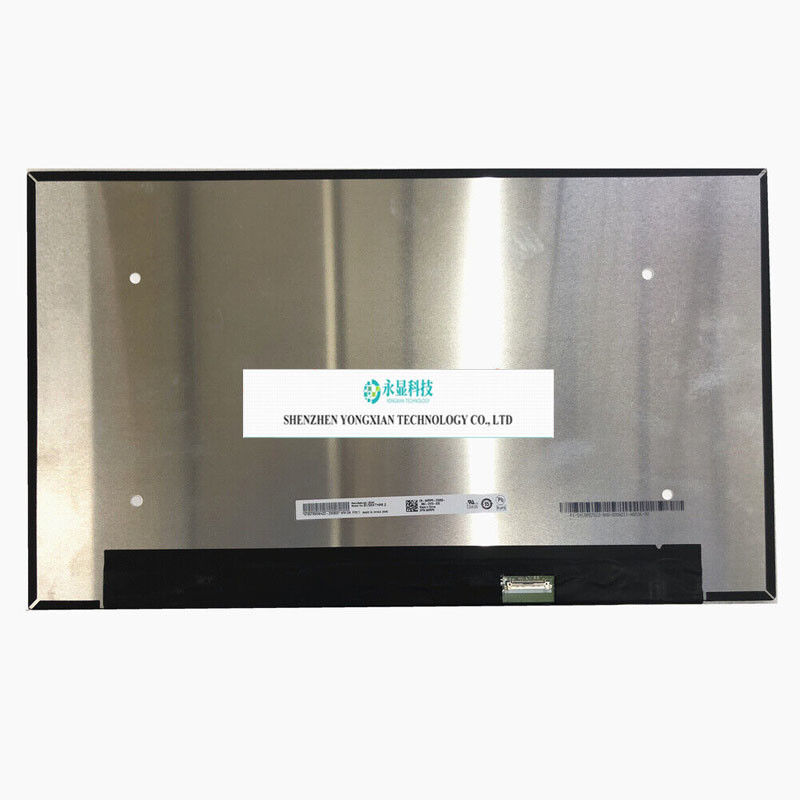

B156XTN08.2 EDP 1366x768 15.6 LED LCD Screen Display Panel 30 PIN
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | B156XTN08.2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 5 |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Brand: | AUO | Model: | B156XTN08.2 |
|---|---|---|---|
| Size: | 15.6 | Panel Type: | A-Si TFT-LCD,LCD Module |
| Resolution: | 1366(RGB)×768, WXGA, 100PPI | Pixel Layout: | RGB Vertical Stripe |
| Display Area: | 344.232(W)×193.536(H) Mm | Appearance Dimensions: | - |
| Support Colors: | 262K , 45% NTSC | Surface Treatment Mirror: | - |
| Brightness: | 220 Cd/m² (Typ.) | Contrast Ratio: | 500:1 (Typ.) (TM) |
| Viewing Angle: | 45/45/15/35 (Min.)(CR≥10) | Working Mode: | TN, Normally White Display, Transmissive |
| Refresh Rate: | 60Hz | Touch Function: | - |
| Appearance Style: | Thin Screen (PCBA Bent, Thickness ≤ 3.0mm) | Panel Application: | Notebook Computer |
| Voltage: | 3.3V (Typ.) | Maximum Rating: | Storage Temperature:- 20~60 ° C Operating Temperature: 0 ~ 50 °C |
| Interface Type: | EDP (1 Lane) , EDP1.2 , 30 Pins , Terminal, | ||
| Highlight: | 15.6 led lcd screen,edp led lcd screen,edp lcd led screen display |
||
Product Description
B156XTN08.2 is a 15.6-inch a-Si TFT-LCD LCD module product launched by AUO, which is equipped with WLED backlight and LED driver backlight driver. The working temperature of this product is 0-50 ° C, the storage temperature is -20~60 ° C, and the vibration resistance is 1.5G (14.7 m/s ²). Its typical feature screen library is summarized as: white LED backlight, including LED driver, inverted terminal, DPN:04RRP5. And the parameters were finally updated on October 25, 2022. B156XTN08.2 has a display resolution of 1366 (RGB) × 768 (WXGA), an aspect ratio of 16:9 (width: height), and pixels arranged in vertical RGB stripes. Its display area size is 344.232 (width) × 193.536 (height) mm, and the net weight of the product is 370g (Max.). The appearance style is a thin screen (PCBA bent, thickness ≤ 3.0mm). In terms of backlight, this product adopts a WLED side entry light source with a lifespan of 15K hours and includes an LED driver. B156XTN08.2 adopts eDP (1 Lane) signal interface, with a total of 30 pins, connected by terminals, and a screen driving voltage of 3.3V (Typ.). Its typical vertical refresh rate Fv is 60Hz.
Packing & Shipping
Trading Process
FAQ
1.Can I purchase the products in 1 piece?
Yes,you can,but we do not recommend,because the shipping cost is very high.
2.What payment method can I use?
T/T is the best,we aslo accpet Paypal
3.When is the shipment?
Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment,
and will use third parties delivery services or delivered as clients request.
4.How long is the warranty period?
12 Months
5.How to do if there is a product quality problem?
Please contact the relevant sales as soon as possible.
