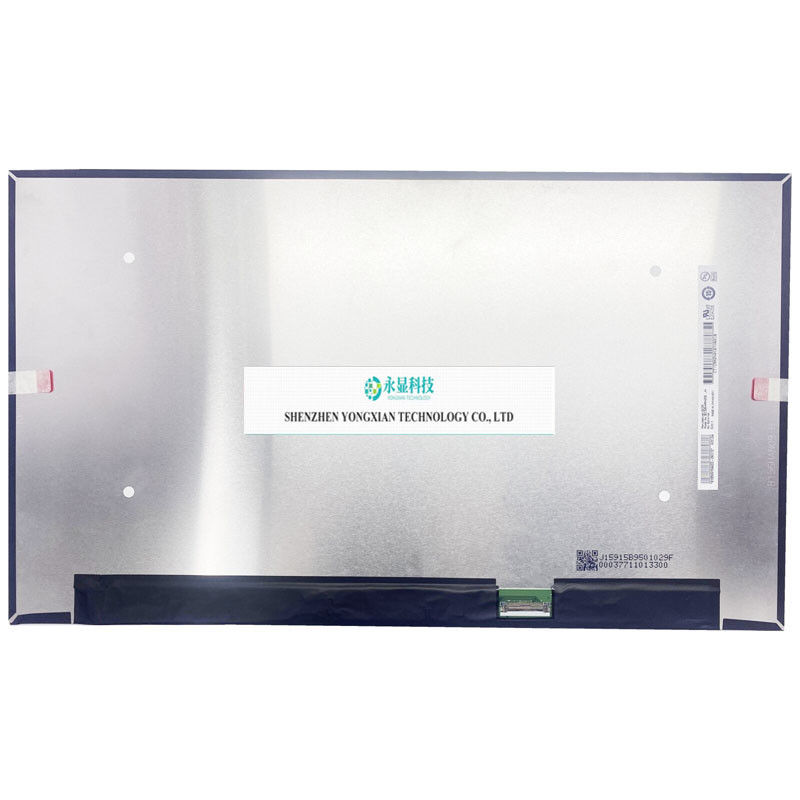

B156HAN09.H 15.6 inch Display LCD Screen 30pins IPS Panel FHD 1920x1080 NEW
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | B156HAN09.H |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 5 |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Brand: | AUO | Model: | B156HAN09.H |
|---|---|---|---|
| Size: | 15.6 | Panel Type: | A-Si TFT-LCD,LCD Module |
| Resolution: | 1920(RGB)×1080, FHD, 141PPI | Pixel Layout: | RGB Vertical Stripe |
| Display Area: | 344.16(W)×193.59(H) Mm | Appearance Dimensions: | 349.16(W)×204.49(H)×4.8(D) Mm |
| Support Colors: | 16.7M , 100% SRGB | Surface Treatment Mirror: | Matte |
| Brightness: | 400 Cd/m² (Typ.) | Contrast Ratio: | 1200 : 1 (Typ.) [Transmission] |
| Viewing Angle: | 89/89/89/89 (Max.)(CR≥10) | Working Mode: | AHVA， Constant Black Display, Transmissive |
| Refresh Rate: | 60Hz | Touch Function: | No Touch |
| Appearance Style: | Thin Screen (PCBA Bent, Thickness ≤ 3.0mm) | Panel Application: | Notebook Computer |
| Voltage: | 3.3V (Typ.) | Maximum Rating: | Storage Temperature:- 20~60 ° C Operating Temperature: 0 ~ 50 °C |
| Interface Type: | 30 Pins EDP (2 Lanes) , EDP1.4 ,Terminal, | ||
| Highlight: | 15.6 laptop screen,15.6 laptop lcd screen,lcd laptop screen |
||
Product Description
AUO launches B156HAN09. H (product code: AUO34A6 is a 15.6-inch LCD module product using a-Si TFT-LCD technology. It is equipped with WLED backlight, LED driver backlight driver, and touch free. The typical features of the screen library are summarized as follows: sRGB, White LED backlight, including LED driver, inverted terminal, surface matte, eDP1.4, LBL, PSR2. Its working temperature is 0-50 ° C, storage temperature is -20~60 ° C, and vibration resistance is 1.5G (14.7 m/s ²). This model is suitable for use in laptops. According to the product specification document HW0A_Ver.6 released by AU on April 18, 2023, B156HAN09. H has a display resolution of 1920 (RGB) × 1080 (FHD), an aspect ratio of 16:9 (width: height), and pixels arranged in a vertical RGB stripe pattern. Its display area size is 344.16 × 193.59 (width × height) mm, and its appearance size is 349.16 (width) × 204.49 (height) × 4.8 (thickness) mm. The surface treatment is matte, and the net weight of the product is 310g (Max.). The appearance style is thin screen (PCBA bent, thickness ≤ 3.0mm). In terms of backlight, this product adopts a WLED side entry light source with a lifespan of 15K hours and includes an LED driver. B156HAN09. H adopts eDP (2 Lanes) signal interface, with a total of 30 pins, connected by terminals, and a screen driving voltage of 3.3V (Typ.). Its typical vertical refresh rate Fv is 60Hz.
Packing & Shippin
Trading Process
FAQ
1.Can I purchase the products in 1 piece?
Yes,you can,but we do not recommend,because the shipping cost is very high.
2.What payment method can I use?
T/T is the best,we aslo accpet Paypal
3.When is the shipment?
Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment,
and will use third parties delivery services or delivered as clients request.
4.How long is the warranty period?
12 Months
5.How to do if there is a product quality problem?
Please contact the relevant sales as soon as possible.
