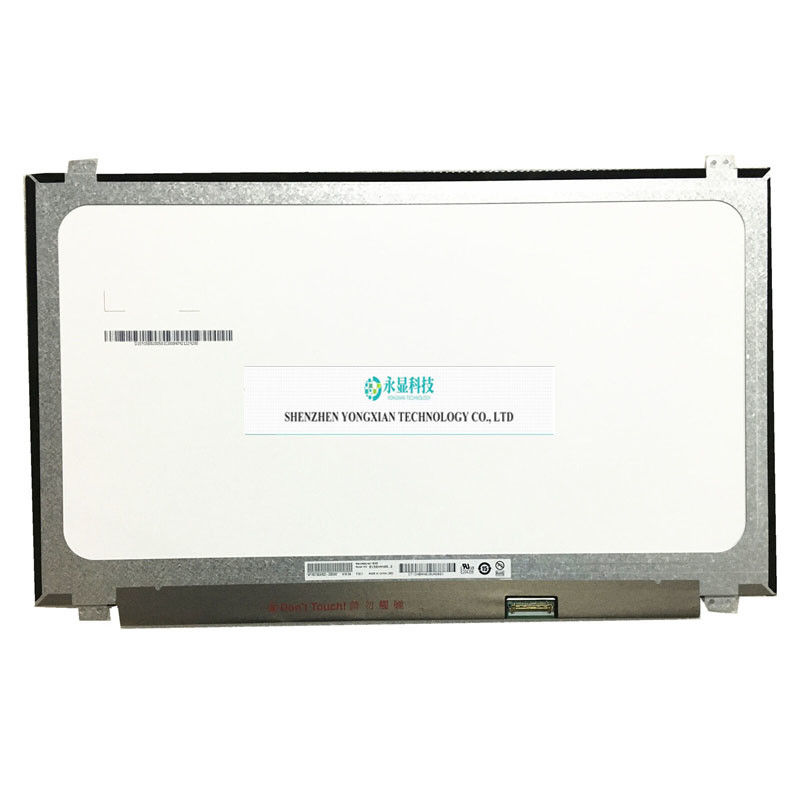

B156HAN06.2 fit B156HAN06.1 15.6''inch Laptop Lcd Screen EDP 30 Pins IPS
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | B156HAN06.2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 5 |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Brand: | AUO | Model: | B156HAN06.2 |
|---|---|---|---|
| Size: | 15.6 | Panel Type: | A-Si TFT-LCD,LCD Module |
| Resolution: | 1920(RGB)×1080, FHD, 141PPI | Pixel Layout: | RGB Vertical Stripe |
| Display Area: | 344.16(W)×193.59(H) Mm | Appearance Dimensions: | 359.5(W)×223.8(H)×3.4(D) Mm |
| Support Colors: | 262K , 45% NTSC | Surface Treatment Mirror: | Mirror (Haze 0%) |
| Brightness: | 220 Cd/m² (Typ.) | Contrast Ratio: | 700 : 1 (Typ.) [Transmission] |
| Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) | Working Mode: | AHVA， Constant Black Display, Transmissive |
| Refresh Rate: | 60Hz | Touch Function: | No Touch |
| Appearance Style: | Thin Screen (PCBA Flat, Thickness ≤ 3.2mm) | Panel Application: | Notebook Computer |
| Voltage: | 3.3V (Typ.) | Maximum Rating: | Storage Temperature:- 20~60 ° C Operating Temperature: 0 ~ 50 °C |
| Interface Type: | 40 Pins EDP (2 Lanes) , ,Terminal, | ||
| Highlight: | laptop lcd screen edp,15.6 laptop screen,15.6 laptop lcd screen |
||
Product Description
B156HAN06.2 HWAA (Product Code: AUO62ED is a 15.6-inch a-Si TFT-LCD LCD module product launched by AUO. It is equipped with WLED backlight, LED driver backlight driver, and touch free. The working temperature of this product is 0-50 ° C, the storage temperature is -20~60 ° C, and the vibration resistance is 1.5G (14.7 m/s ²). Its typical feature screen library is summarized as: white LED backlight, including LED driver, inverted terminal, and mirror surface. And the parameters were finally updated on August 30, 2022. According to the product specification sheet with version number Ver0.1 released by AU on March 23, 2017, B156HAN06.2 HWAA has a display resolution of 1920 (RGB) × 1080 (FHD), an aspect ratio of 16:9 (width: height), and pixels arranged in RGB vertical stripes. Its display area size is 344.16 (width) × 193.59 (height) mm, and its appearance size is 359.5 (width) × 223.8 (height) × 3.4 (thickness) mm. The surface treatment is mirror (Haze 0%), and the net weight of the product is 380g (Max.). The appearance style is thin screen (PCBA flat, thickness ≤ 3.2mm). In terms of backlight, this product adopts a WLED side entry light source with a lifespan of 15K hours and includes an LED driver. B156HAN06.2 HWAA adopts eDP (2 Lanes) signal interface, with a total of 40 pins, connected by terminals, and a screen driving voltage of 3.3V (Typ.). Its typical vertical refresh rate Fv is 60Hz.
Packing & Shipping
Trading Process
FAQ
1.Can I purchase the products in 1 piece?
Yes,you can,but we do not recommend,because the shipping cost is very high.
2.What payment method can I use?
T/T is the best,we aslo accpet Paypal
3.When is the shipment?
Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment,
and will use third parties delivery services or delivered as clients request.
4.How long is the warranty period?
12 Months
5.How to do if there is a product quality problem?
Please contact the relevant sales as soon as possible.
