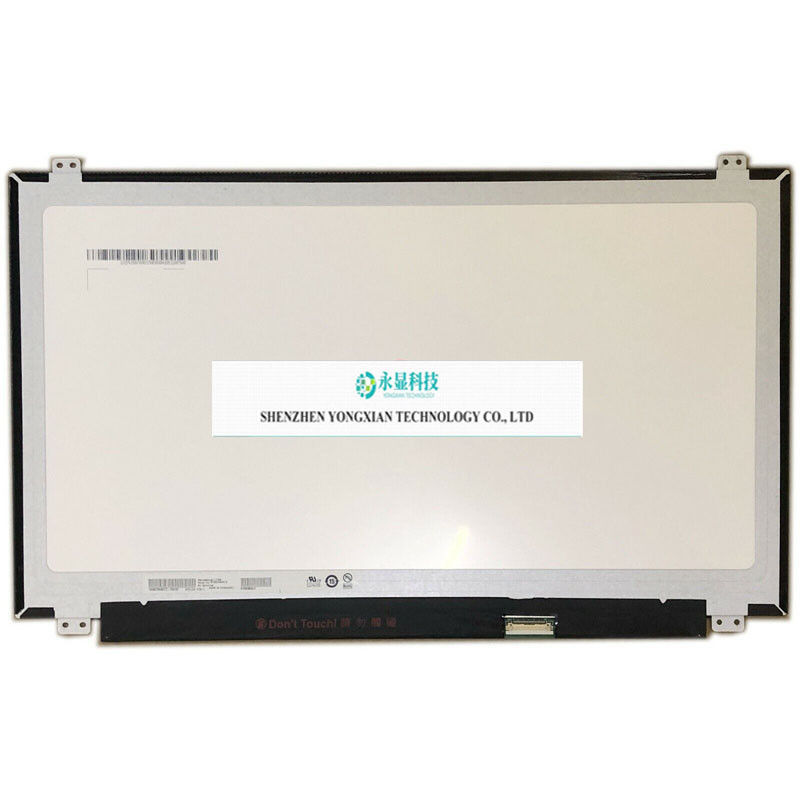

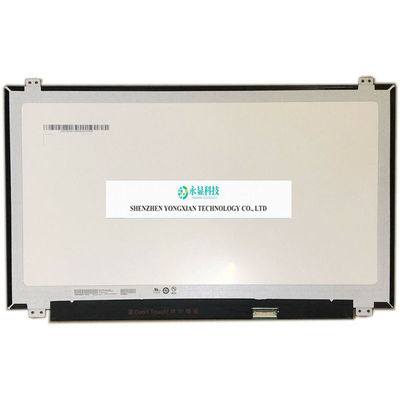

B156HAN04.2 120hz FHD fit B156HTN05.1 LCD Screen LCD Screen 15.6 EDP FHD LED
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | B156HAN04.2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 5 |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Brand: | AUO | Model: | B156HAN04.2 |
|---|---|---|---|
| Size: | 15.6 | Panel Type: | A-Si TFT-LCD,LCD Module |
| Resolution: | 1920(RGB)×1080, FHD, 141PPI | Pixel Layout: | RGB Vertical Stripe |
| Display Area: | 344.16(W)×193.59(H) Mm | Appearance Dimensions: | 359.5(W)×223.8(H)×3.2(D) Mm |
| Support Colors: | 16.7M , 72% NTSC | Surface Treatment Mirror: | Matte |
| Brightness: | 300 (Typ.) | Contrast Ratio: | 800 : 1 (Typ.) [Transmission] |
| Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) | Working Mode: | AHVA， Constant Black Display, Transmissive |
| Refresh Rate: | 120Hz | Touch Function: | No Touch |
| Appearance Style: | Thin Screen (PCBA Flat, Thickness ≤ 3.2mm) | Panel Application: | Notebook Computer |
| Voltage: | 3.3V (Typ.) | Maximum Rating: | Storage Temperature:- 20~60 ° C Operating Temperature: 0 ~ 50 °C |
| Interface Type: | EDP (2 Lanes) , 30 Pins ,Terminal, | ||
| Highlight: | 120hz laptop screen,120hz laptop lcd screen,fhd laptop screen |
||
Product Description
B156HAN04.2 (Product Code: AUO42ED is a 15.6-inch LCD module product launched by AU Optronics Corporation (AUO) using a-Si TFT-LCD technology. It is equipped with WLED backlight, LED driver backlight driver, and touch free. According to the product specification document HW0A_Ver0.1 released by AU on June 5, 2017, B156HAN04.2 has a display resolution of 1920 (RGB) × 1080 (FHD), an aspect ratio of 16:9 (width: height), and RGB vertical stripe arrangement of pixels. Its display area size is 344.16 × 193.59 (width × height) mm, and its appearance size is 359.5 × 223.8 (width × height) × 3.2 (thickness) mm. The surface treatment is matte, and the net weight of the product is 350g (Max.). The appearance style is thin screen (PCBA flat, thickness ≤ 3.2mm). In terms of backlight, this product adopts a WLED side entry light source with a lifespan of 15K hours and includes an LED driver. B156HAN04.2 adopts eDP (2 Lanes) signal interface, with a total of 30 pins, connected by terminals, and a screen driving voltage of 3.3V (Typ.). Its typical vertical refresh rate Fv is 120Hz. And the parameters were finally updated on August 30, 2024. Its working temperature is 0-50 ° C, storage temperature is -20~60 ° C, and vibration resistance is 1.5G (14.7 m/s ²). Based on its 120Hz, white LED backlight, LED driver, inverted terminals, and matte surface, this model is recommended for use in laptops and games.
Packing & Shipping
Trading Process
FAQ
1.Can I purchase the products in 1 piece?
Yes,you can,but we do not recommend,because the shipping cost is very high.
2.What payment method can I use?
T/T is the best,we aslo accpet Paypal
3.When is the shipment?
Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment,
and will use third parties delivery services or delivered as clients request.
4.How long is the warranty period?
12 Months
5.How to do if there is a product quality problem?
Please contact the relevant sales as soon as possible.
