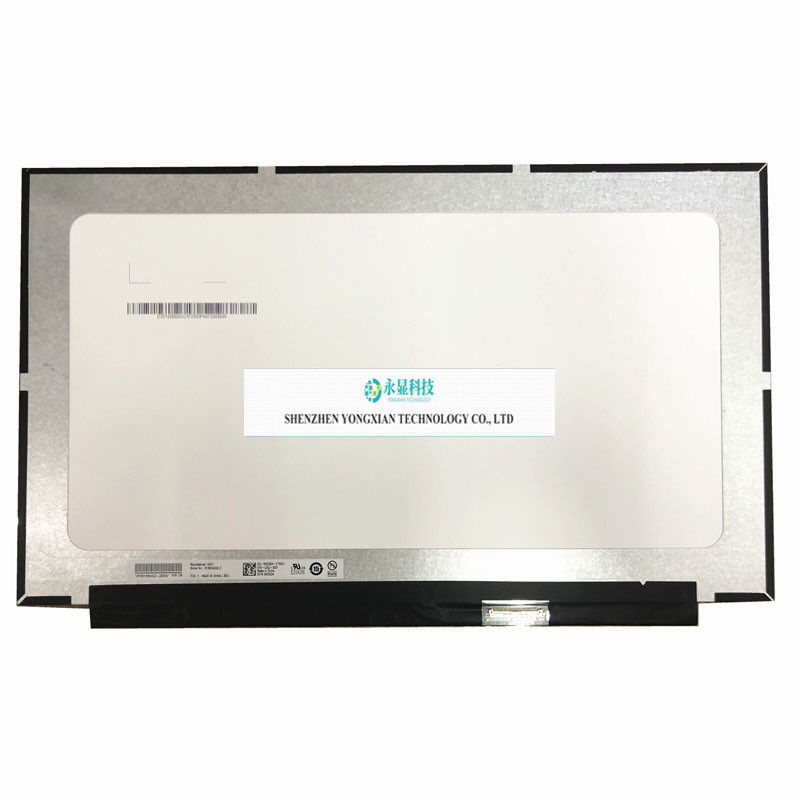

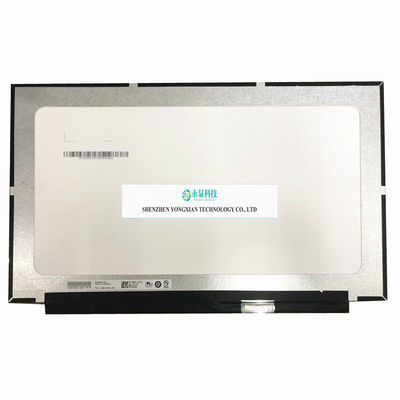

B156HAK02.3 LCD LED Touch Screen 15.6 FHD Replacement Panel + Digitizer New
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | B156HAK02.3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 5 |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Brand: | AUO | Model: | B156HAK02.3 |
|---|---|---|---|
| Size: | 15.6 | Panel Type: | A-Si TFT-LCD,LCD Module |
| Resolution: | 1920(RGB)×1080, FHD, 141PPI | Pixel Layout: | RGB Vertical Stripe |
| Display Area: | 344.16(W)×193.59(H) Mm | Appearance Dimensions: | 350.66(W)×216.15(H)×3.2(D) Mm |
| Support Colors: | 262K , 45% NTSC | Surface Treatment Mirror: | Matte，Hard Coating (3H) |
| Brightness: | 220 (Typ.) | Contrast Ratio: | 700 : 1 (Typ.) [Transmission] |
| Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) | Working Mode: | AHVA， Constant Black Display, Transmissive |
| Refresh Rate: | 60Hz | Touch Function: | On-Cell Touch, I²C |
| Appearance Style: | Thin Screen (PCBA Flat, Thickness ≤ 3.2mm) | Panel Application: | Notebook Computer |
| Voltage: | 3.3V (Typ.) | Maximum Rating: | Storage Temperature:- 20~60 ° C Operating Temperature: 0 ~ 50 °C |
| Interface Type: | EDP (2 Lanes) , EDP1.2 , 40 Pins，Terminal, | ||
| Highlight: | lcd led touch screen,led touch screen 15.6,lcd ips led screen |
||
Product Description
AUO launches B156HAK02.3 (product code: AUOEB83 is a 15.6-inch LCD module product using a-Si TFT-LCD technology, equipped with WLED backlight and LED driver backlight driver, On-Cell Touch. Summarizing its typical features are: touch screen, white LED backlight, LED driver included, inverted terminals, and matte surface, eDP1.2. Its working temperature is 0-50 ° C, storage temperature is -20~60 ° C, and vibration resistance is 1.5G (14.7 m/s ²). And the parameters were finally updated on October 26, 2022. According to the product specification document HW0A_Ver1.1 released by AU on August 8, 2019, B156HAK02.3 has a display resolution of 1920 (RGB) × 1080 (FHD), an aspect ratio of 16:9 (width: height), and RGB vertical stripe arrangement of pixels. Its display area size is 344.16 × 193.59 (width × height) mm, and its appearance size is 350.66 (width) × 216.15 (height) × 3.2 (thickness) mm. The surface treatment is matte, Hard coating (3H), The net weight of the product is 370g (Max.), and the appearance style is thin screen (PCBA flat, thickness ≤ 3.2mm). In terms of backlight, this product adopts a WLED side entry light source with a lifespan of 15K hours and includes an LED driver. B156HAK02.3 adopts eDP (2 Lanes) signal interface, with a total of 40 pins, connected by terminals, and a screen driving voltage of 3.3V (Typ.). Its typical vertical refresh rate Fv is 60Hz.
Packing & Shipping
Trading Process
FAQ
1.Can I purchase the products in 1 piece?
Yes,you can,but we do not recommend,because the shipping cost is very high.
2.What payment method can I use?
T/T is the best,we aslo accpet Paypal
3.When is the shipment?
Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment,
and will use third parties delivery services or delivered as clients request.
4.How long is the warranty period?
12 Months
5.How to do if there is a product quality problem?
Please contact the relevant sales as soon as possible.
