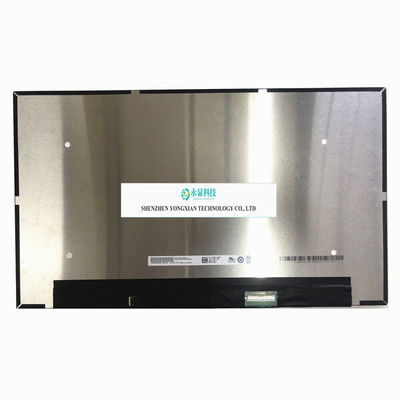

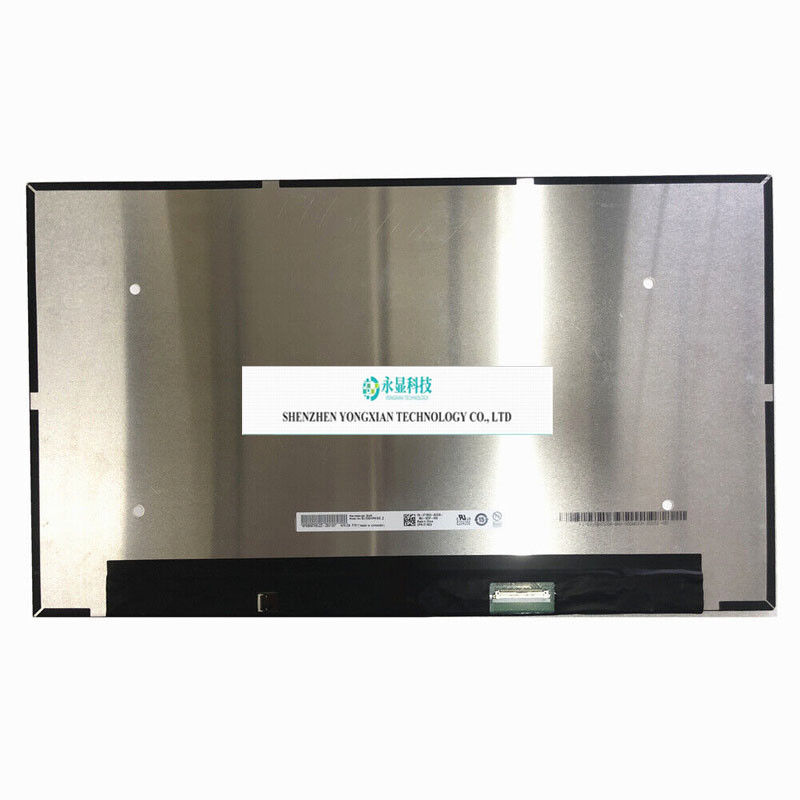

B156HAK02.2 fit NV156FHM-T05 LP156WFD SPH1 15.6 FHD IPS TOUCH LAPTOP
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | B156HAK02.2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 5 |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Brand: | AUO | Model: | B156HAK02.2 |
|---|---|---|---|
| Size: | 15.6 | Panel Type: | A-Si TFT-LCD,LCD Module |
| Resolution: | 1920(RGB)×1080, FHD, 141PPI | Pixel Layout: | RGB Vertical Stripe |
| Display Area: | 344.16(W)×193.59(H) Mm | Appearance Dimensions: | 350.66(W)×205.24(H)×5.6(D) Mm |
| Support Colors: | 262K , 45% NTSC | Surface Treatment Mirror: | Matte |
| Brightness: | 220 Cd/m² (Typ.) | Contrast Ratio: | 700:1 (Typ.) (TM) |
| Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) | Working Mode: | AHVA， Constant Black Display, Transmissive |
| Refresh Rate: | 60Hz | Touch Function: | On-Cell Touch, I²C |
| Appearance Style: | - | Panel Application: | Notebook Computer |
| Voltage: | 3.3V (Typ.) | Maximum Rating: | Storage Temperature:- 20~60 ° C Operating Temperature: 0 ~ 50 °C |
| Interface Type: | EDP (2 Lanes) , EDP1.2 , 40 Pins , Terminal, | ||
| Highlight: | 15.6 laptop screen,15.6 laptop lcd screen,fhd laptop screen |
||
Product Description
AUO launches B156HAK02.2 (product code: BOE22ED is a 15.6-inch LCD module product using a-Si TFT-LCD technology, equipped with WLED backlight and LED driver backlight driver, On-Cell Touch. Summarizing its typical features are: touch screen, white LED backlight, LED driver included, inverted terminals, and matte surface, eDP1.2. Its working temperature is 0-50 ° C, storage temperature is -20~60 ° C, and vibration resistance is 1.5G (14.7 m/s ²). This model is suitable for use in laptops. The screen library first established parameters for this model on December 4, 2019, and finally updated the parameters on July 30, 2024. According to the product specification document HW0A_Ver1.0 released by AU on October 15, 2019, B156HAK02.2 has a display resolution of 1920 (RGB) × 1080 (FHD), an aspect ratio of 16:9 (width: height), and RGB vertical stripe arrangement of pixels. Its display area size is 344.16 × 193.59 (width × height) mm, and its appearance size is 350.66 (width) × 205.24 (height) × 5.6 (thickness) mm. The surface treatment is matte, and the net weight of the product is 380g (Max.). In terms of backlight, this product adopts a WLED side entry light source with a lifespan of 15K hours and includes an LED driver. B156HAK02.2 adopts eDP (2 Lanes) signal interface, with a total of 40 pins, connected by terminals, and a screen driving voltage of 3.3V (Typ.). Its typical vertical refresh rate Fv is 60Hz.
Packing & Shipping
Trading Process
FAQ
1.Can I purchase the products in 1 piece?
Yes,you can,but we do not recommend,because the shipping cost is very high.
2.What payment method can I use?
T/T is the best,we aslo accpet Paypal
3.When is the shipment?
Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment,
and will use third parties delivery services or delivered as clients request.
4.How long is the warranty period?
12 Months
5.How to do if there is a product quality problem?
Please contact the relevant sales as soon as possible.
